Cigarette Lighter With Column Shift

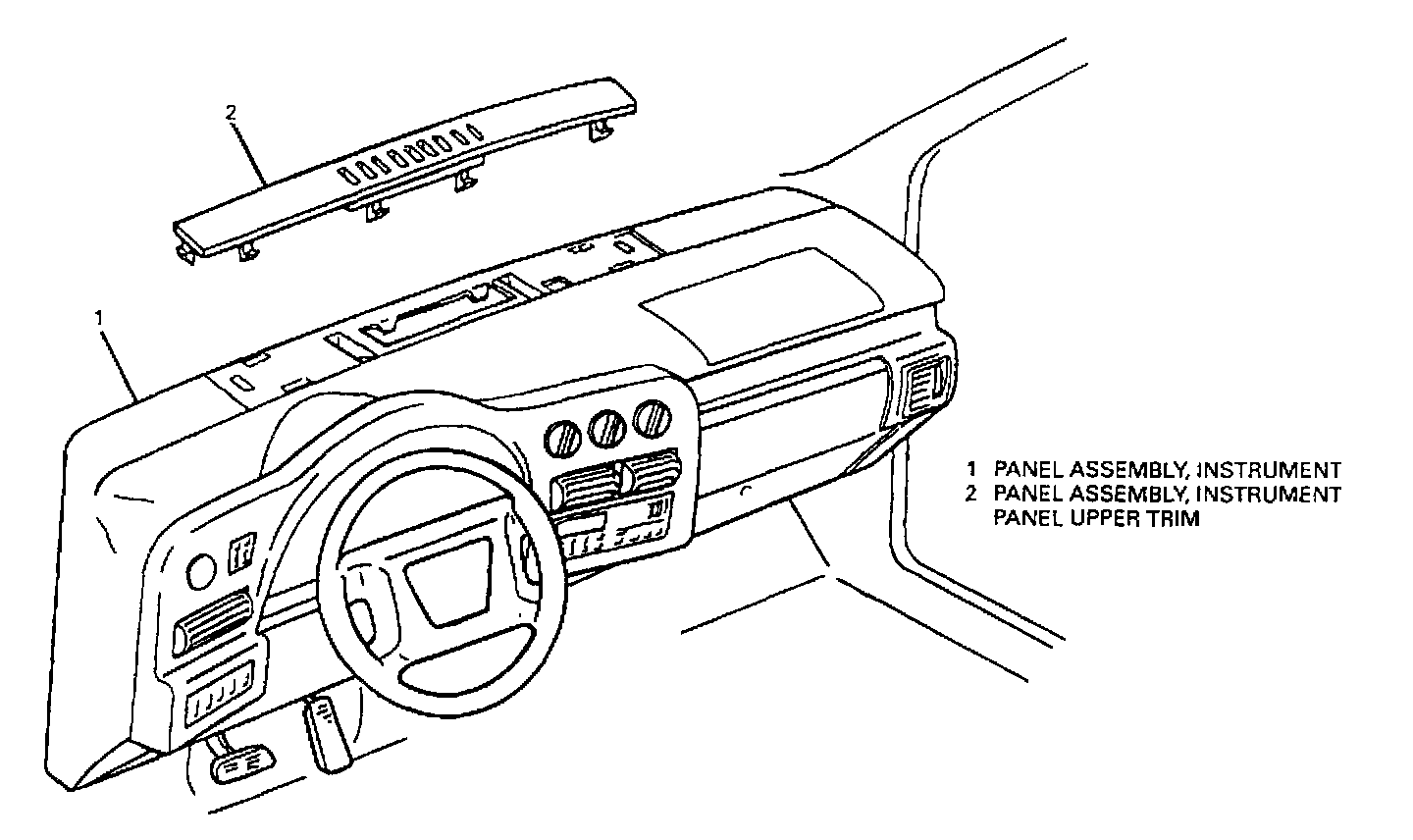

Instrument Panel Upper Trim Panel (Typical):

REMOVE OR DISCONNECT
1. Open instrument panel ashtray.
2. Electrical connector from cigarette lighter.
3. Cigarette lighter from instrument panel ashtray.

INSTALL OR CONNECT
1. Cigarette lighter to instrument panel ashtray.
2. Electrical connector to cigarette lighter.
3. Close instrument panel ashtray.
