Chart 1

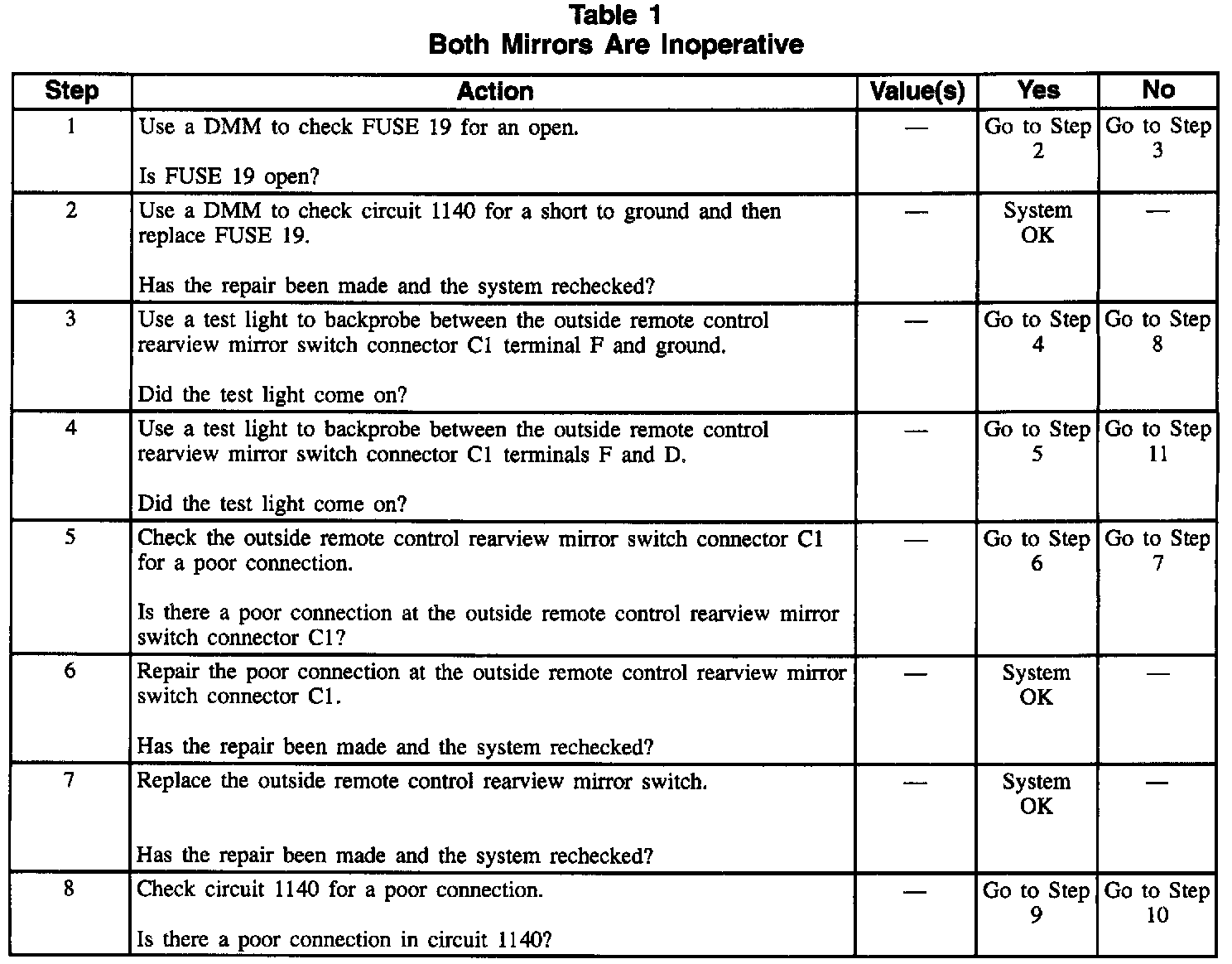

Table 1 Both Mirror Are Inoperative (Part 1 Of 2):

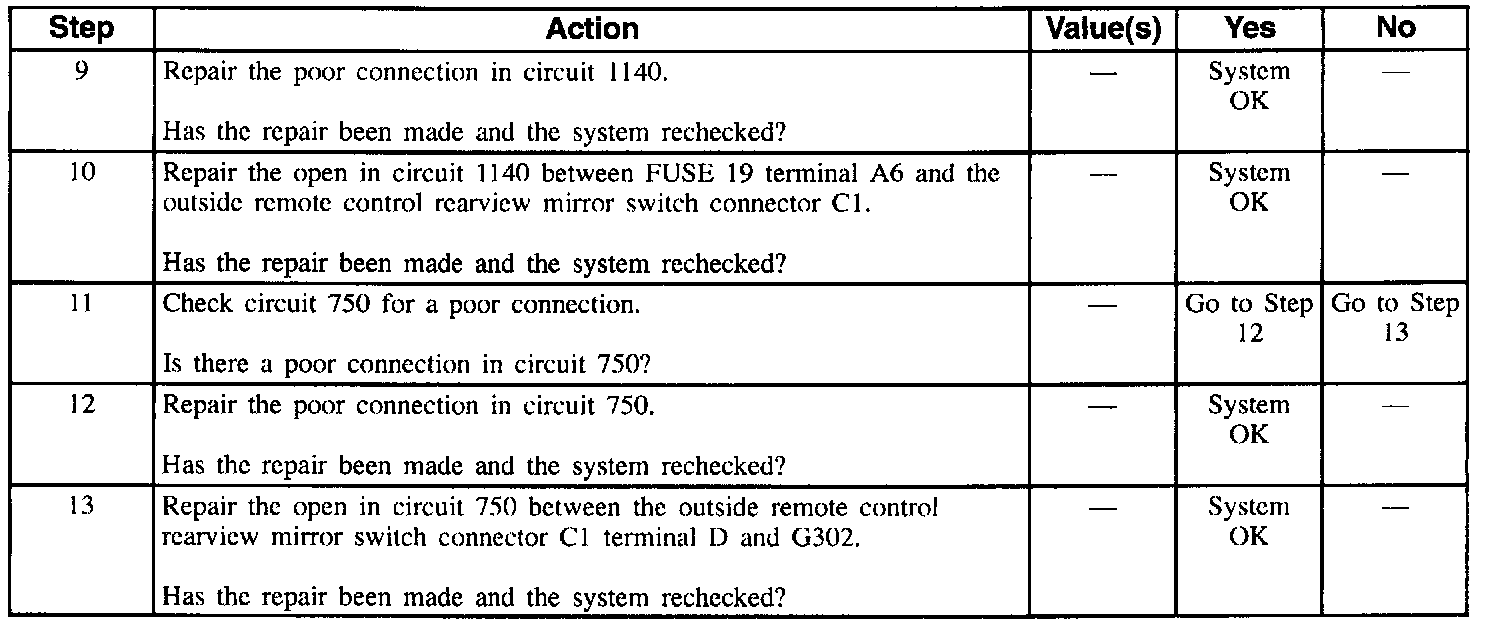

Table 1 Both Mirror Are Inoperative (Part 2 Of 2):
