Engine Block Heater Cord

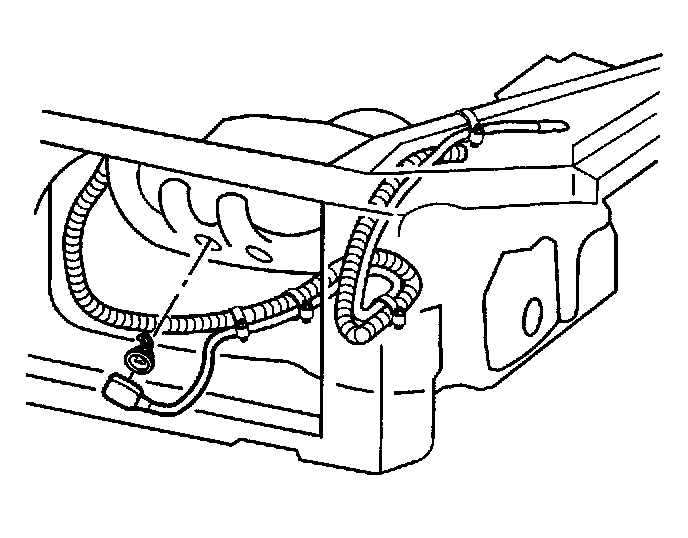

Engine Block Heater And Card Routing 3100 L82 (VIN M):

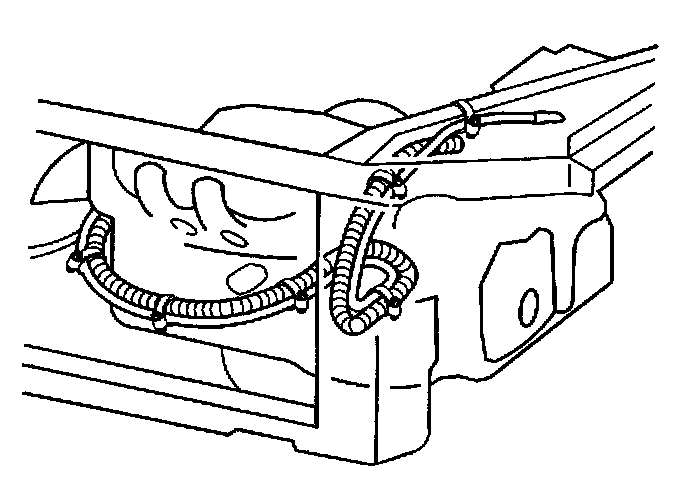

Engine Block Heater And Card Routing 3100 L82 (VIN M):

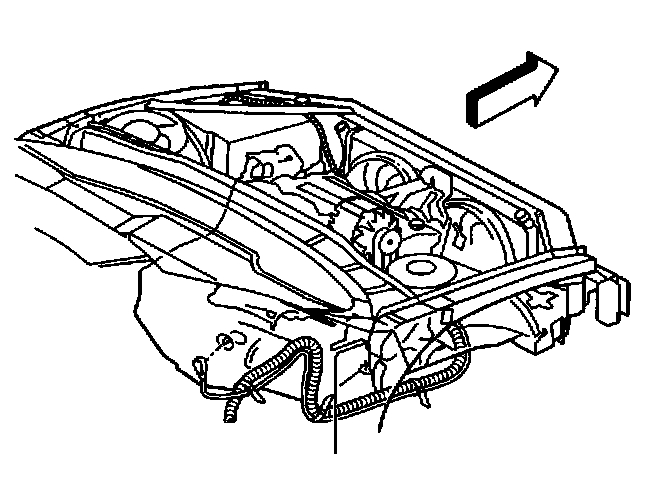

Engine Block Heater And Card Routing 3800 L36 (VIN K) And 3800 L67 (BIN 1):





CAUTION: Perform this operation only when the engine is cool or personal injury may result.

REMOVE OR DISCONNECT
1. Raise and suitably support vehicle.
2. Right front wheel with 3100 L82 (VIN M).
3. Right engine splash shield with 3100 L82 (VIN M).
4. Engine block heater cord from engine block heater.
5. Engine block heater cord from engine harness straps.
6. Engine block heater cord.

INSTALL OR CONNECT

CAUTION: Engine block heater cord must not contact engine, exhaust pipes, manifold or any moving parts or vehicle damage and/or personal injury may result.

1. Engine block heater cord.
2. Engine block heater cord to engine harness straps.
3. Engine block heater cord to engine block heater.
4. Right engine splash shield with 3100 L82 (VIN M).
5. Right front wheel with 3100 L82 (VIN M).
6. Lower vehicle.
