Circuit Breakers

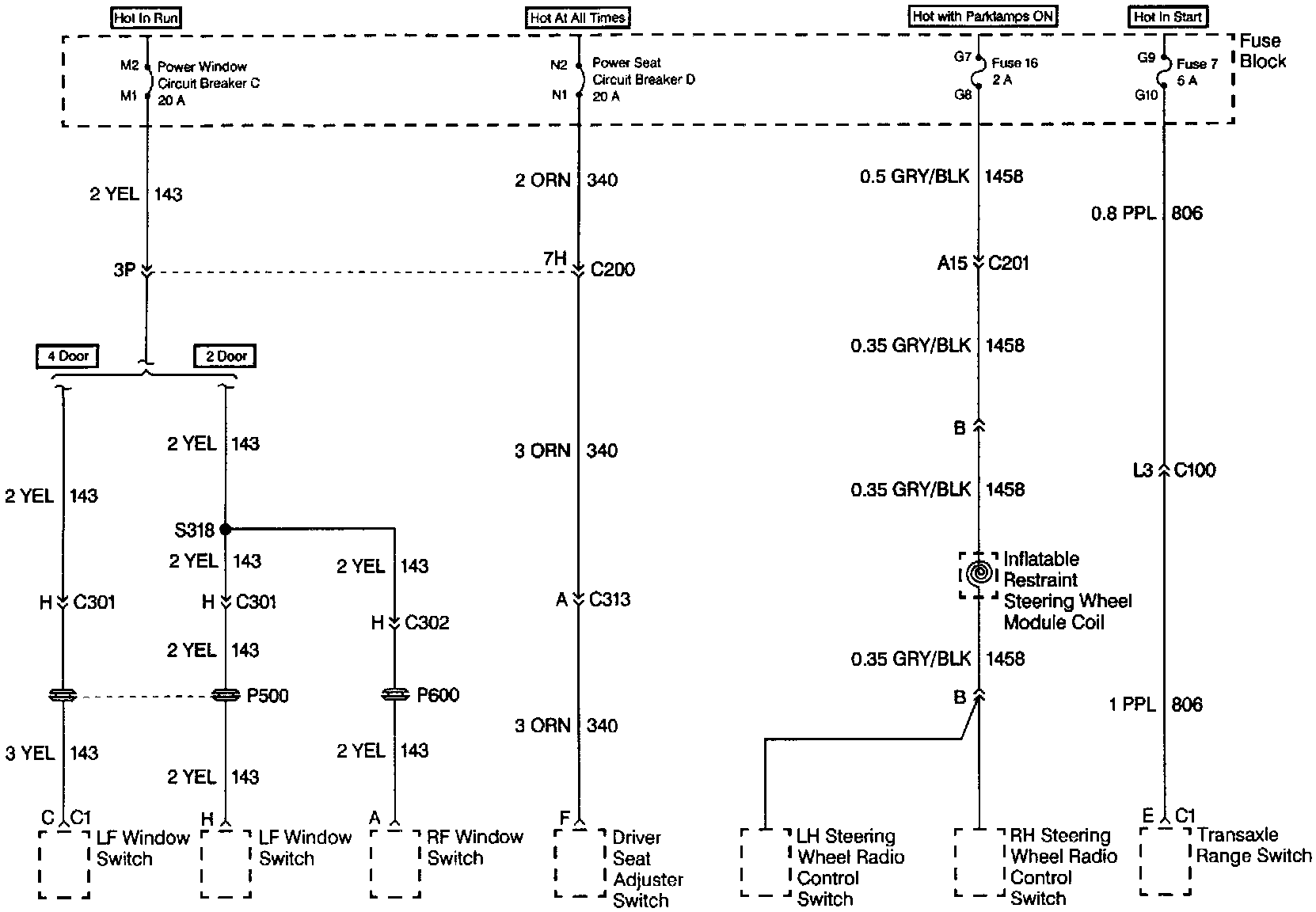

PWR Windows (C) & PWR Seats (D) Circuit Breakers, Transaxle Range SW (7) & Steering WHL Control (16) Fuses:
