Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 1998 >> Monte Carlo V6-3.8L VIN K >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> F/INJN, PCM IGN And ELEK IGN Fuses

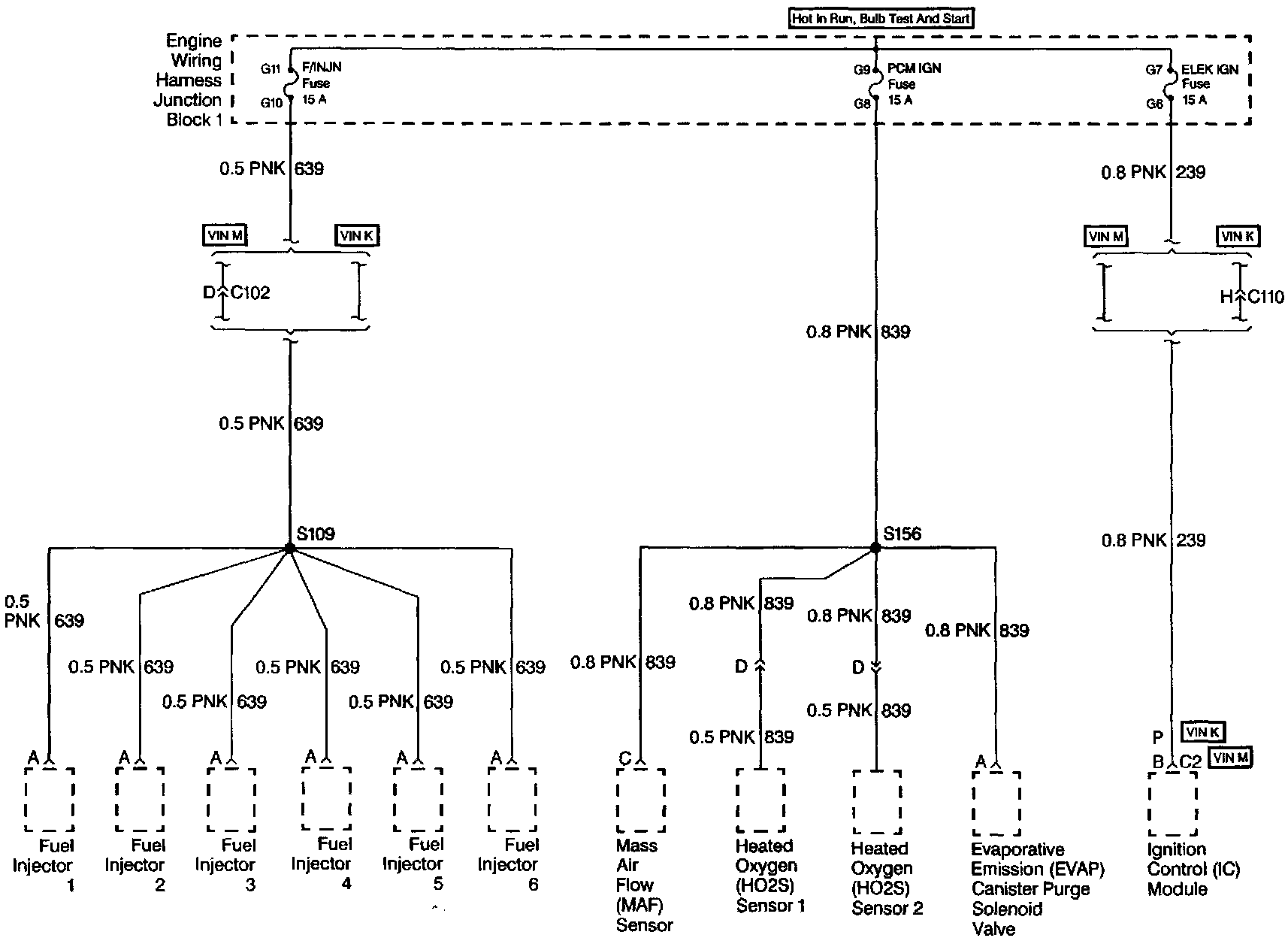

F/INJN, PCM IGN And ELEK IGN Fuses

F/INJN, PCM IGN And ELEK IGN Fuses:
