Camshaft Specifications

Important: The top intake camshaft housing bolts are tightened to a different specification than the other camshaft housing bolts.





Tighten the camshaft housing to cylinder head bolts to 20 Nm (15 ft. lbs.) + 90°.

Tighten the camshaft housing cover to camshaft housing bolts to 15 Nm (11 ft. lbs.) + 30°.

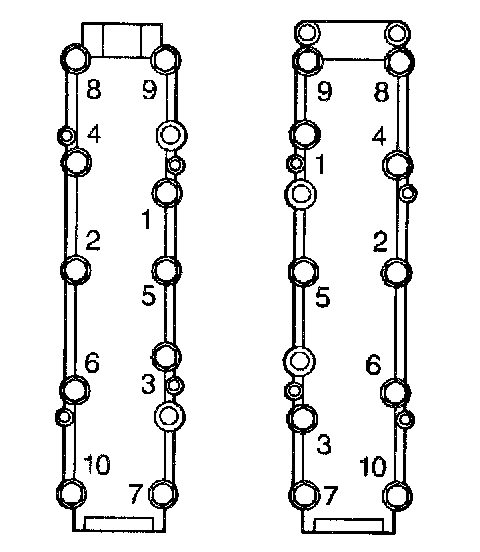

Rotate the bolts the amount of degrees specified in sequence.
