Home >> Chevrolet >> 1999 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C275

C275

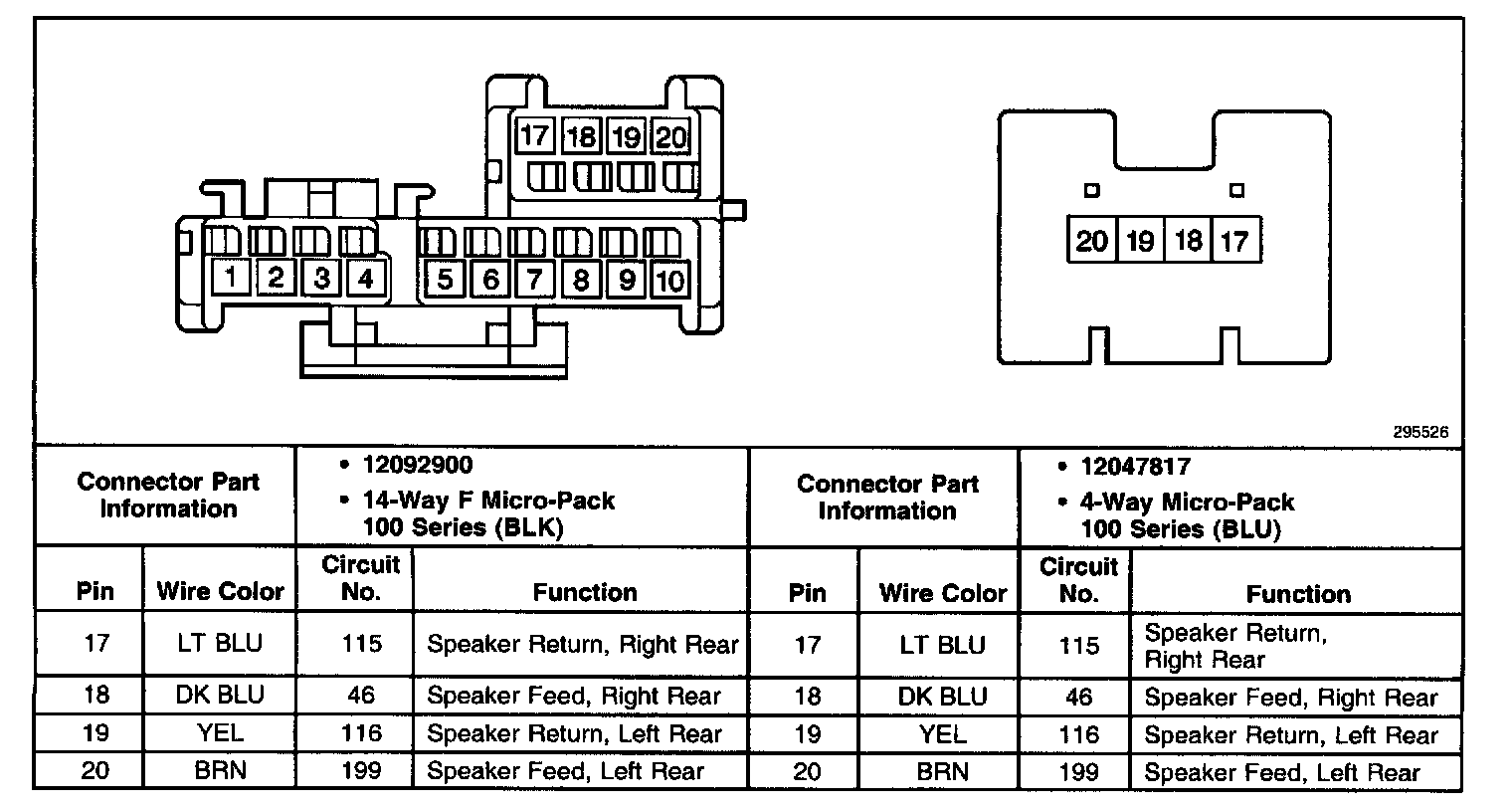

C275 (Part 1 Of 3):

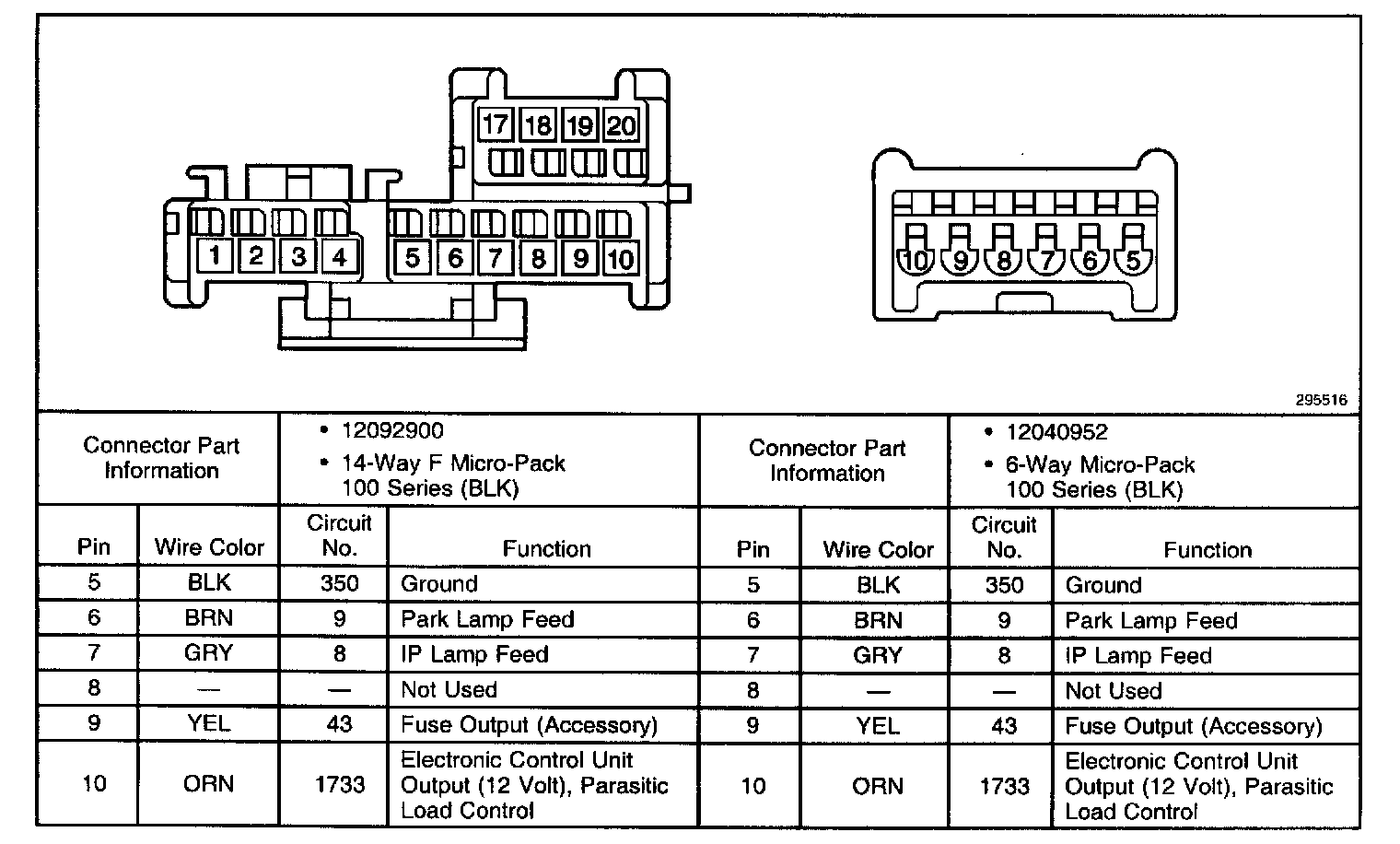

C275 (Part 2 Of 3):

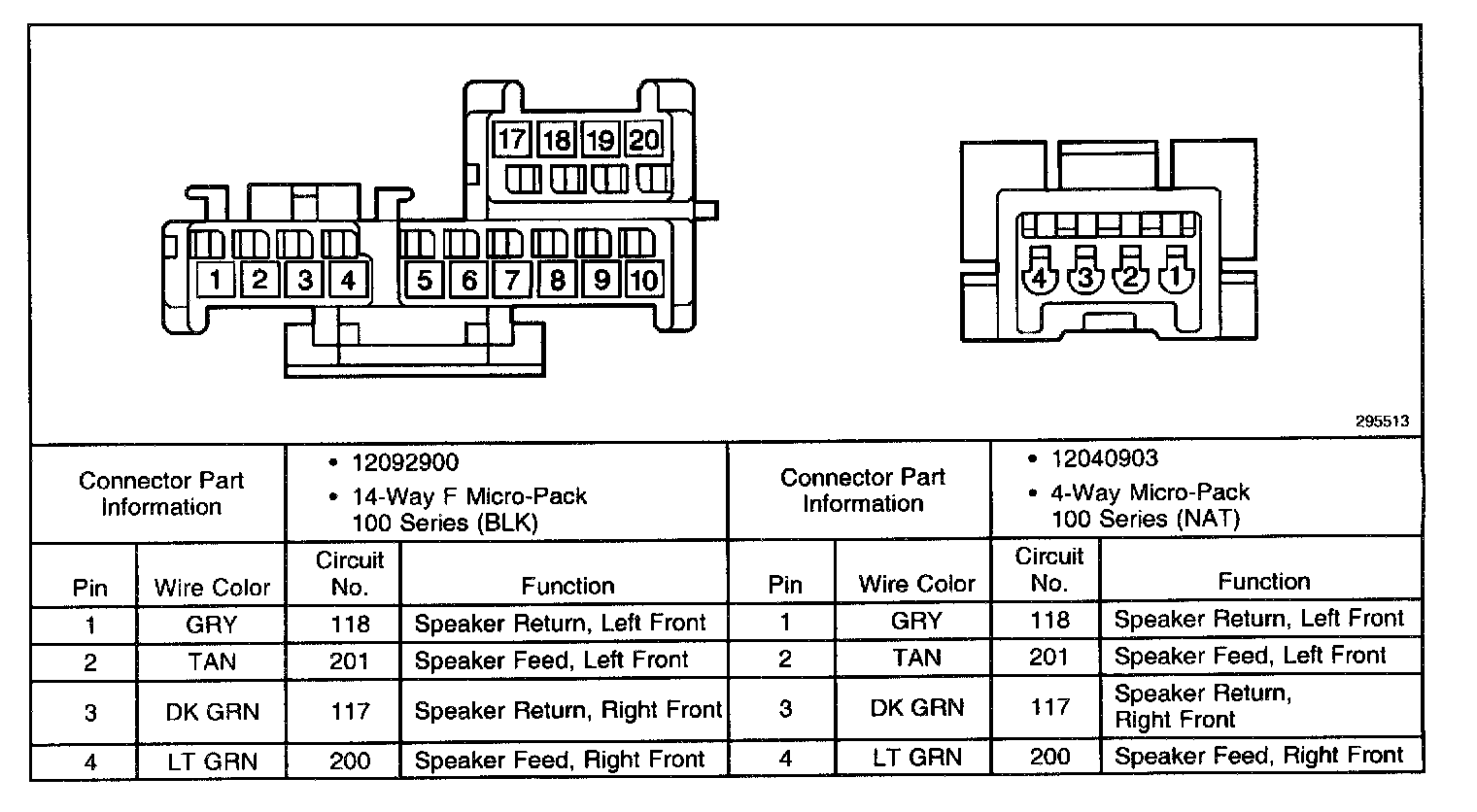

C275 (Part 3 Of 3):
