Ignition Switch

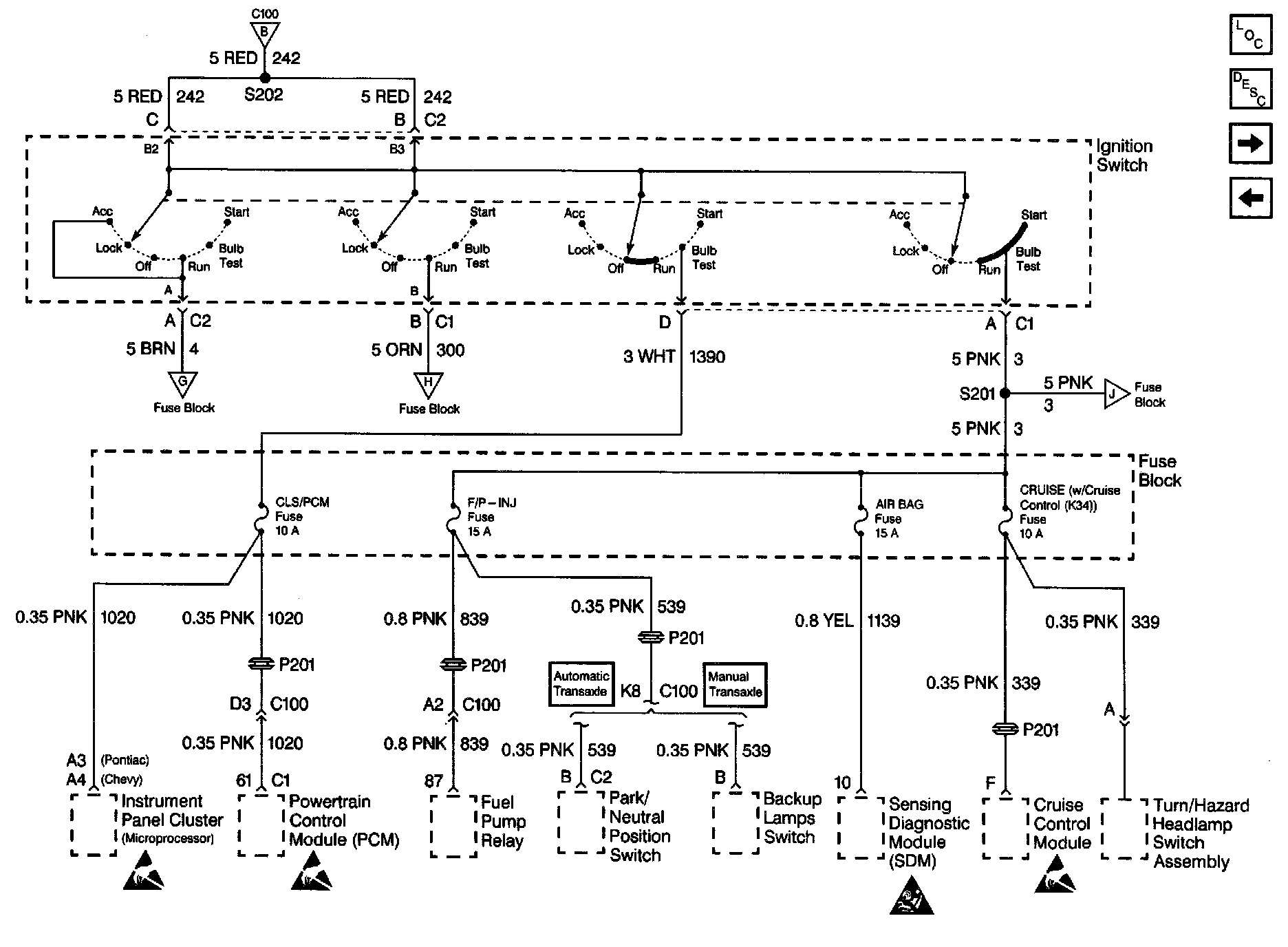

Power Distribution Schematics: CLS/PCM, F/P Inj, Air Bag And Cruise Fuses:



Theft Deterrent System Schematics: Passlock Lock Cylinder:
