High Mounted Stoplamp Replacement

REMOVAL PROCEDURE

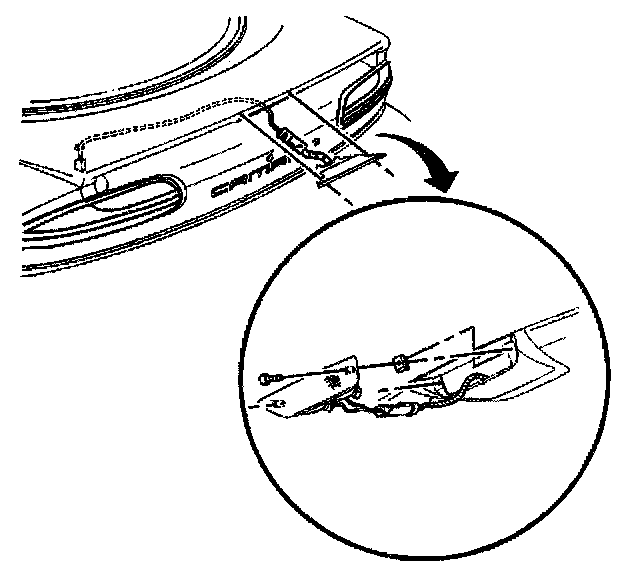

1. Remove the high mount stoplamp screws.
2. Remove the liftgate window trim panel.

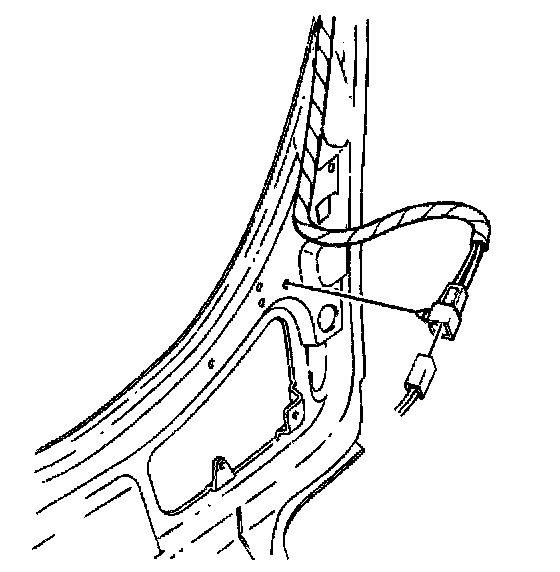

3. Disconnect the high mount stoplamp connector from the electrical harness.




4. Remove the high mount stoplamp from the rear end spoiler.

INSTALLATION PROCEDURE




1. Install the high mount stoplamp to the rear end spoiler.




2. Connect the high mount stoplamp connector to electrical harness.
3. Install foam tape around the connector.

NOTE: Refer to Fastener Notice in Service Precautions.




4. Install the high mount stoplamp screws.
