Power Steering Pump Replacement

Removal Procedure





1. Remove the drive belt from the power steering pump.
2. Remove the power steering hoses from the power steering pump. Refer to Power Steering Pressure Hose Replacement and Power Steering Return Hose Replacement.

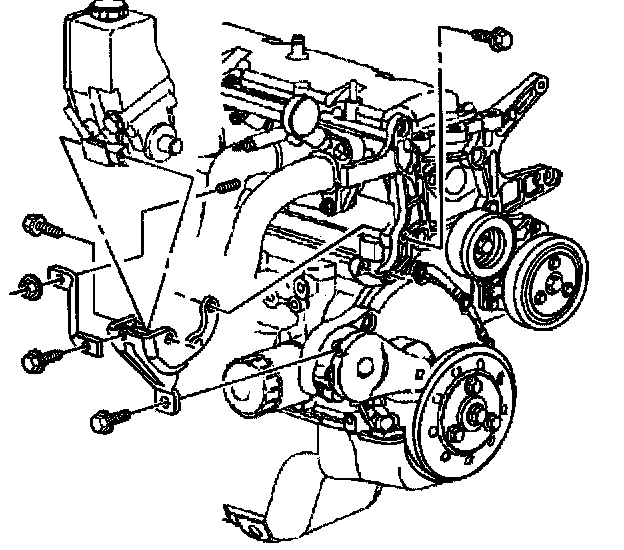

3. Remove the power steering pump mounting bolts from the power steering pump.
4. Remove the power steering pump from the engine.

Installation Procedure





1. Install the power steering pump to the engine.

Notice: Refer to Fastener Notice in Service Precautions.

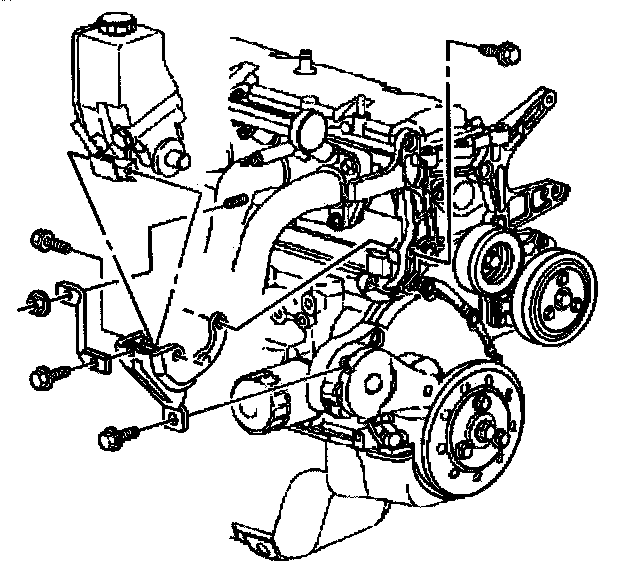

2. Install the power steering pump mounting bolts.
- Tighten the mounting bolts to 30 Nm (22 ft. lbs.).
3. Install the power steering hoses to the power steering pump. Refer to Power Steering Pressure Hose Replacement and Power Steering Return Hose Replacement.
4. Install the drive belt to the power steering pump.
5. Bleed the power steering system. Refer to Bleeding Power Steering System.
