Suspension Control Switch Input
Suspension Control Switch Input

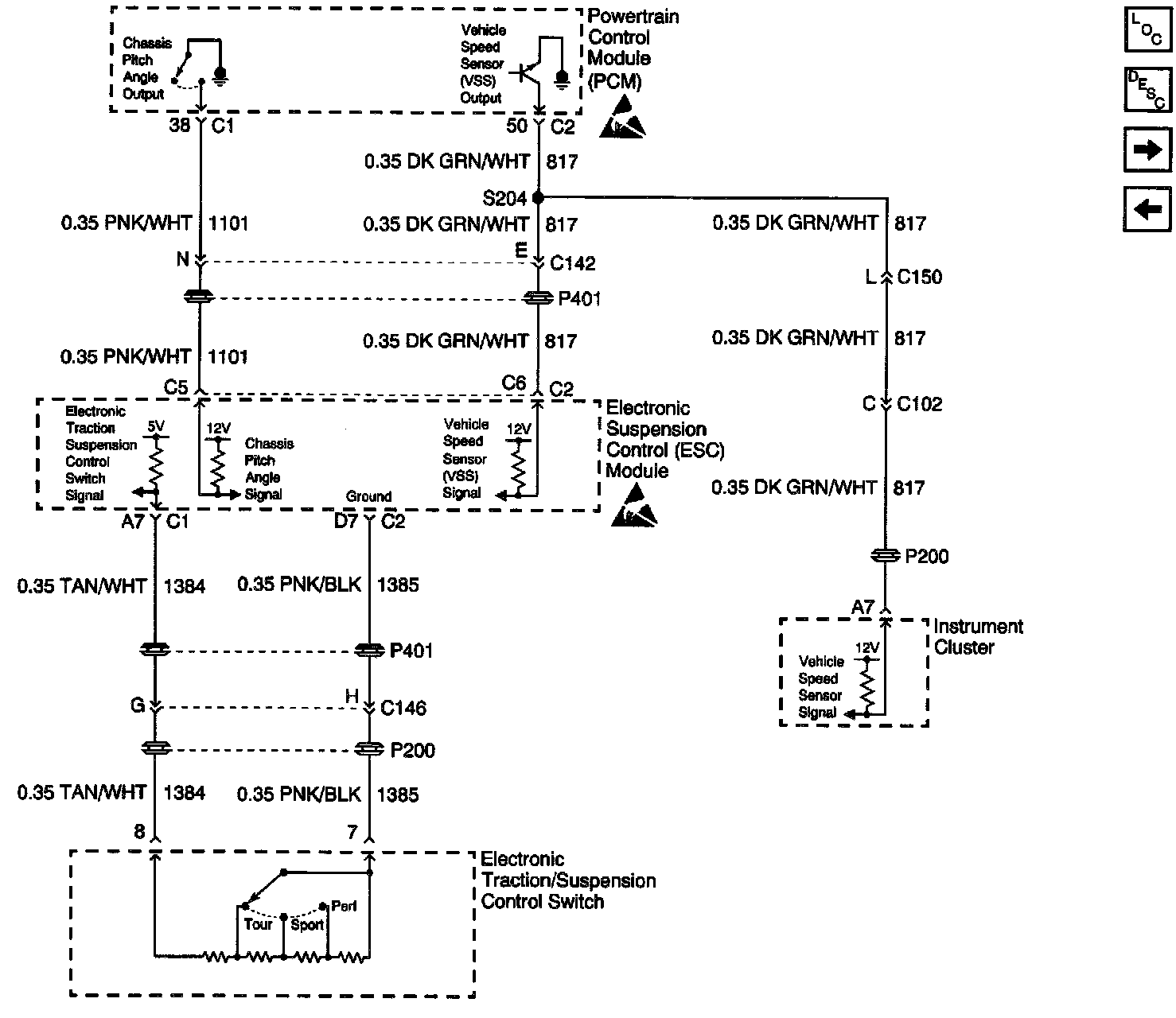

Suspension Controls Schematics: Suspension Control Switch Input:
