Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C100 - C199
>>
C120
C120

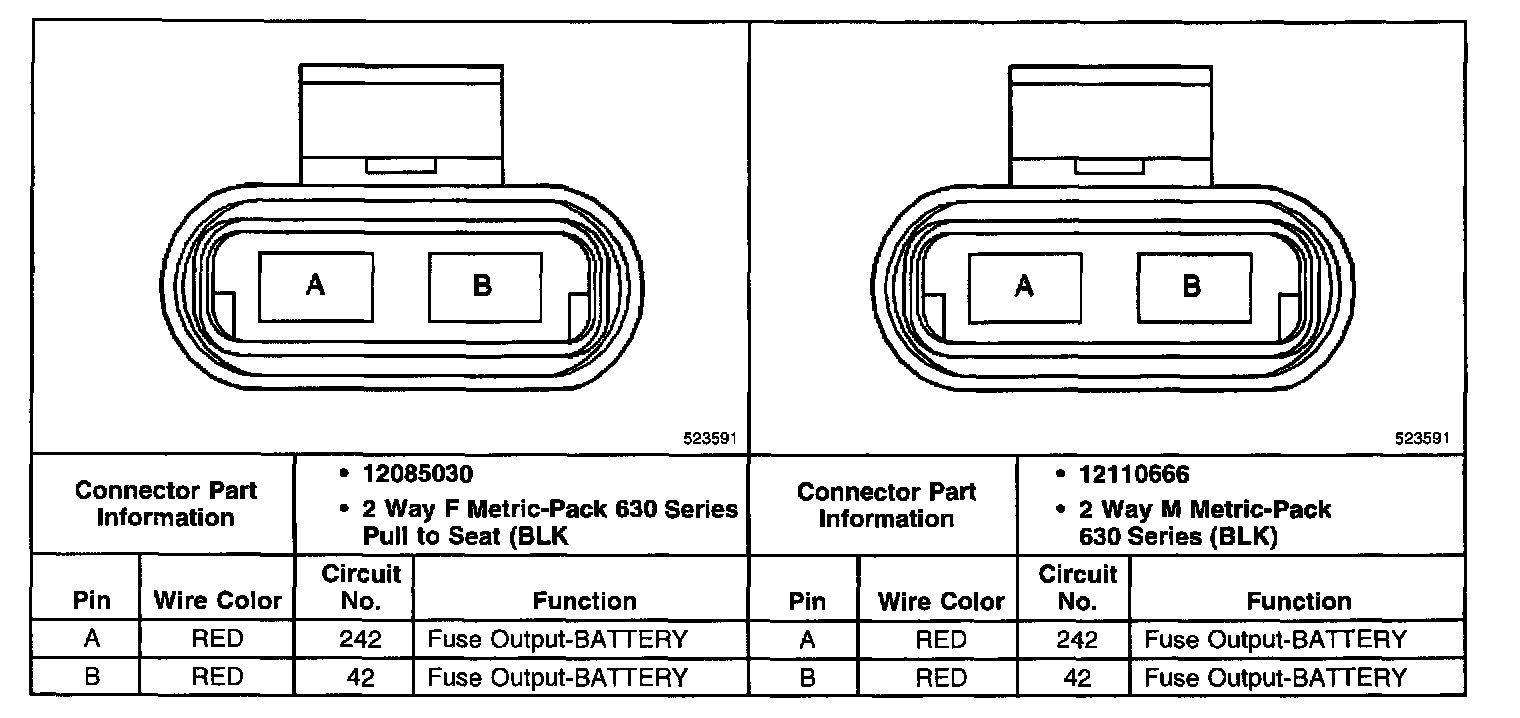

Inline Connector C120:
