Console Replacement

Console Replacement

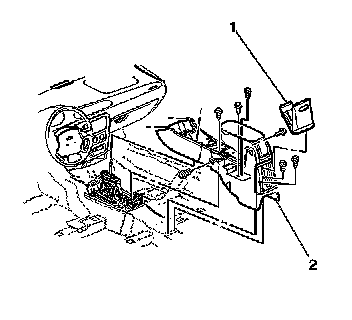

Removal Procedure

1. Remove the front seats.
2. Remove the console trim plate.




3. Remove the rear cupholder (1).
4. Remove the screws.
5. Place gear select in the neutral position.
Remove the console (2).

Installation Procedure




1. Install the console (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screws.

Tighten the screws to 2 N.m (18 lb in).

3. Install the rear cupholder (1).
4. Install the console trim plate.
5. Install the front seats.
