Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Underhood Junction Block C1
Underhood Junction Block C1

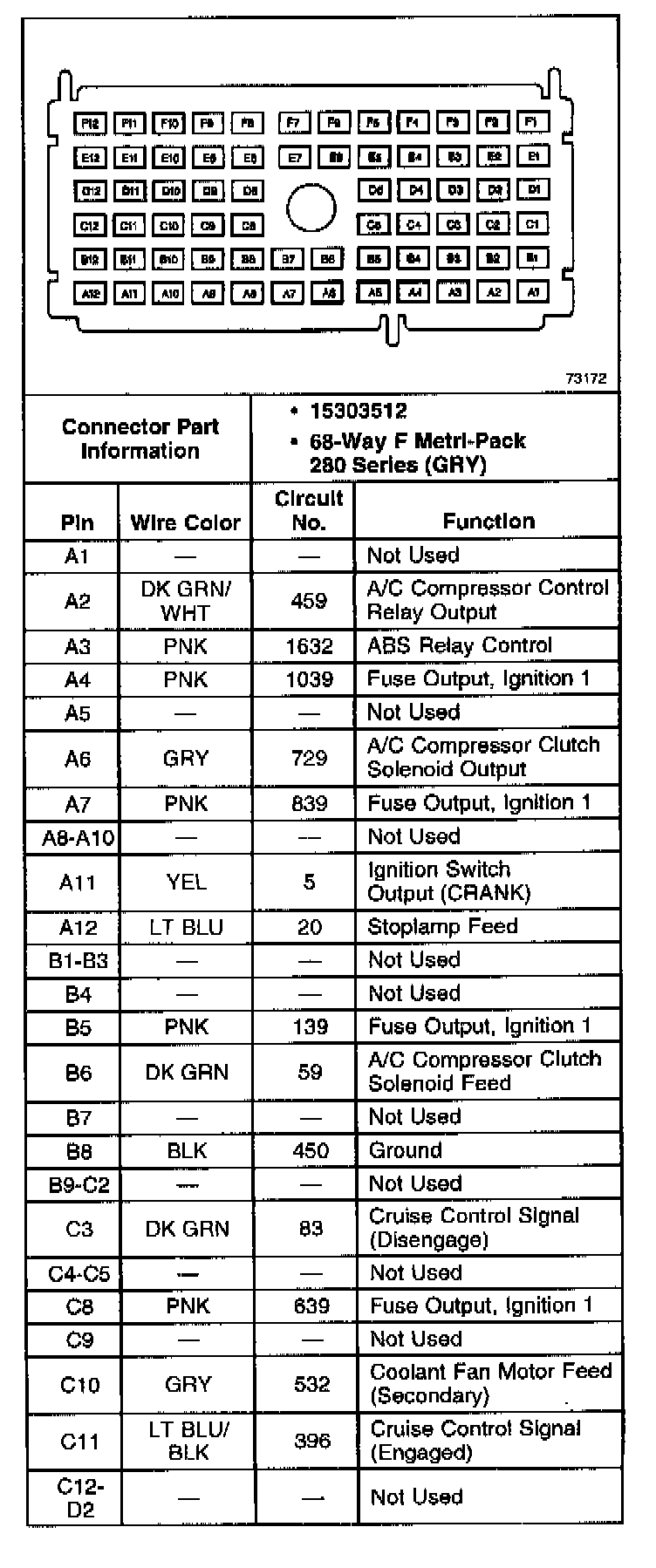

Underhood Junction Block C1 (Part 1 Of 2):

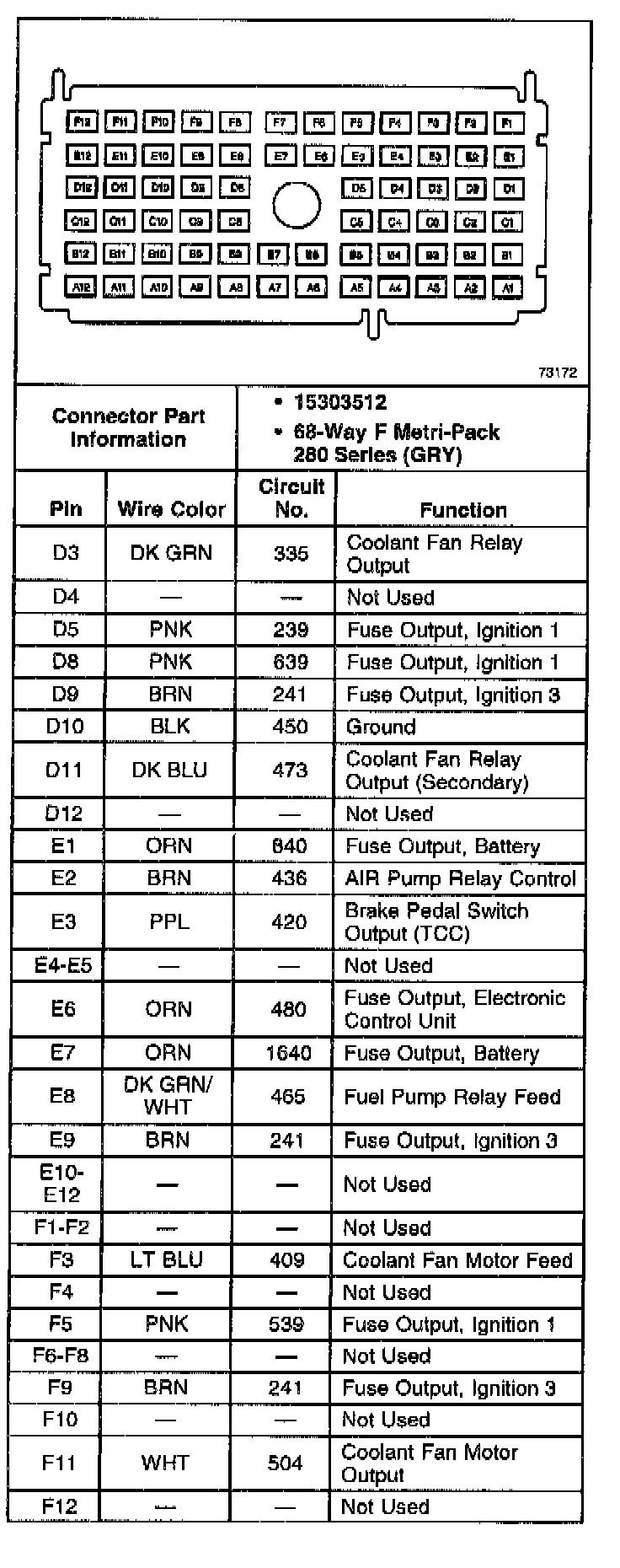

Underhood Junction Block C1 (Part 2 of 2):
