Harness

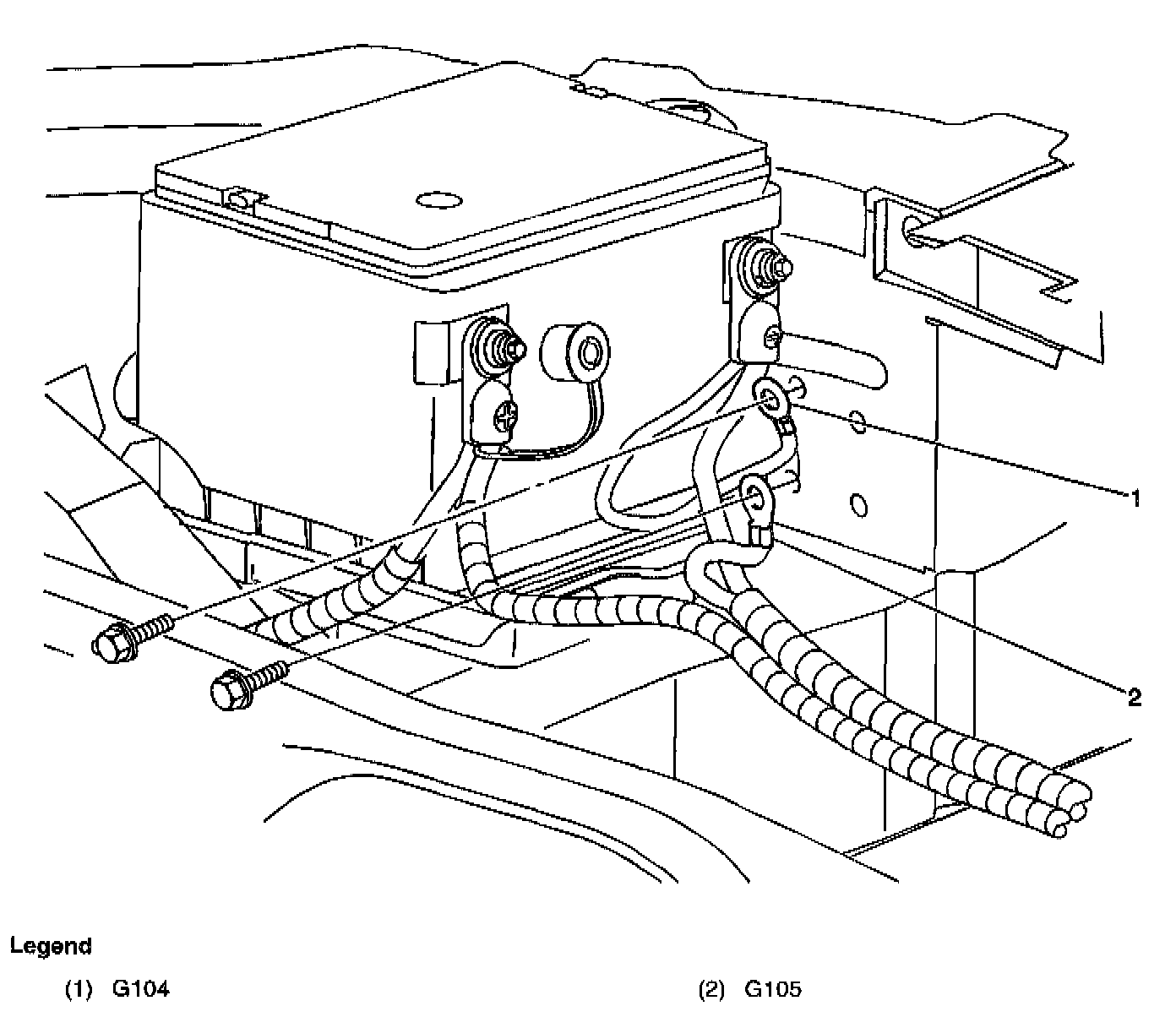

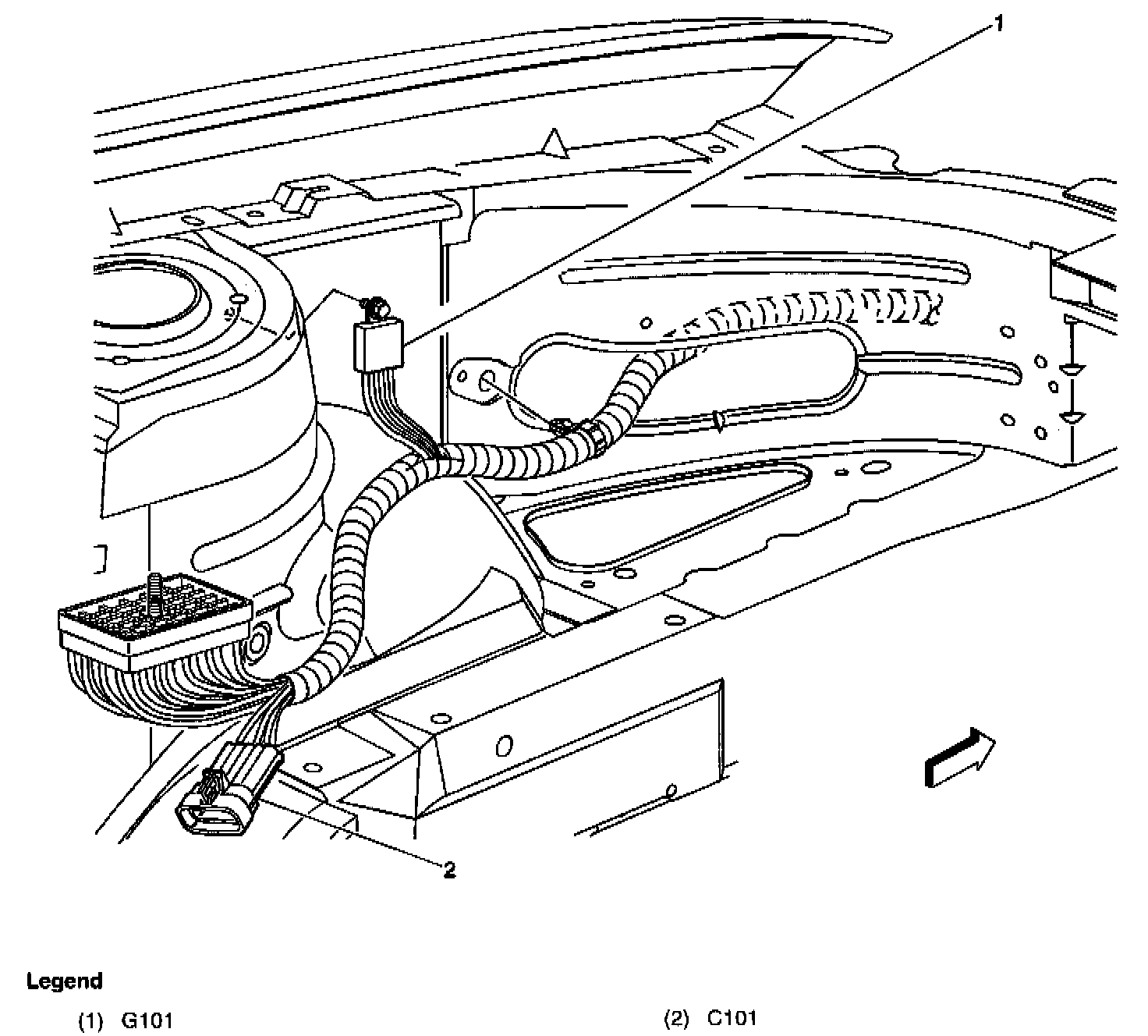

Harness Routing Views (Left Side of the Engine Compartment):

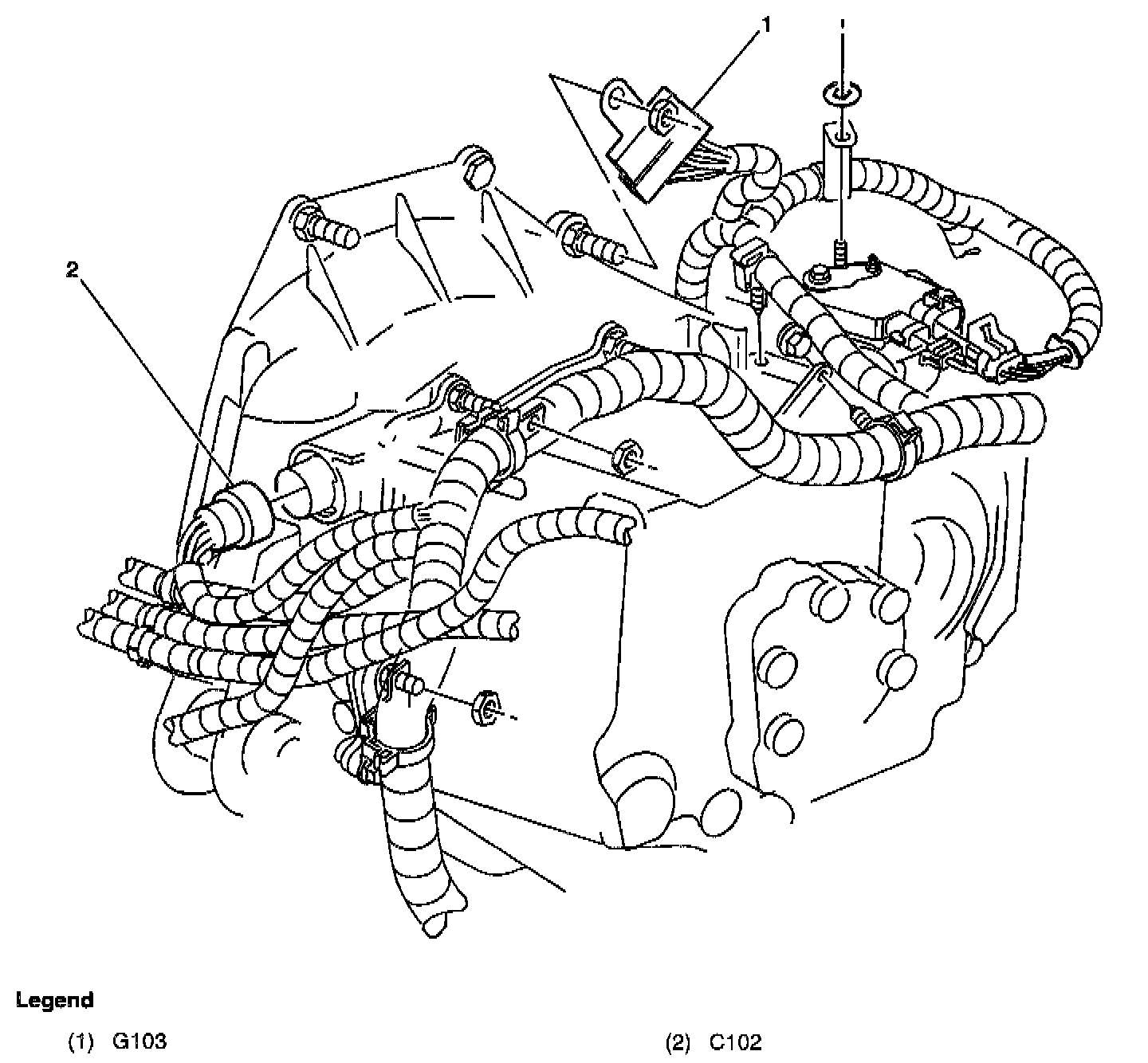

Harness Routing Views (Left Side of Engine):

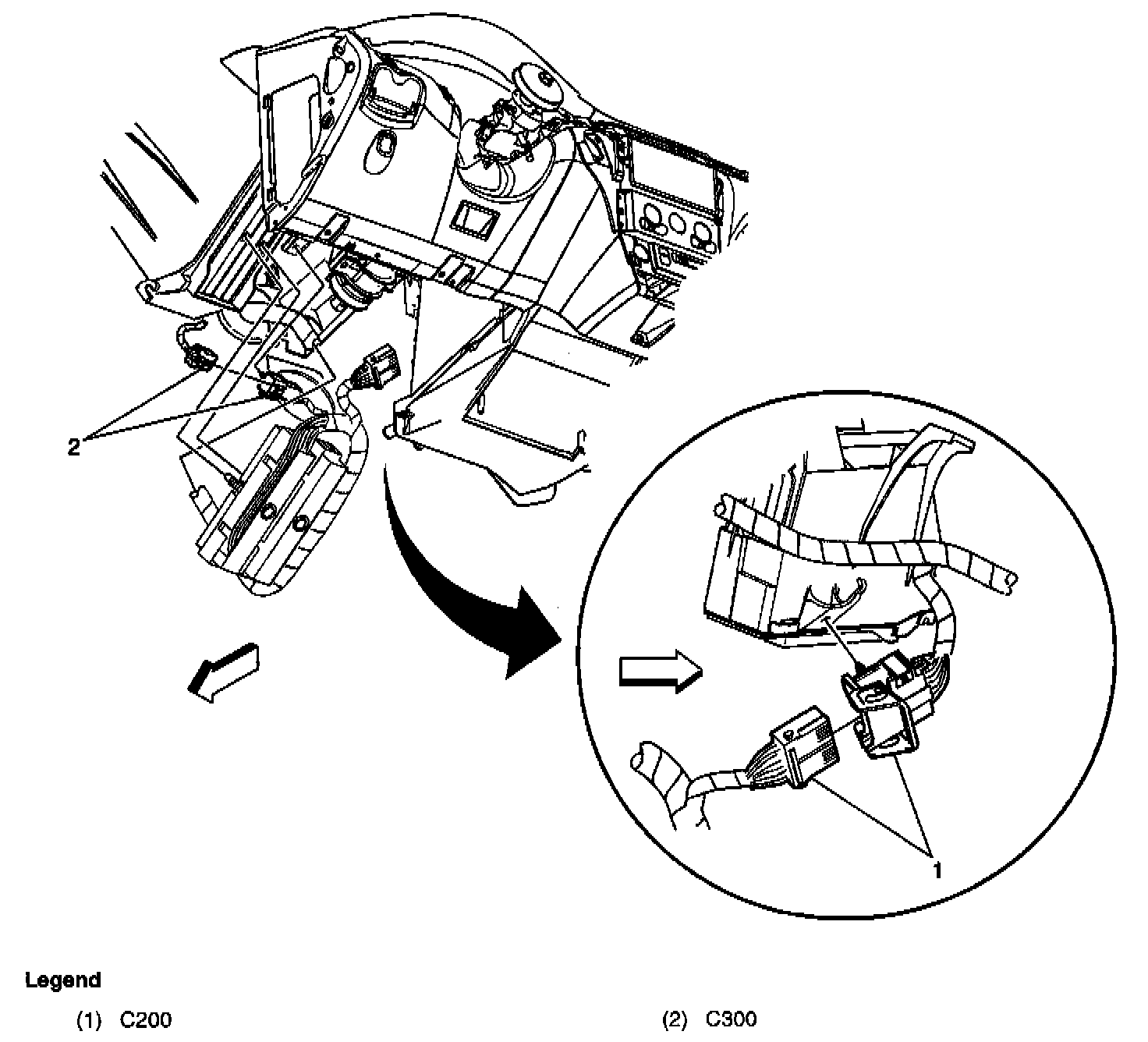

Harness Routing Views (Below the Left Side of the IP, Near the Steering Column):

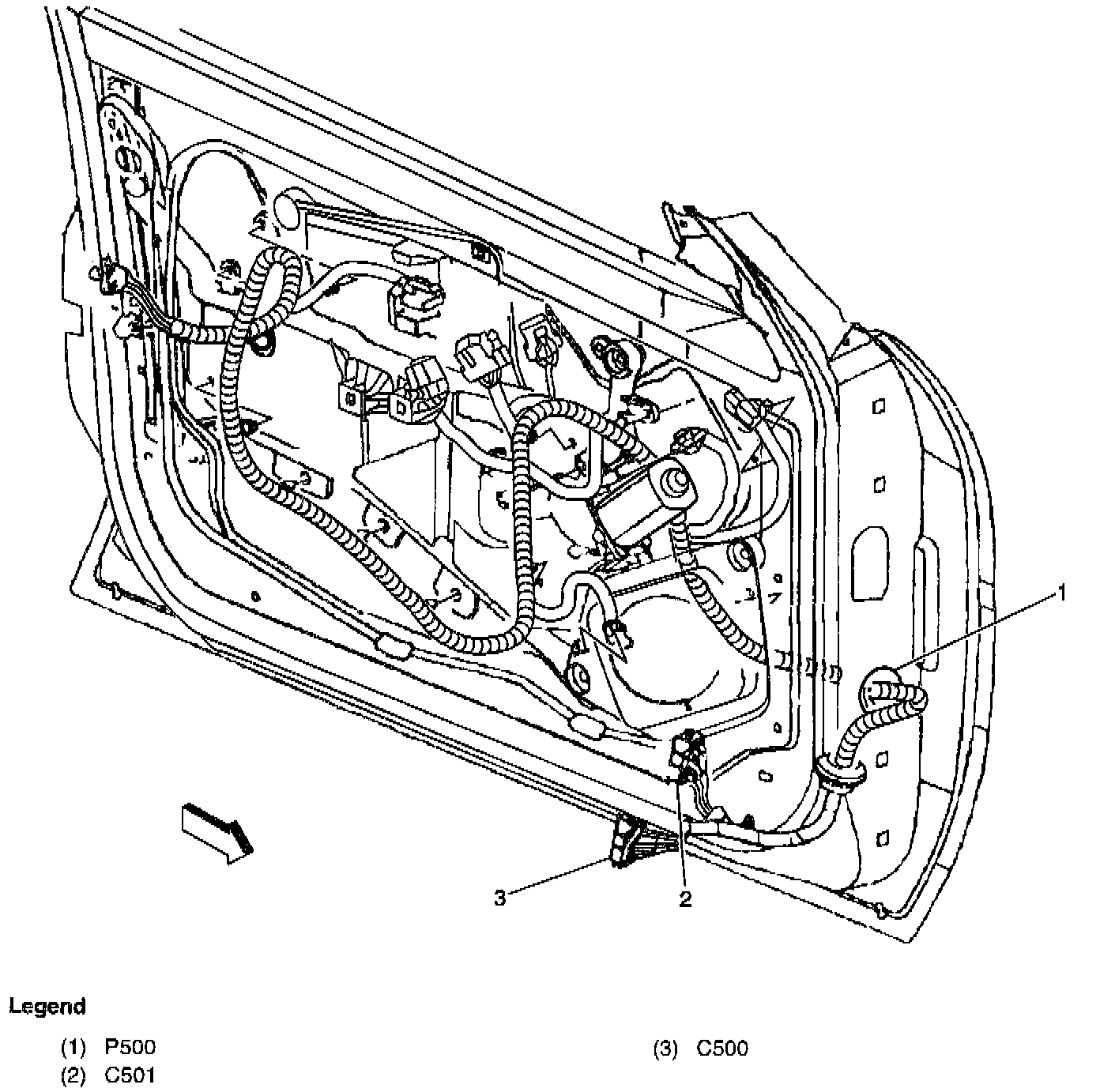

Harness Routing Views (Left Door):

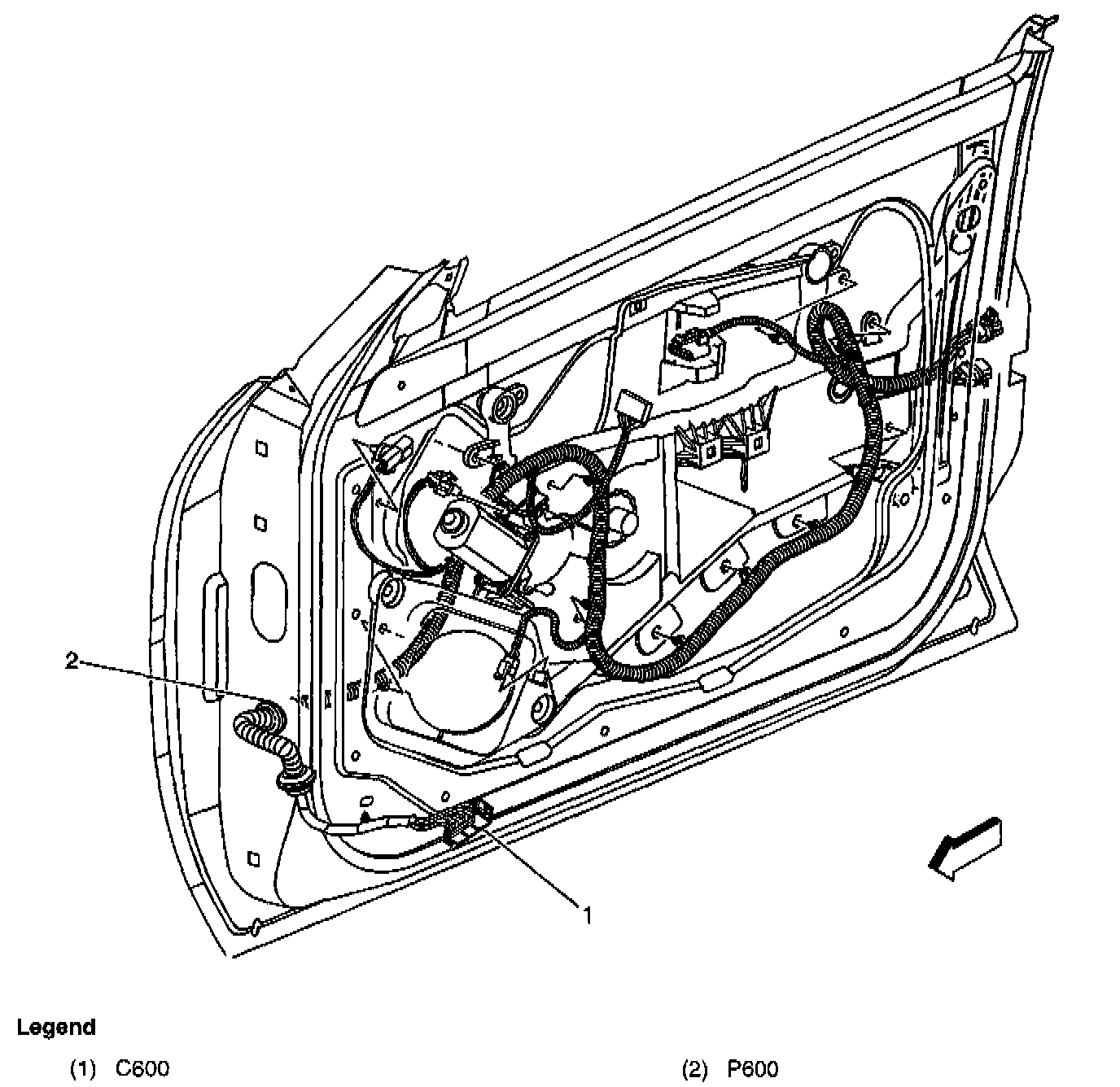

Harness Routing Views (Right Door):

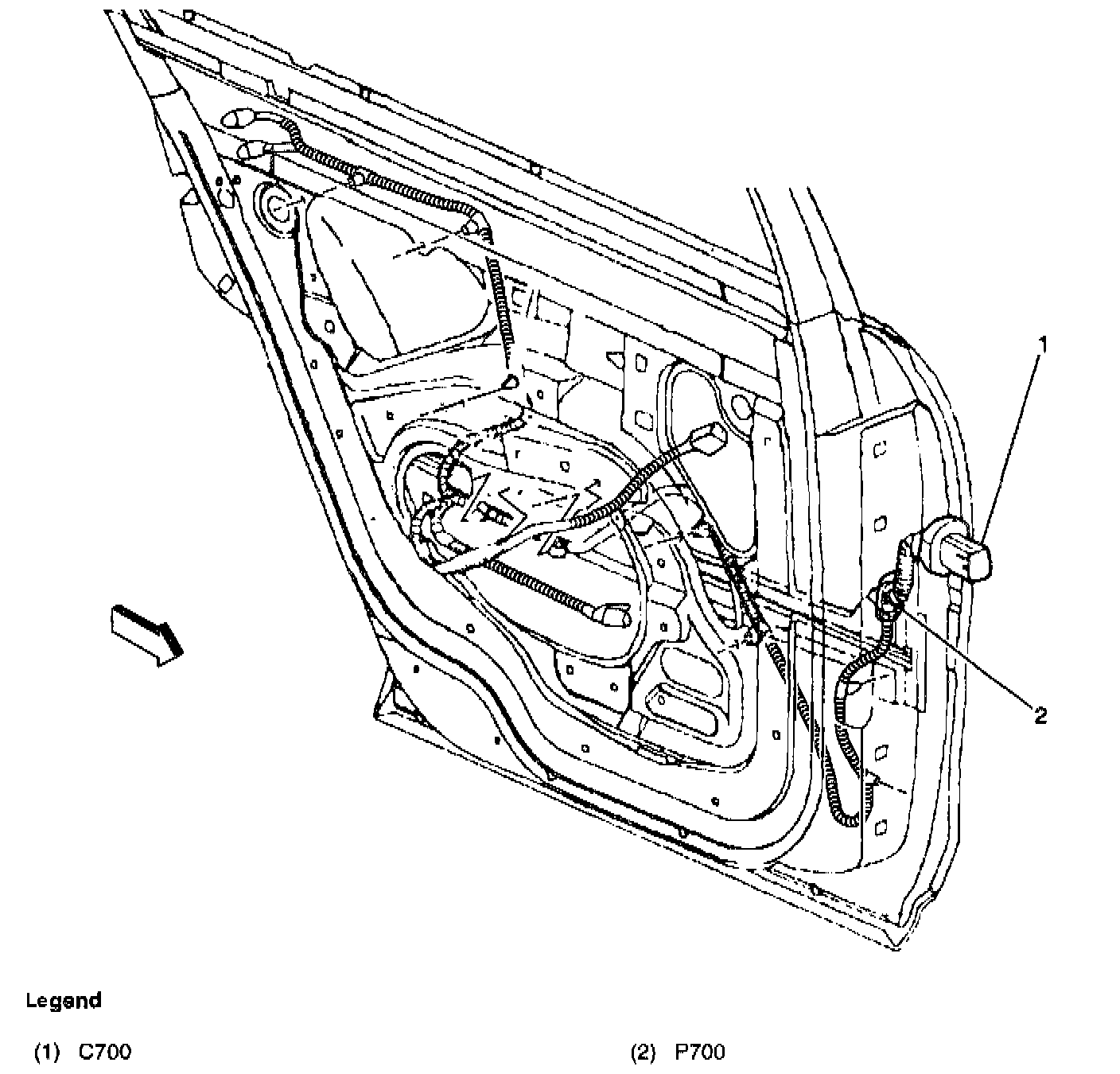

Harness Routing Views (Left Rear Door (The Right Rear Door is Similar)):

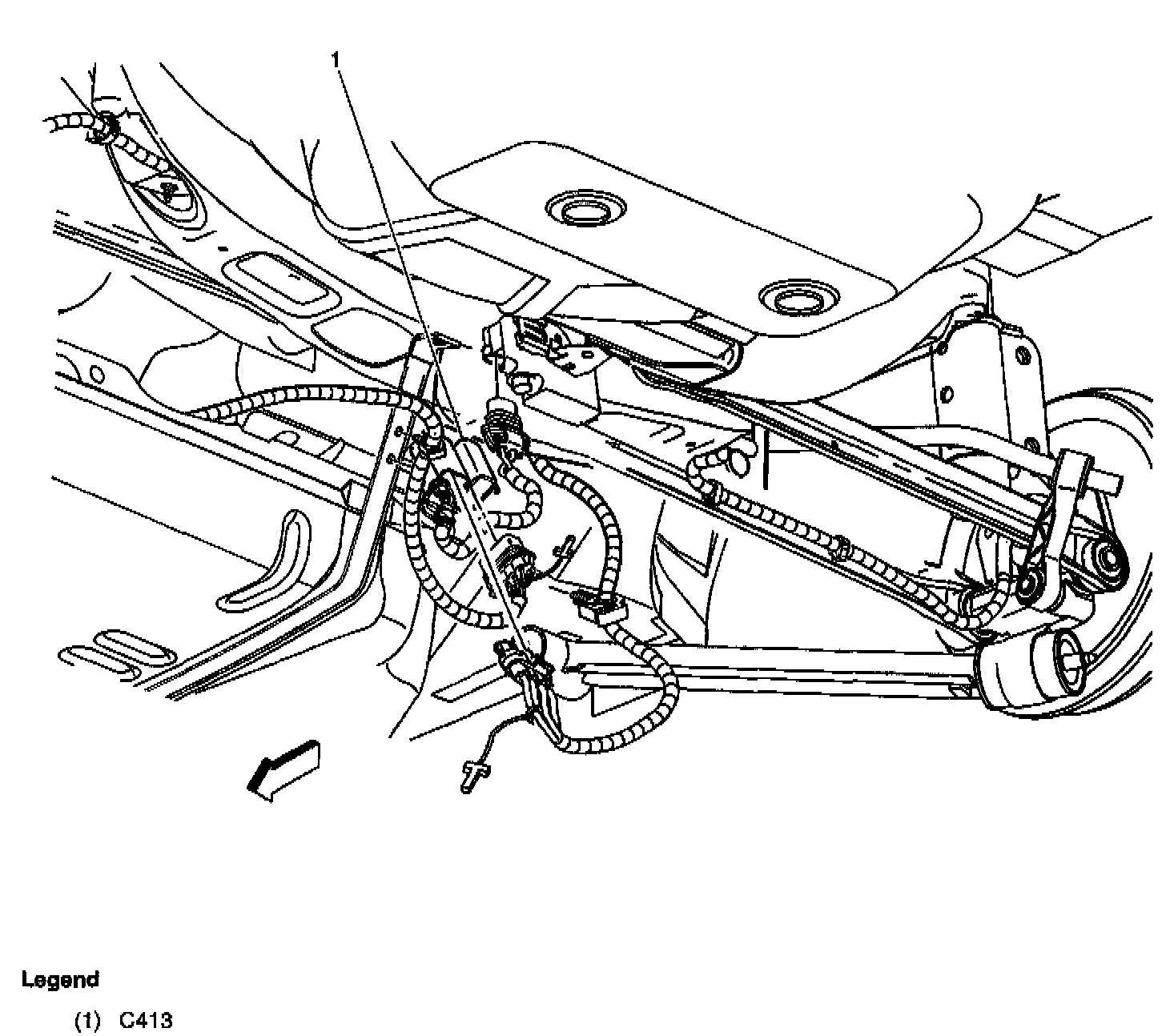

Harness Routing Views (Under the Rear of the Vehicle):

Harness Routing Views (Left Side of Engine Compartment):

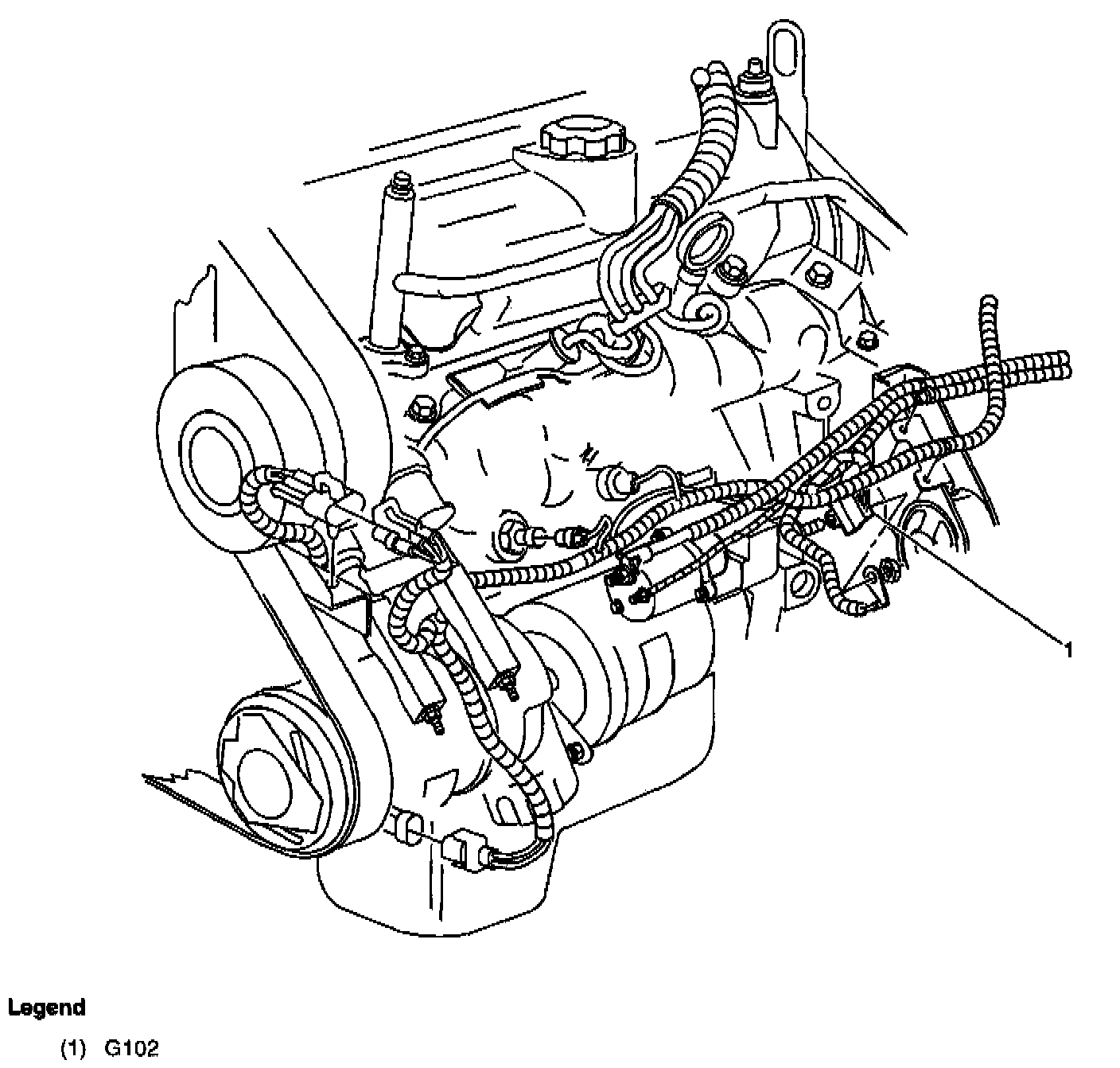

Harness Routing Views (Front of Engine (L82)):

Harness Routing Views (Right Side of the Passenger Compartment, Rear Package Shelf):

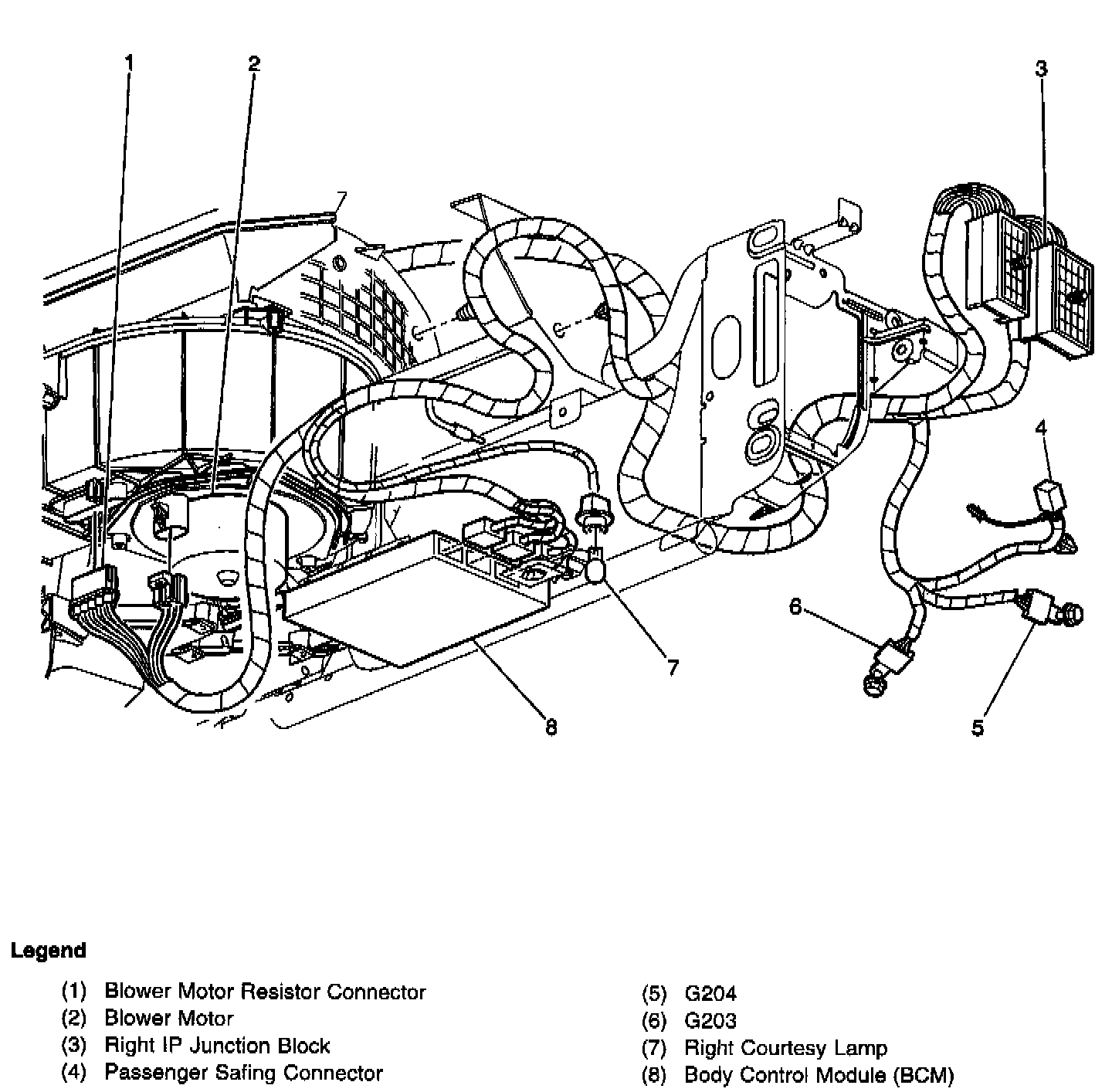

Harness Routing Views (Under the Right Side of the Instrument Panel):

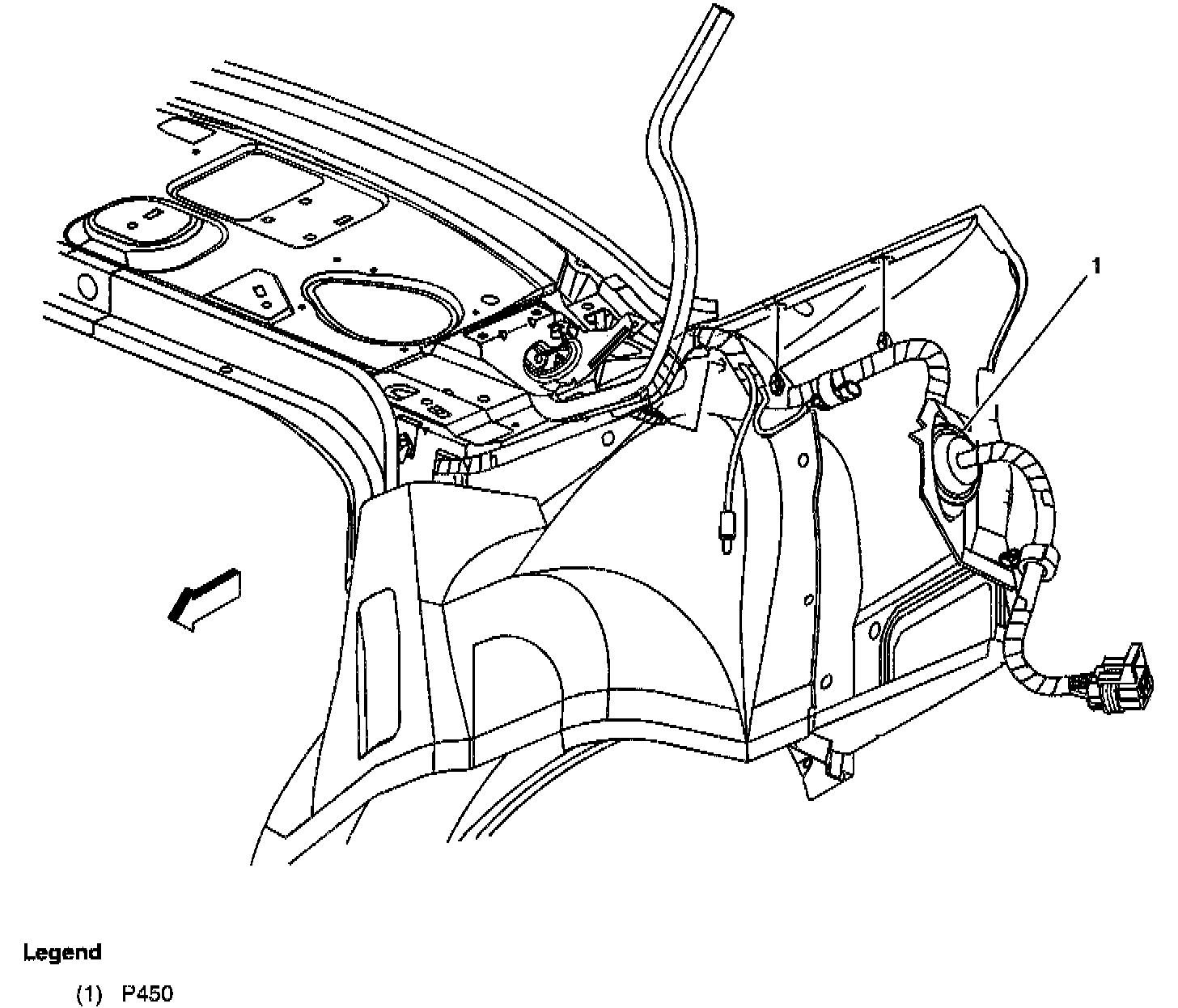

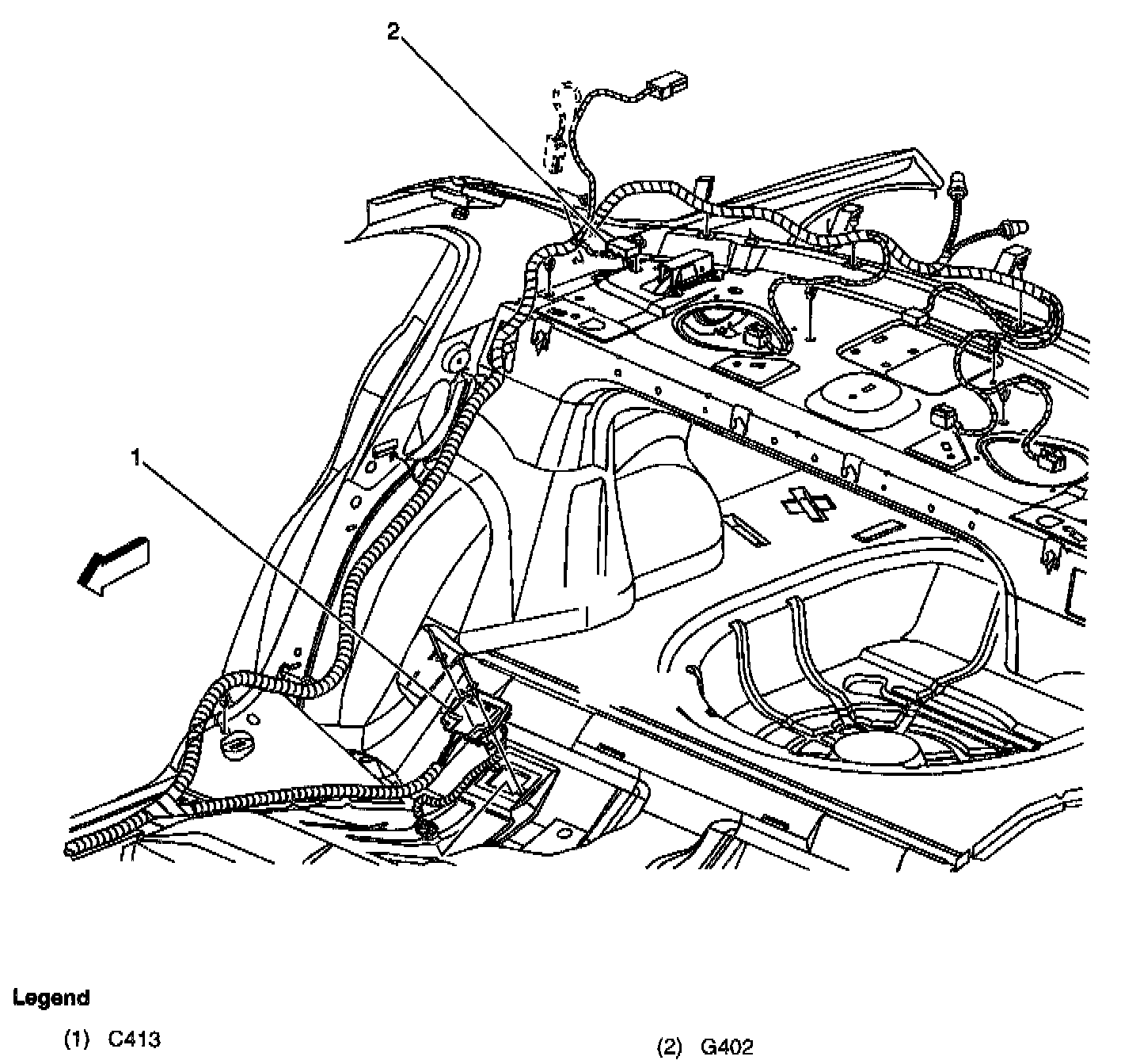

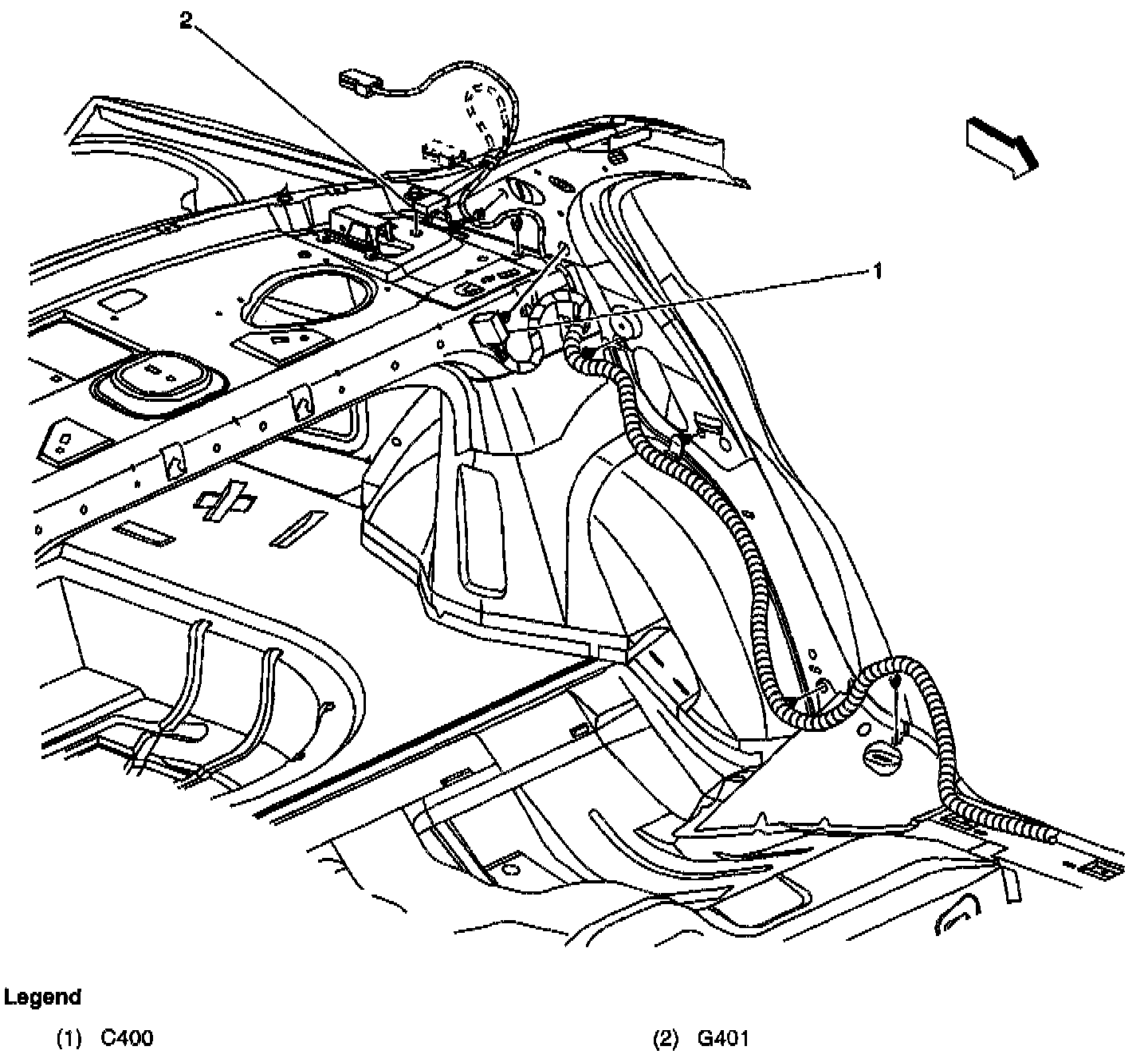

Harness Routing Views (Rear Compartment, Right Side):

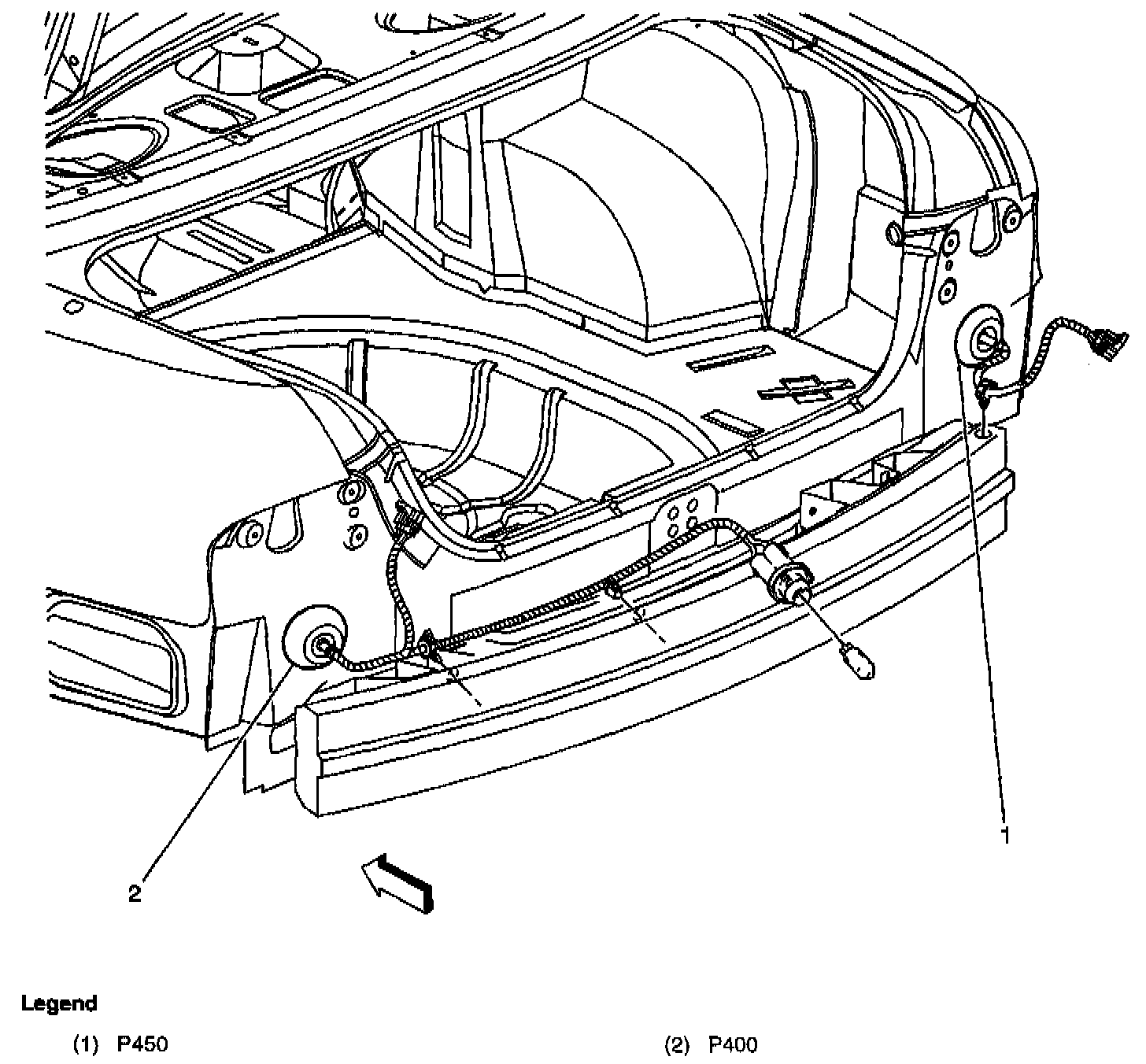

Harness Routing Views (Rear Impact Bar):

Harness Routing Views (Headliner):

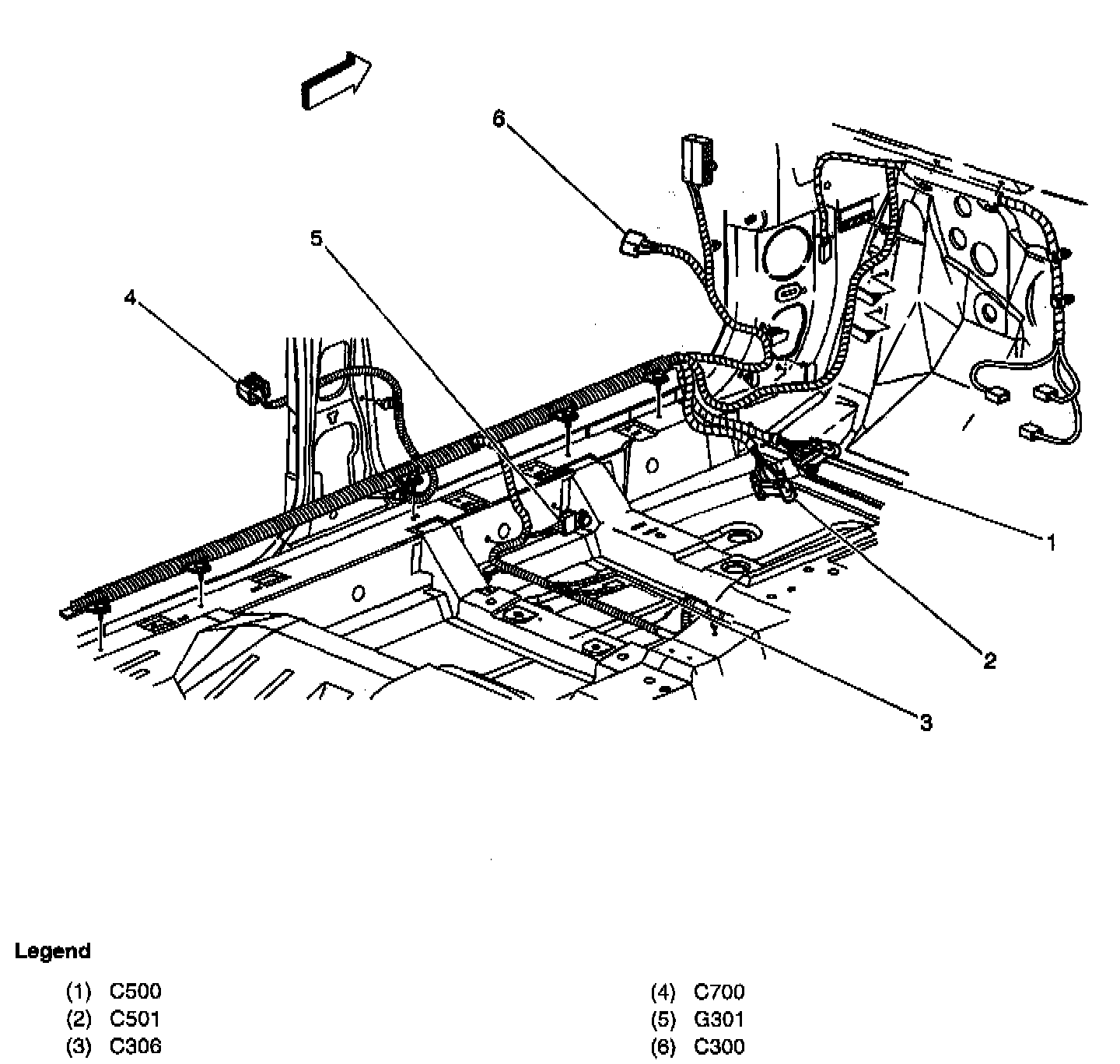

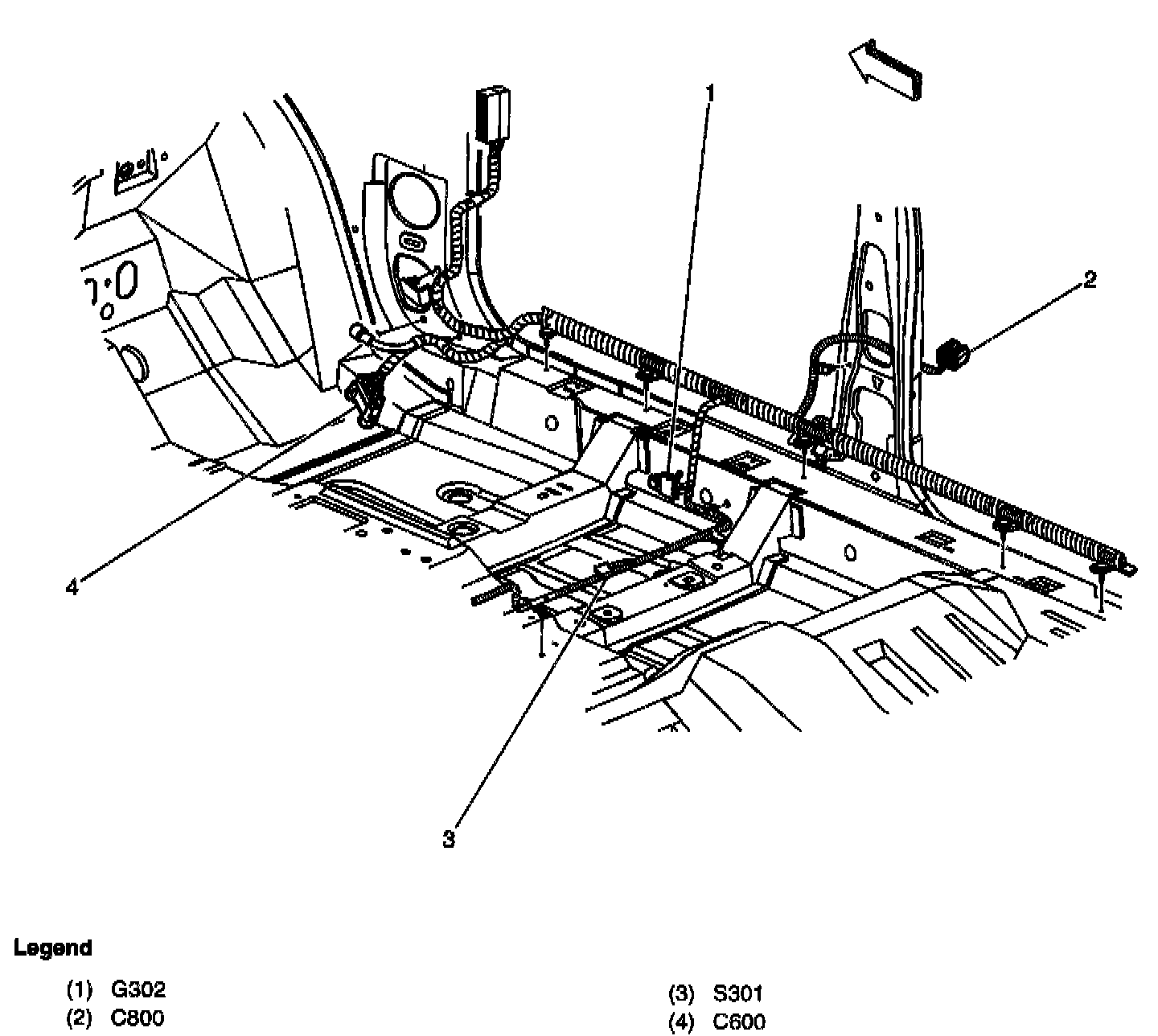

Harness Routing Views (Left Side of the Passenger Compartment):

Harness Routing Views (Left Side of the Passenger Compartment):

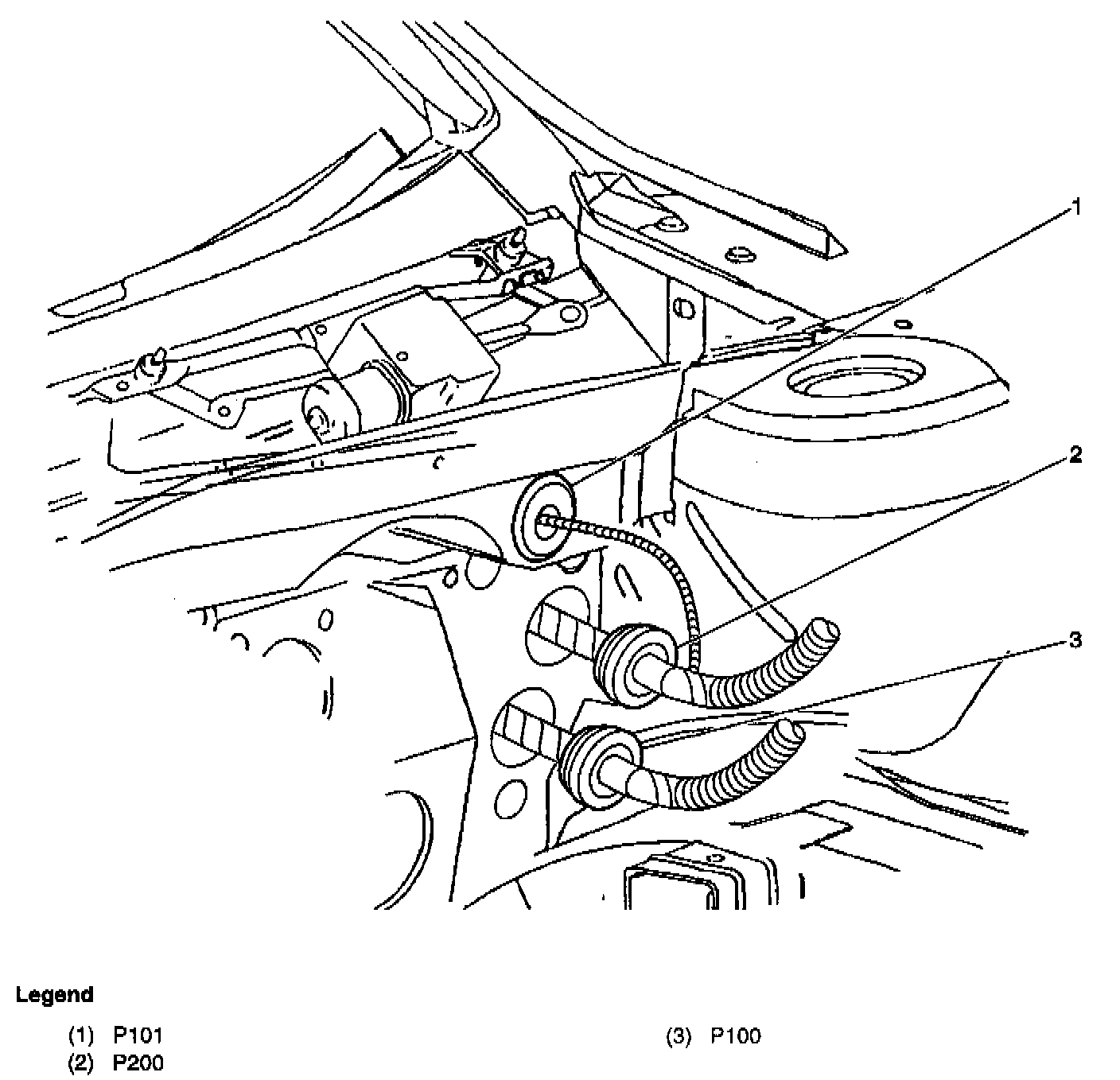

Harness Routing Views (Rear of the Engine Compartment):

Harness Routing Views (IP Wiring Harness Junction Block, Right Side):

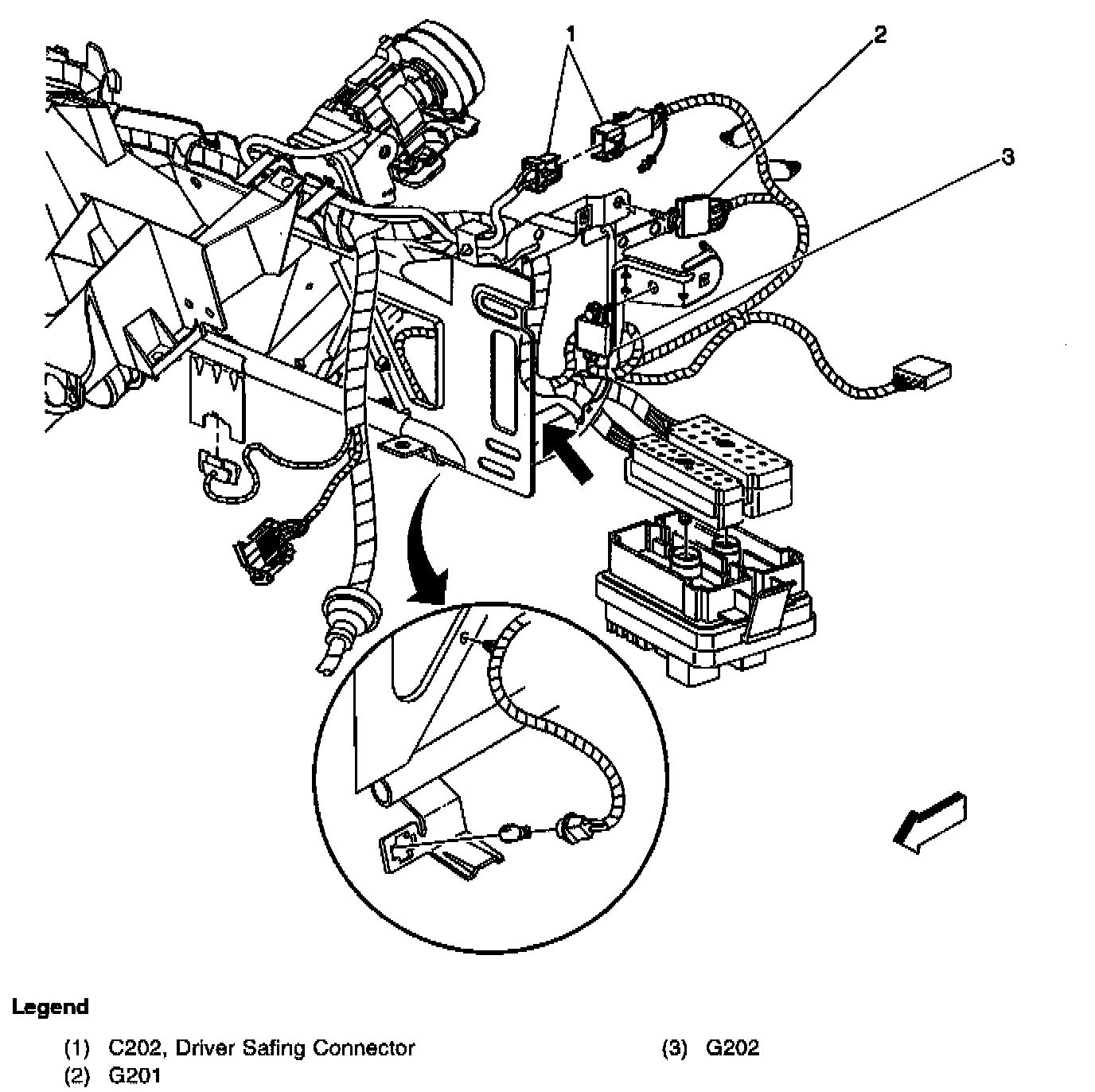

Harness Routing Views (Left Side of the IP):
