Air Distribution Duct Replacement
AIR DISTRIBUTION DUCT REPLACEMENTREMOVAL PROCEDURE
1. Remove the instrument panel (IP) carrier.
2. Remove the defroster duct.
3. Remove the right side window defogger duct.
4. Remove the left side window defogger duct.
5. Unsnap the lap air duct from the air distribution duct.

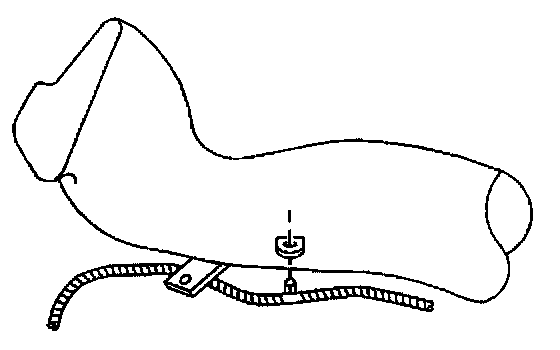

6. Remove the wiring harness from the left end of the air distribution duct.

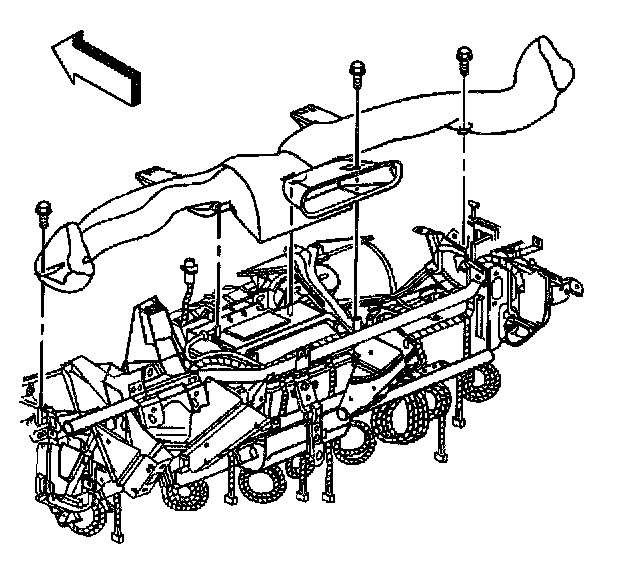

7. Remove the air distribution duct bolts.
8. Remove the air distribution duct from the vehicle.
INSTALLATION PROCEDURE
1. Install the air distribution duct on the pins of the HVAC module assembly.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the air distribution bolts.
Tighten
Tighten the air distribution duct bolts to 3 N.m (27 lb in).
3. Install the wiring harness to the left end of the air distribution duct.
4. Snap the lap duct to the air distribution duct.
5. Install the left side window defogger duct.
6. Install the right side window defogger duct.
7. Install the defroster duct.
8. Install the instrument panel (IP) carrier.
