Home >> Chevrolet >> 2000 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Fuel Controls >> Power, Ground and Fuel Systems

Power, Ground and Fuel Systems

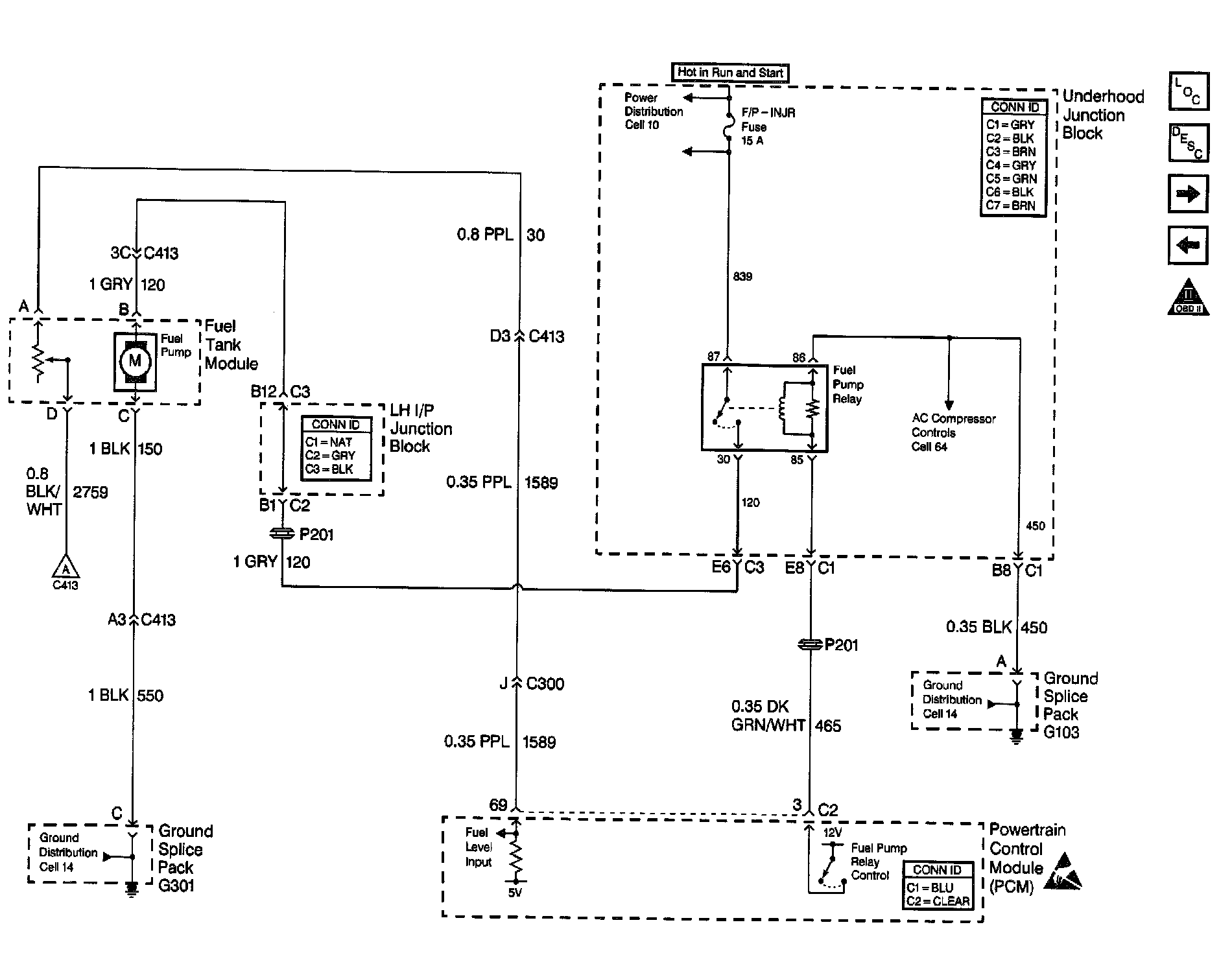

Engine Controls Schematics: Power, Ground And Fuel Systems:
