Transmission Mount Replacement-Rear

Removal Procedure
1. Remove the front suspension support. Refer to Front Suspension Crossmember Replacement in Steering and Suspension.

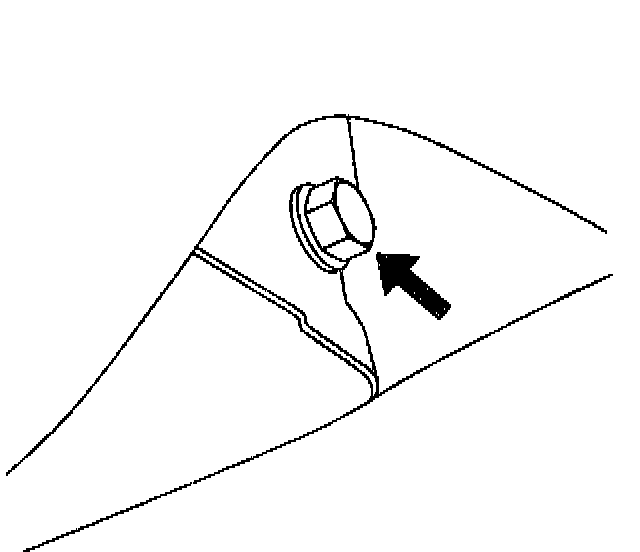

2. Remove the rear transmission mount thru-bolt.





3. Remove the mount bolt.

Installation Procedure





1. Position and install the mount.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the thru-bolt.
^ Tighten the thru-bolt to 120 Nm (89 ft. lbs.).
3. Install the suspension support. Refer to Front Suspension Crossmember Replacement in Steering and Suspension.
