Transmission Fluid Level and Condition Check

Transmission Fluid Checking Procedure

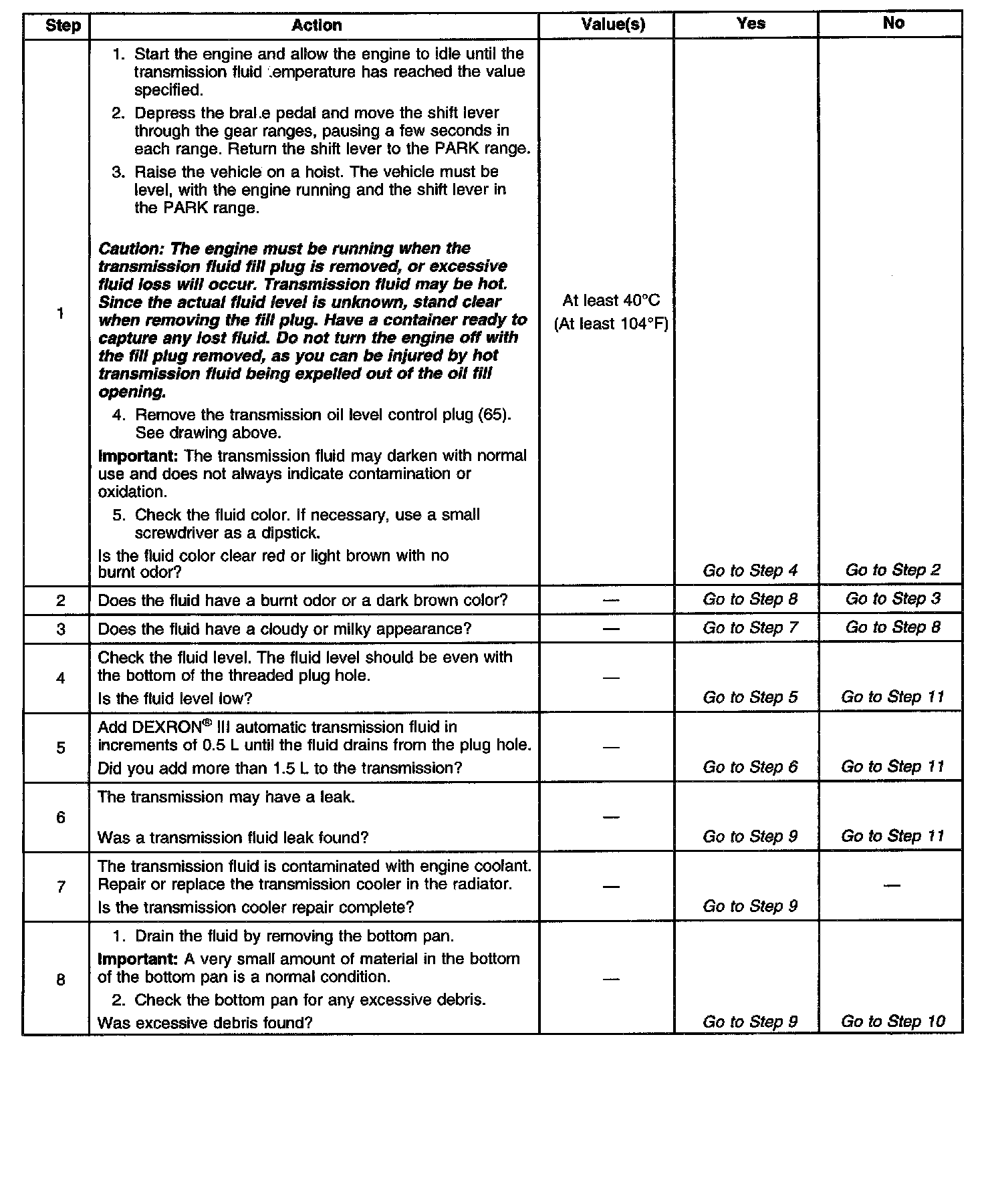

Test 1-8

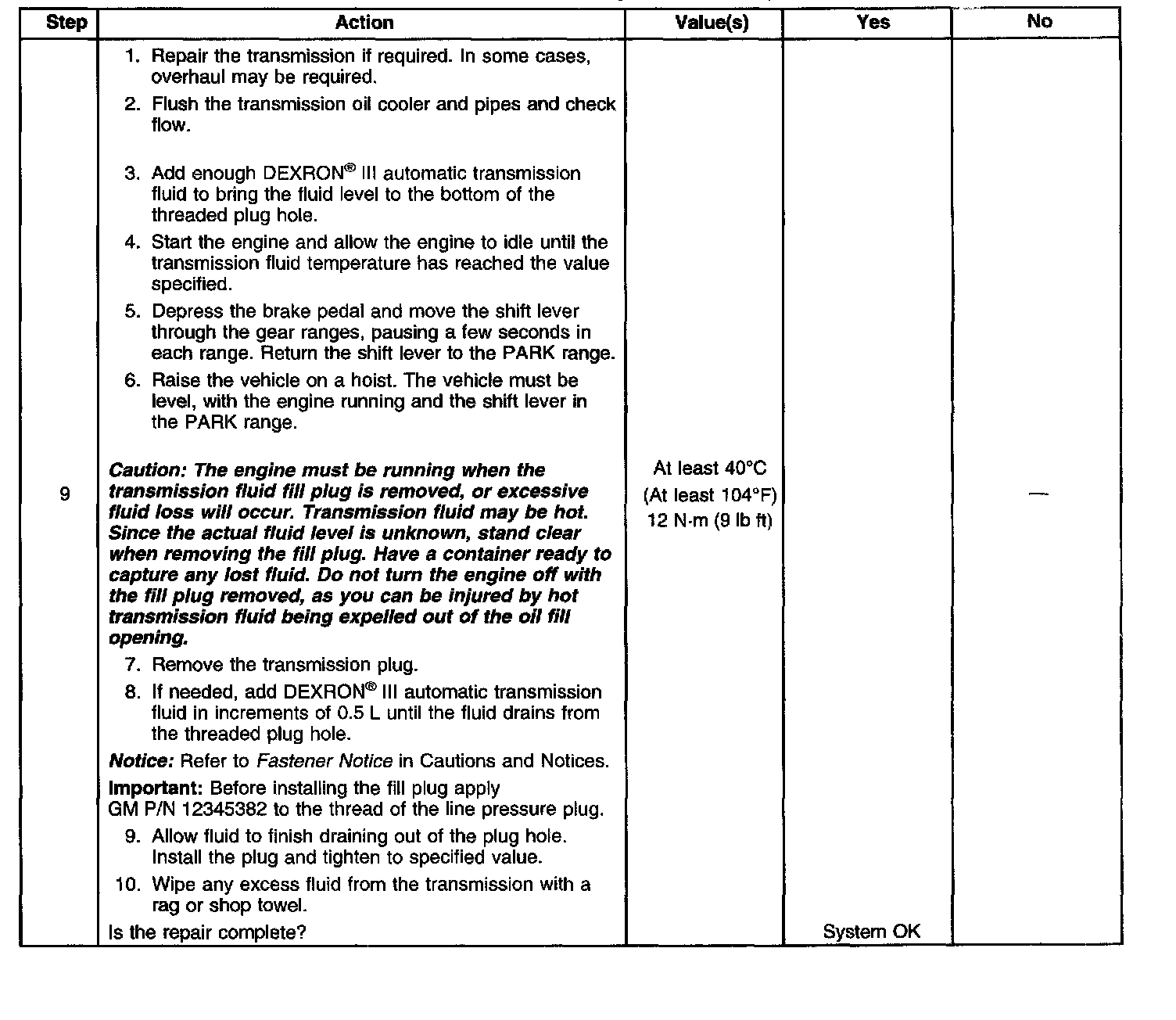

Test 9

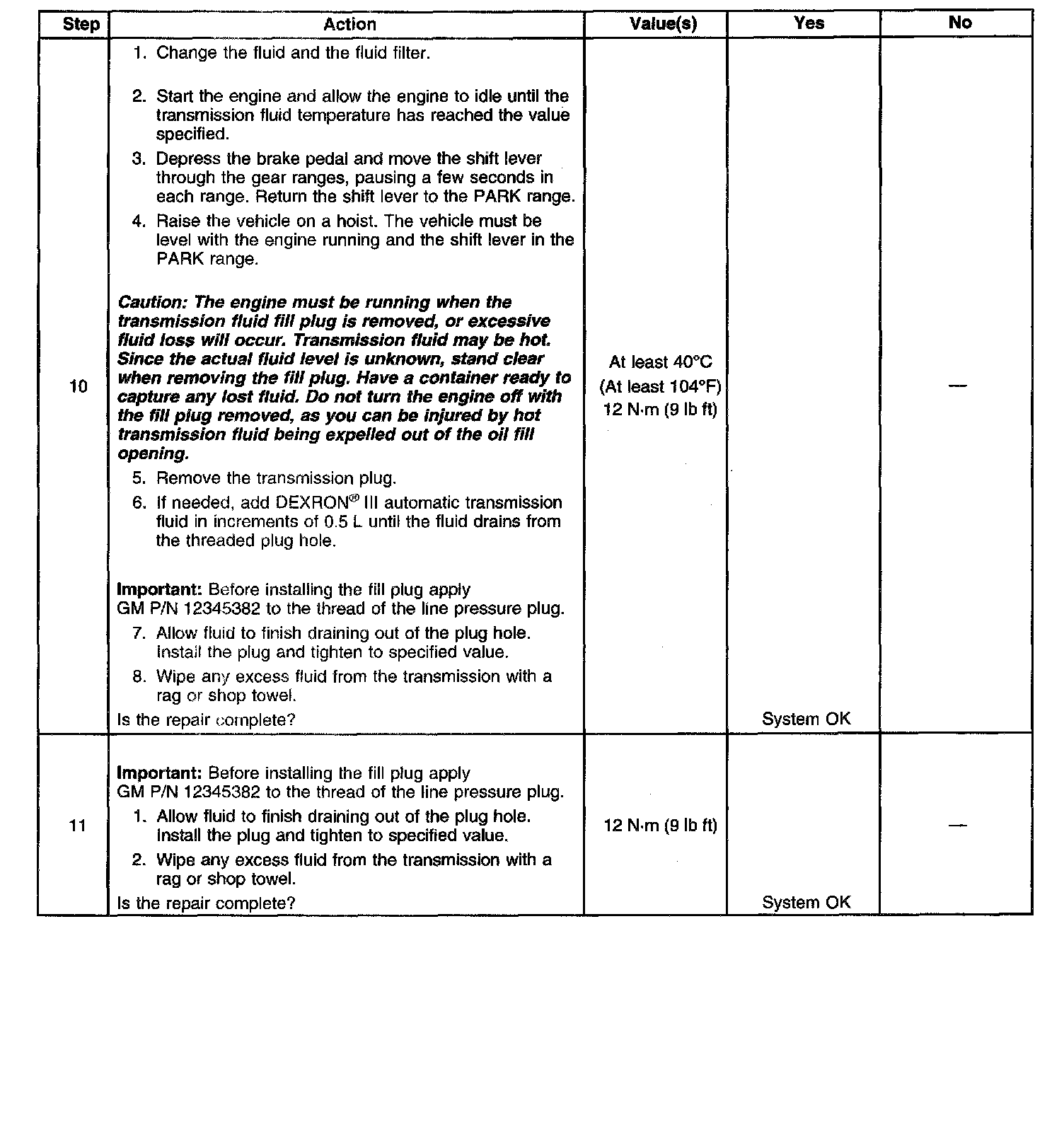

Test 10-11

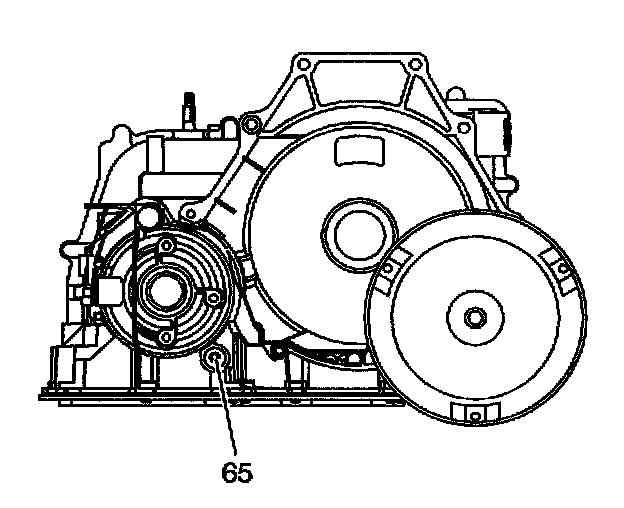

The oil level control plug (65) is located on the torque converter side of the transmission.
