Engine Oil Temperature (EOT) Sensor
Engine Oil Temperature (EOT) Sensor

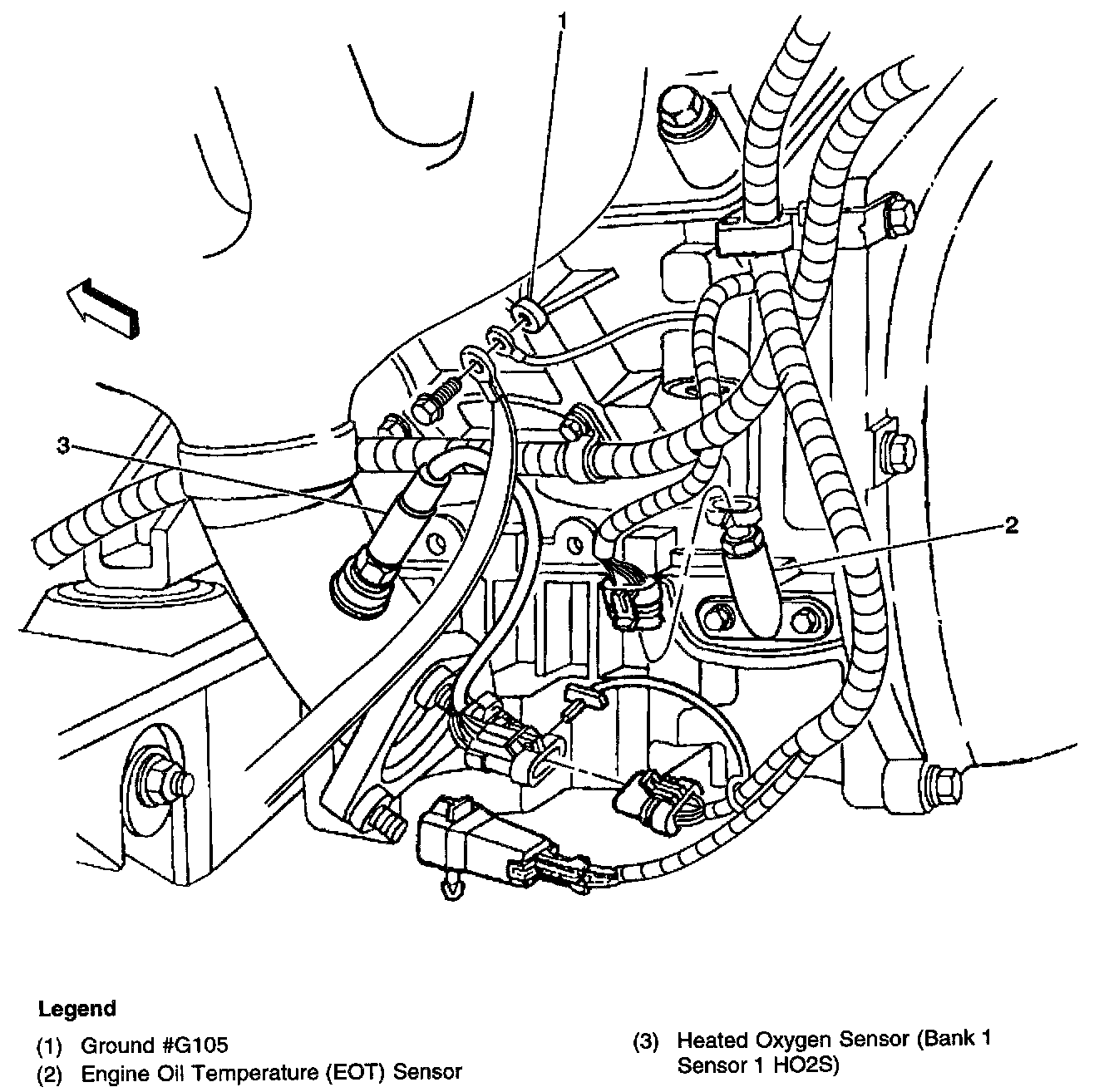

Locations View:
Locations View:
Rear of the engine, bottom LH side
