Suspension Position Sensor - LR

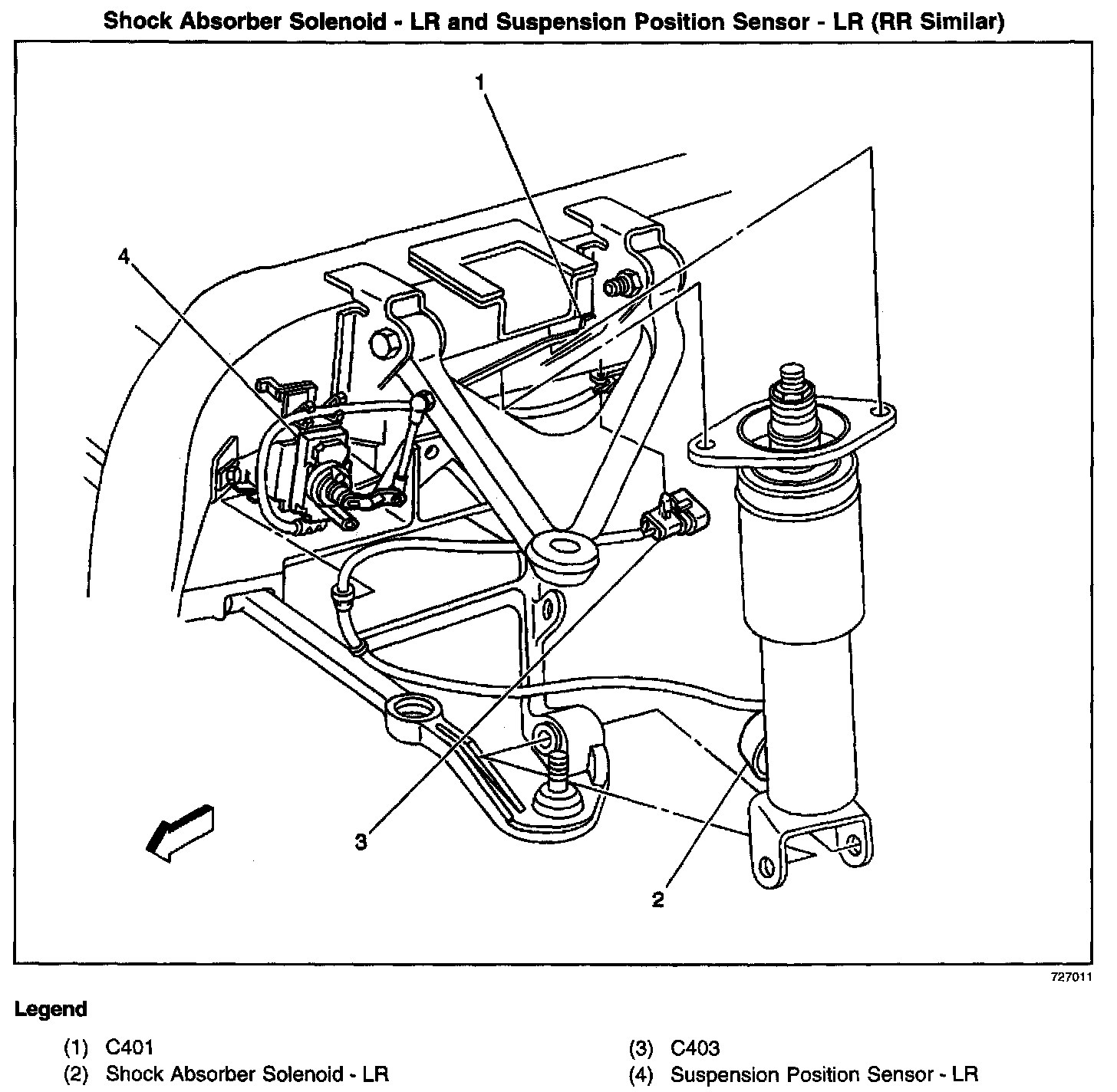

Suspension Position Sensor - LR
Locations View:
LH rear wheelhouse front of the control arm
