Power Seat Relay

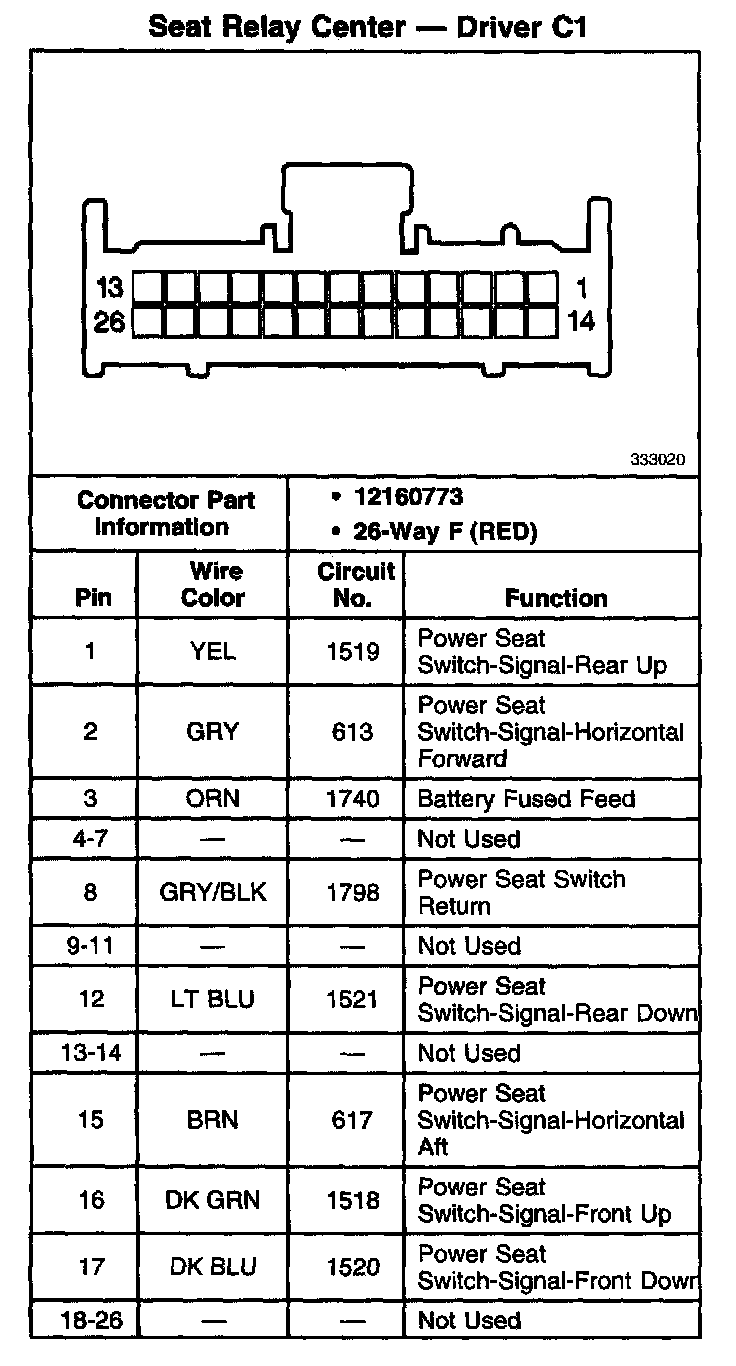

Seat Relay Center - Driver C1:



Seat Relay Center - Driver C2:



Seat Relay Center - Driver C3:

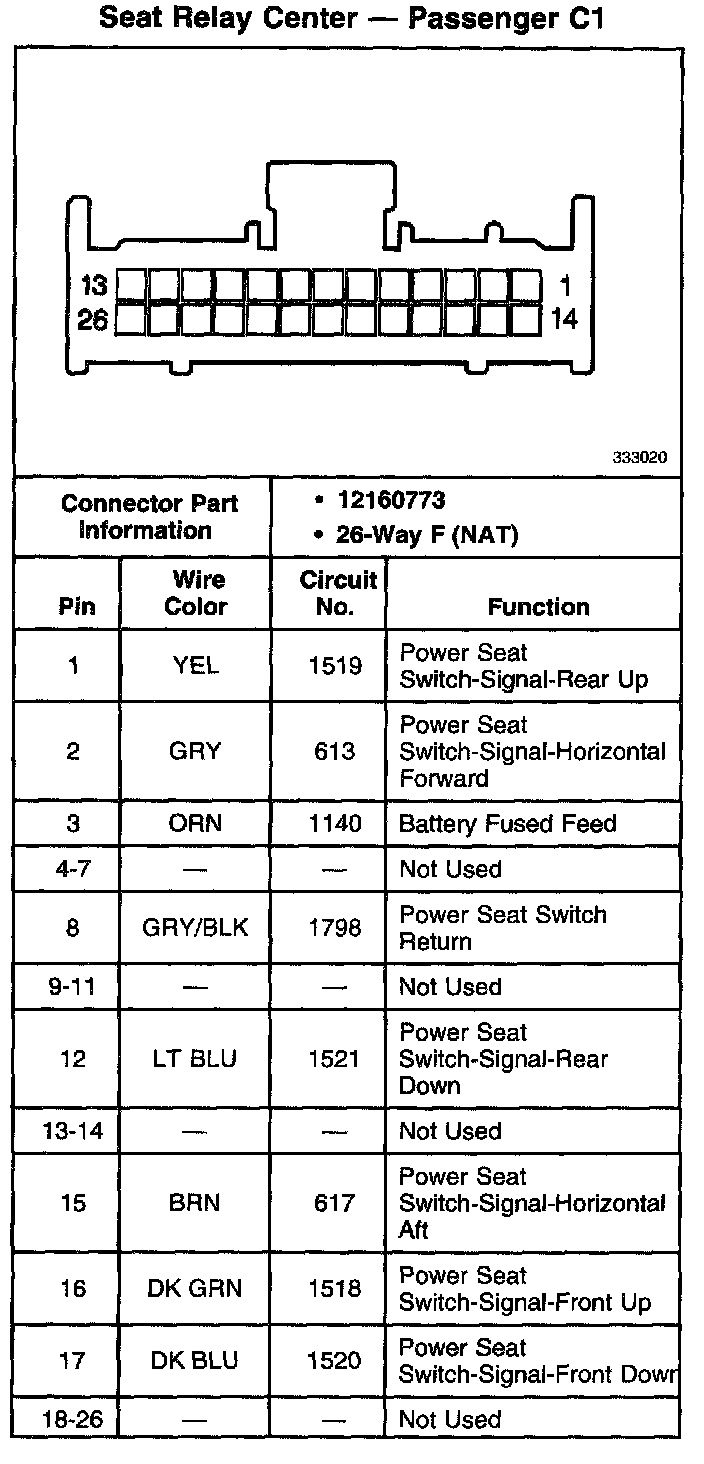

Seat Relay Center - Passenger C1:



Seat Relay Center - Passenger C2:

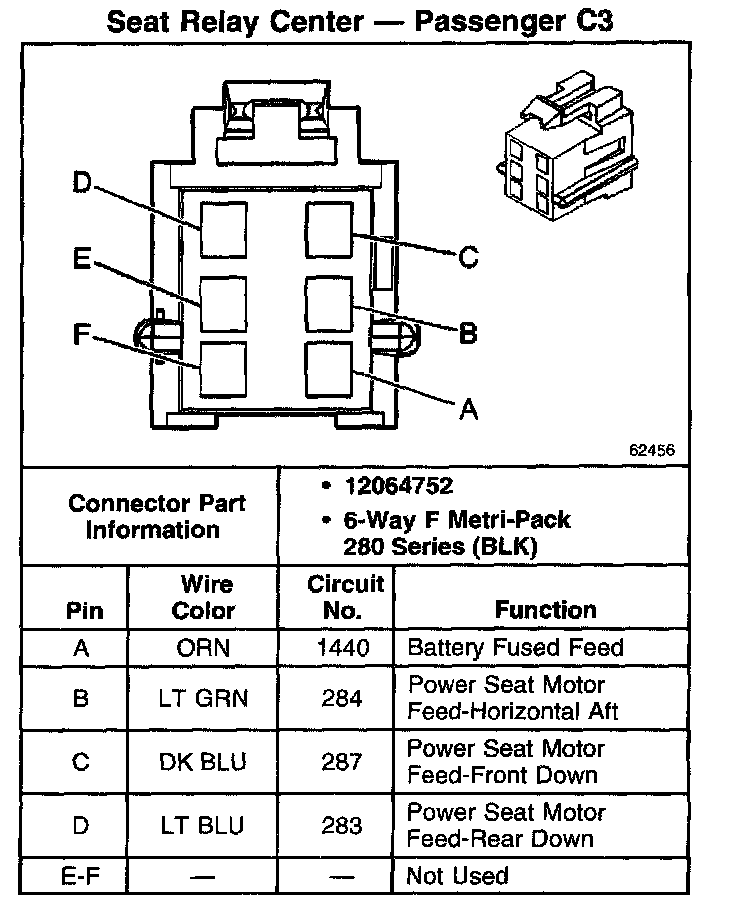

Seat Relay Center - Passenger C3:
