Ignition Key Signals and Trunk Release Switch Signal

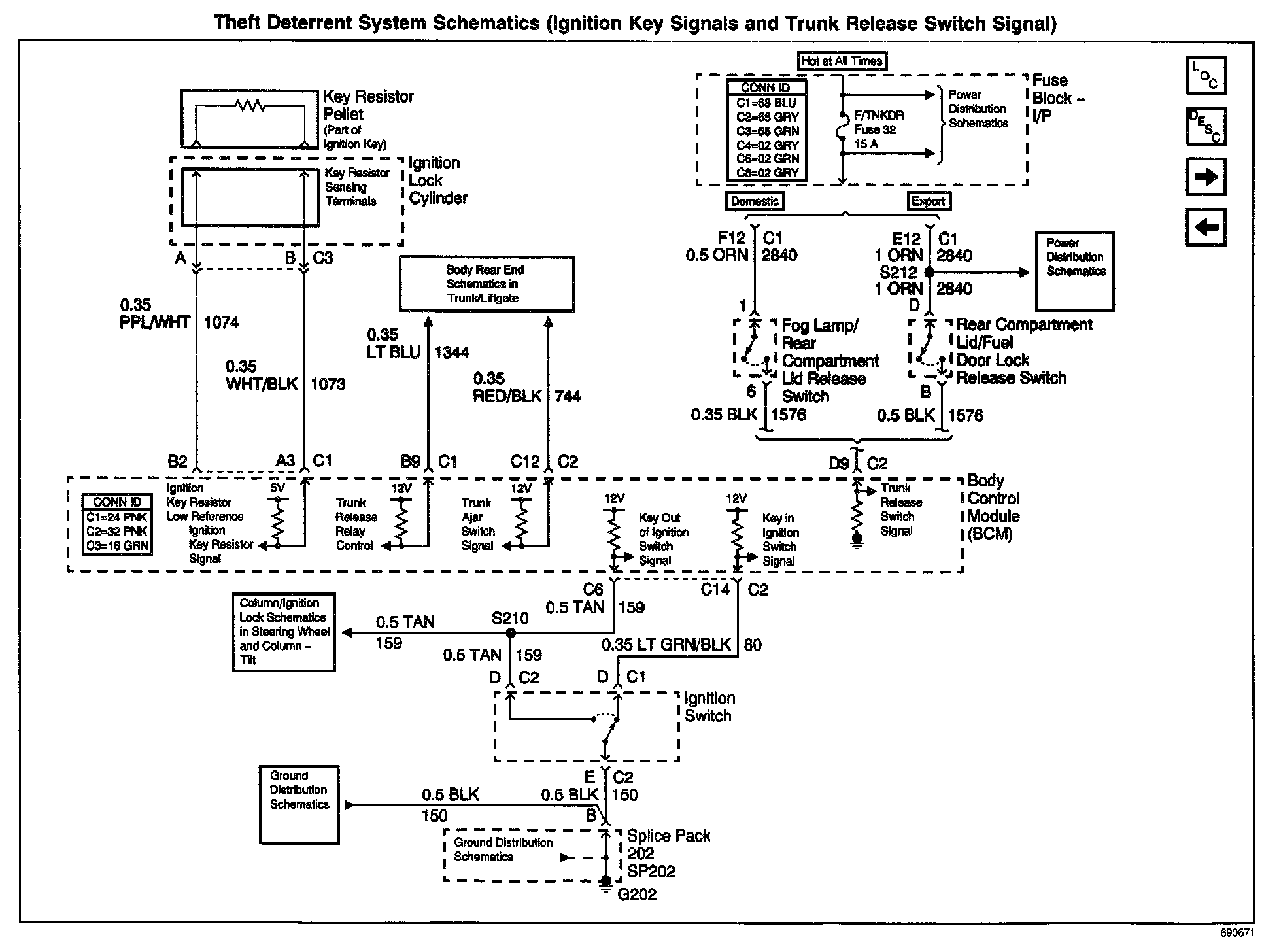

Theft Deterrent System Schematics: Ignition Key Signals and Trunk Release Switch Signal:
