Cruise Control Switch, Throttle Actuator Control Motor and Cruise Control Release Switch
Cruise Control Switch, Throttle Actuator Control Motor and Cruise Control Release Switch

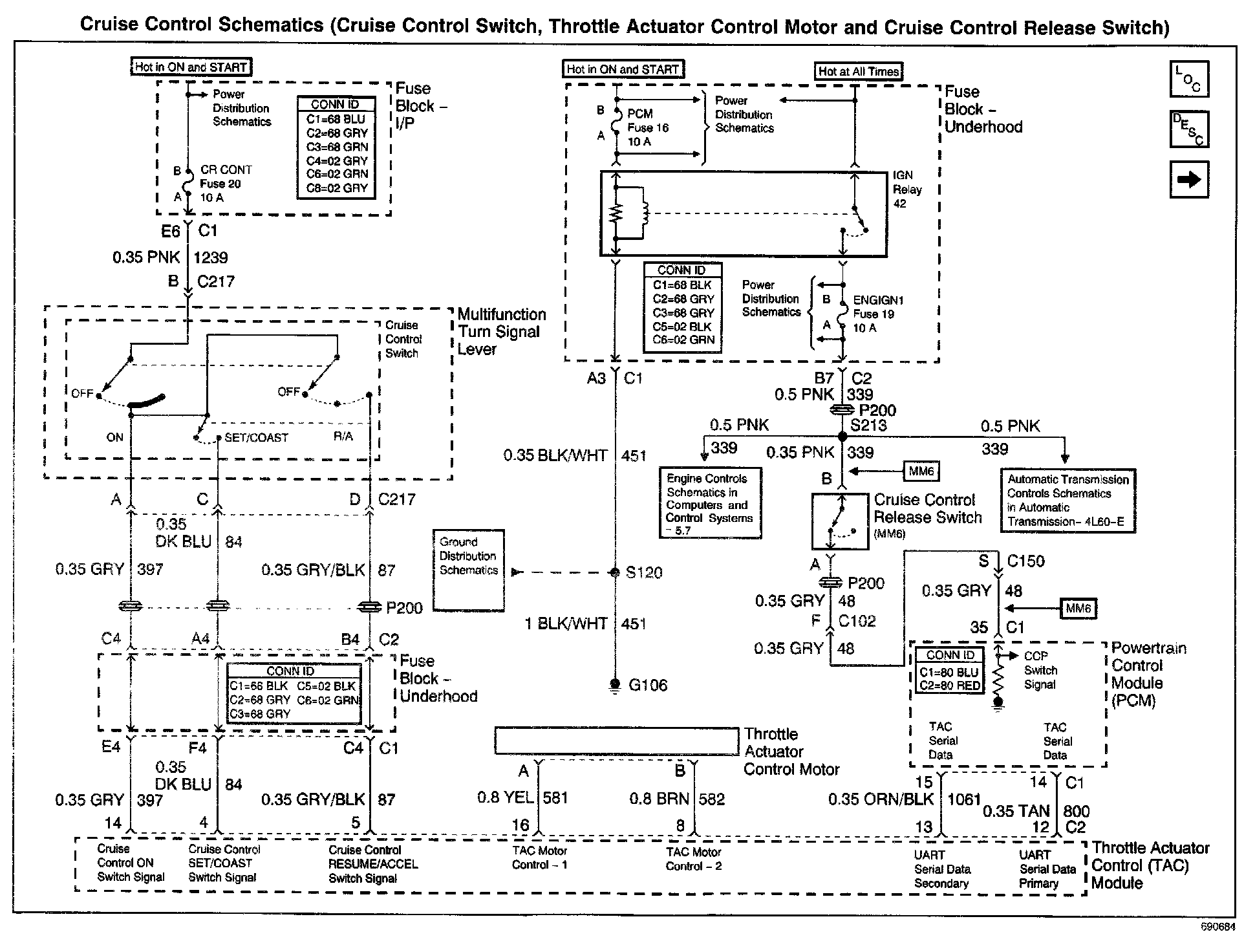

Cruise Control Schematics: Cruise Control Switch, Throttle Actuator Control Motor And Cruise Control Release Switch:
