Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Schematics >> Steering Wheel Position Sensor

Steering Wheel Position Sensor

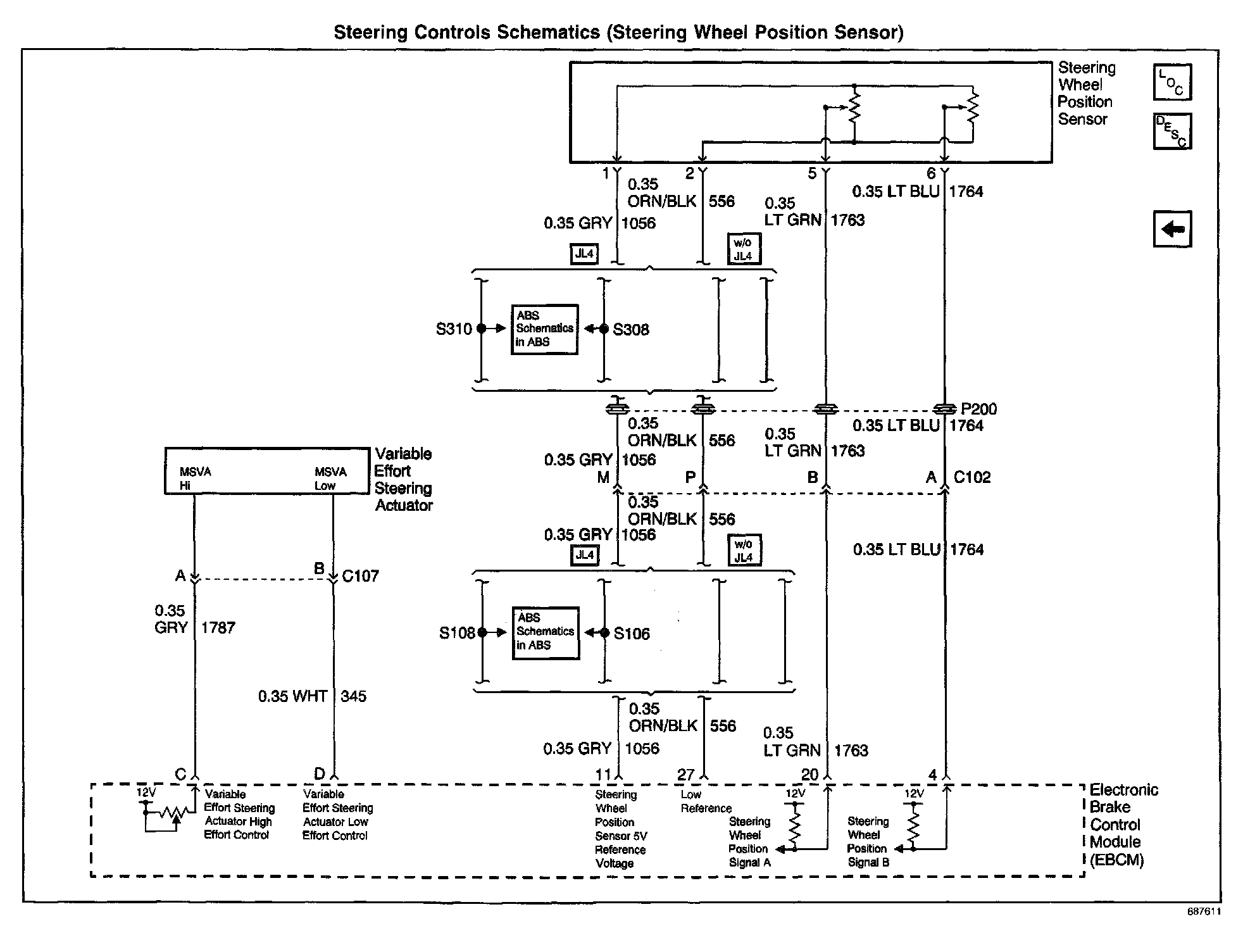

Steering Controls Schematics: Steering Wheel Position Sensor:
