Trunk / Liftgate

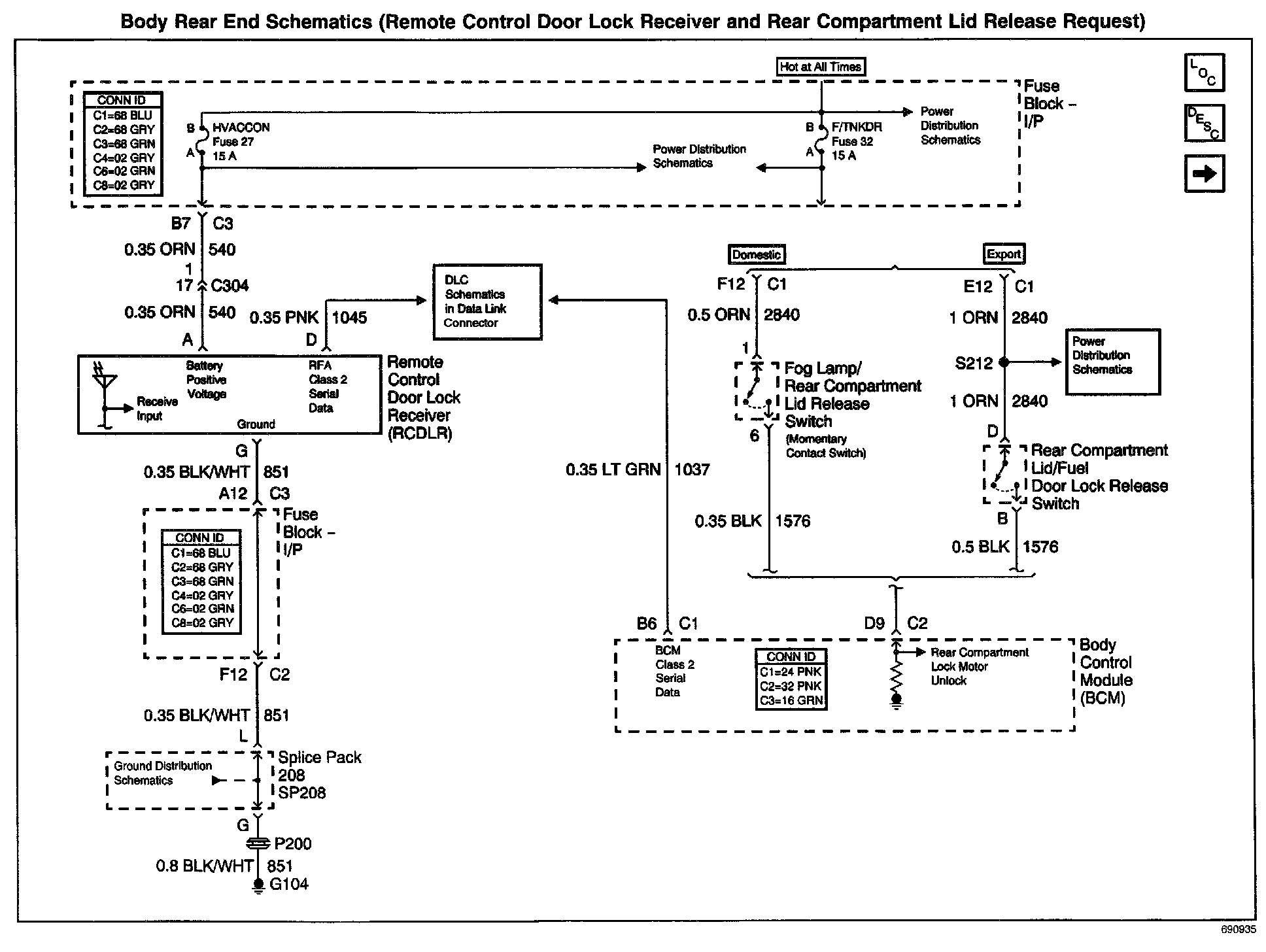

Body Rear Schematics: Remote Control Door Lock Receiver And Rear Compartment Lid Release Request:

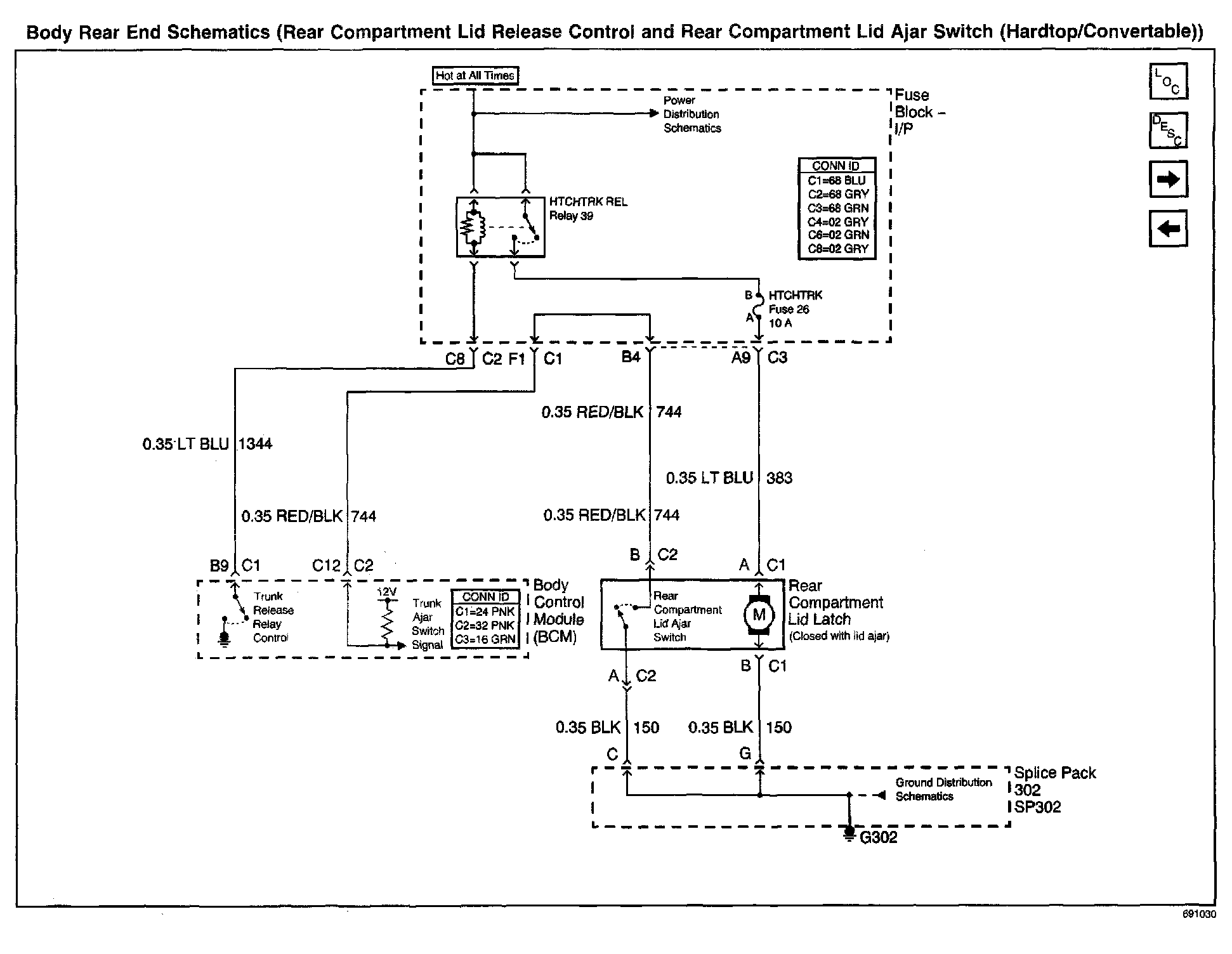

Body Rear End Schematics: Rear Compartment Lid Release Control And Rear Compartment Lid Ajar Switch (Hardtop/Convertable):

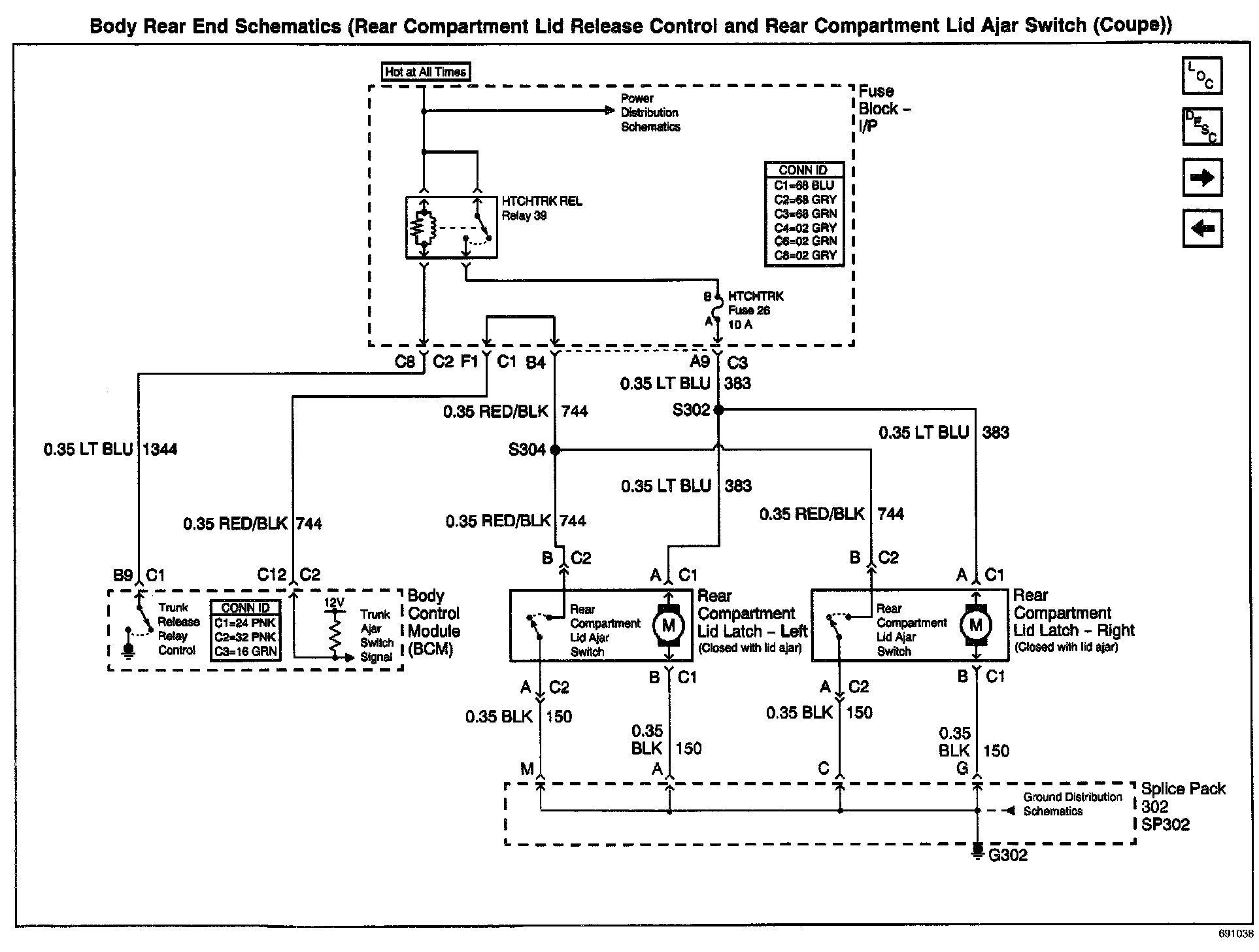

Body Rear End Schematics: Rear Compartment Lid Release Control And Rear Compartment Lid Ajar Switch (Coupe):

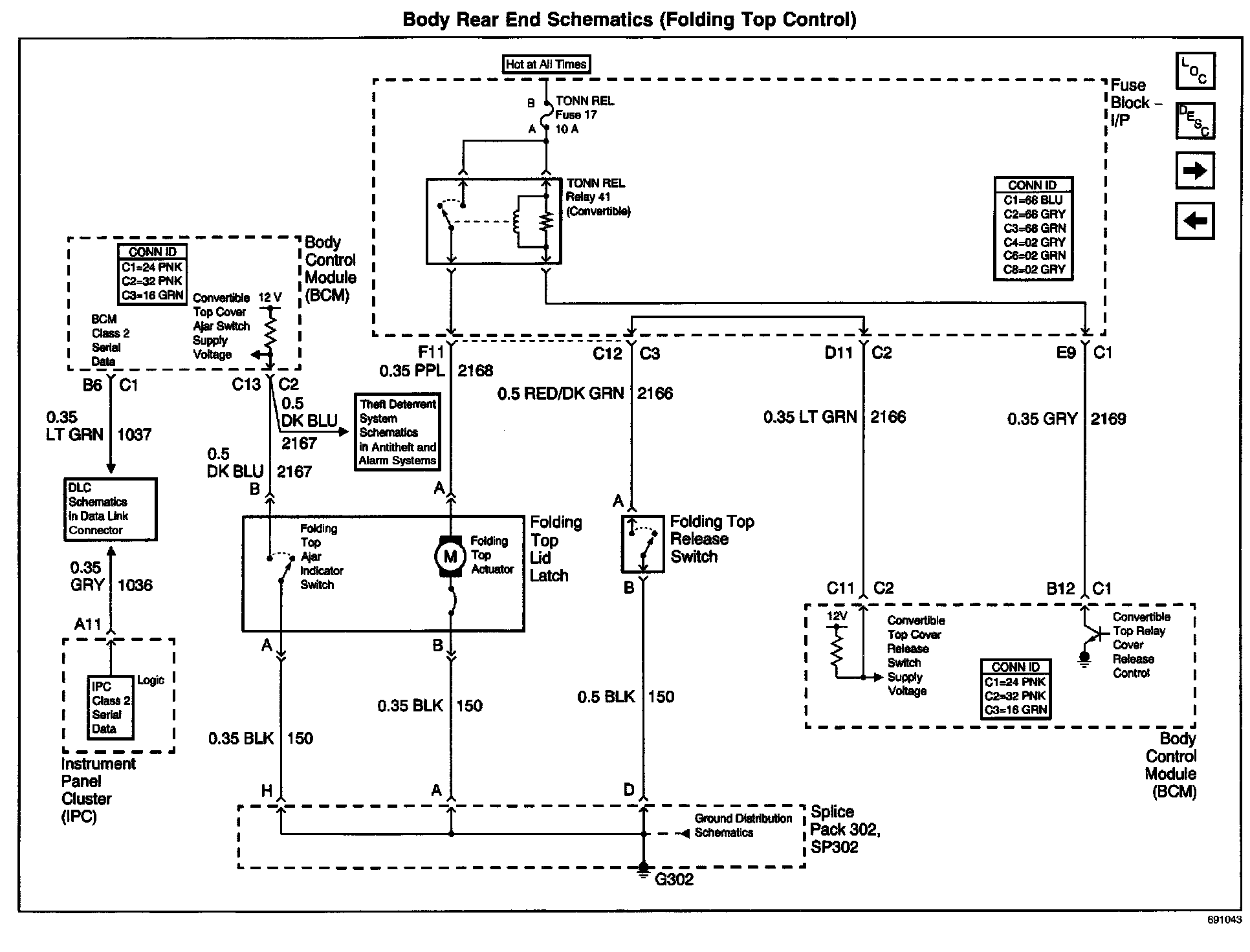

Body Rear End Schematics: Folding Top Control:

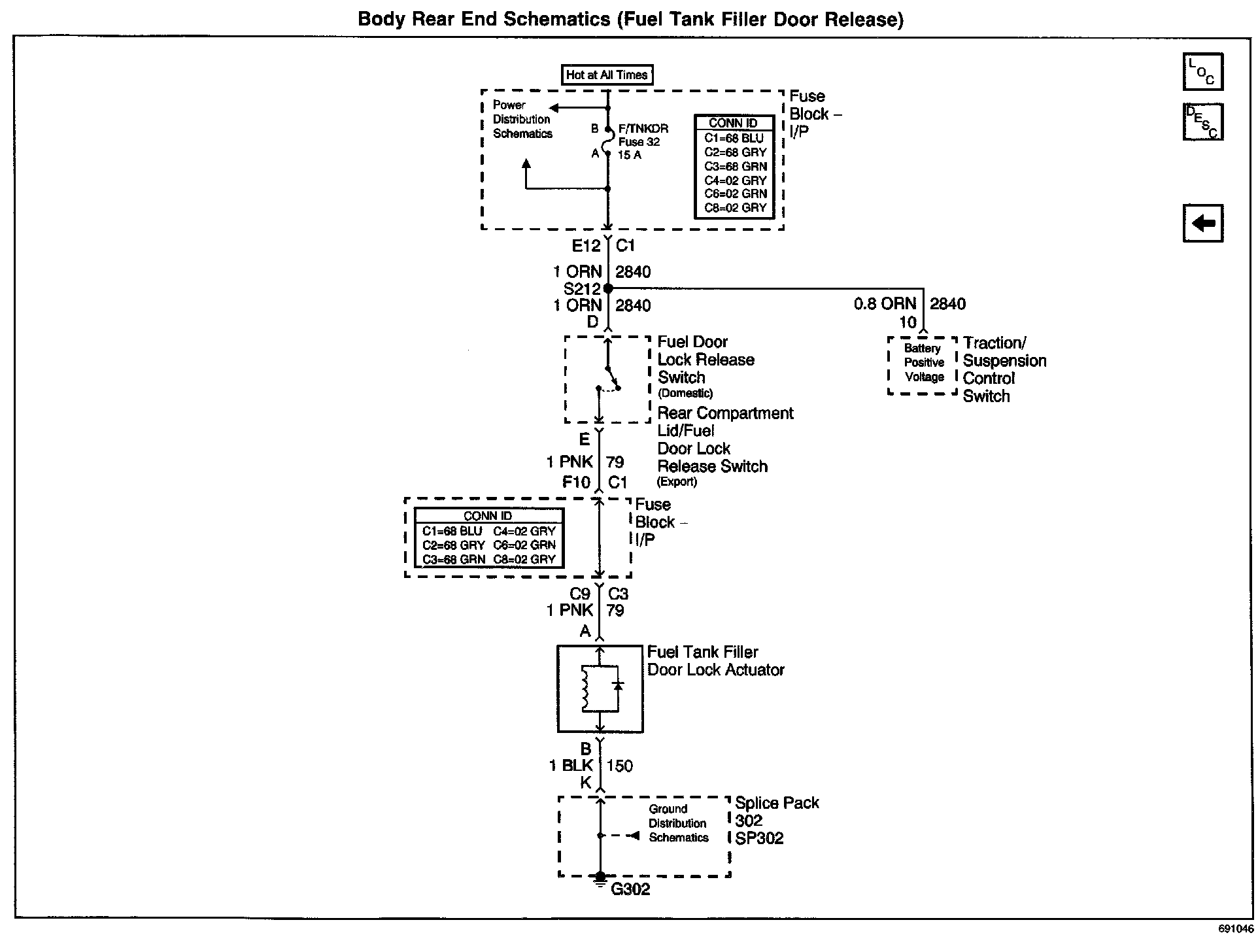

Body Rear End Schematics: Fuel Tank Filler Door Release:
