Door Control Module - RH Door Power, Ground and DLC

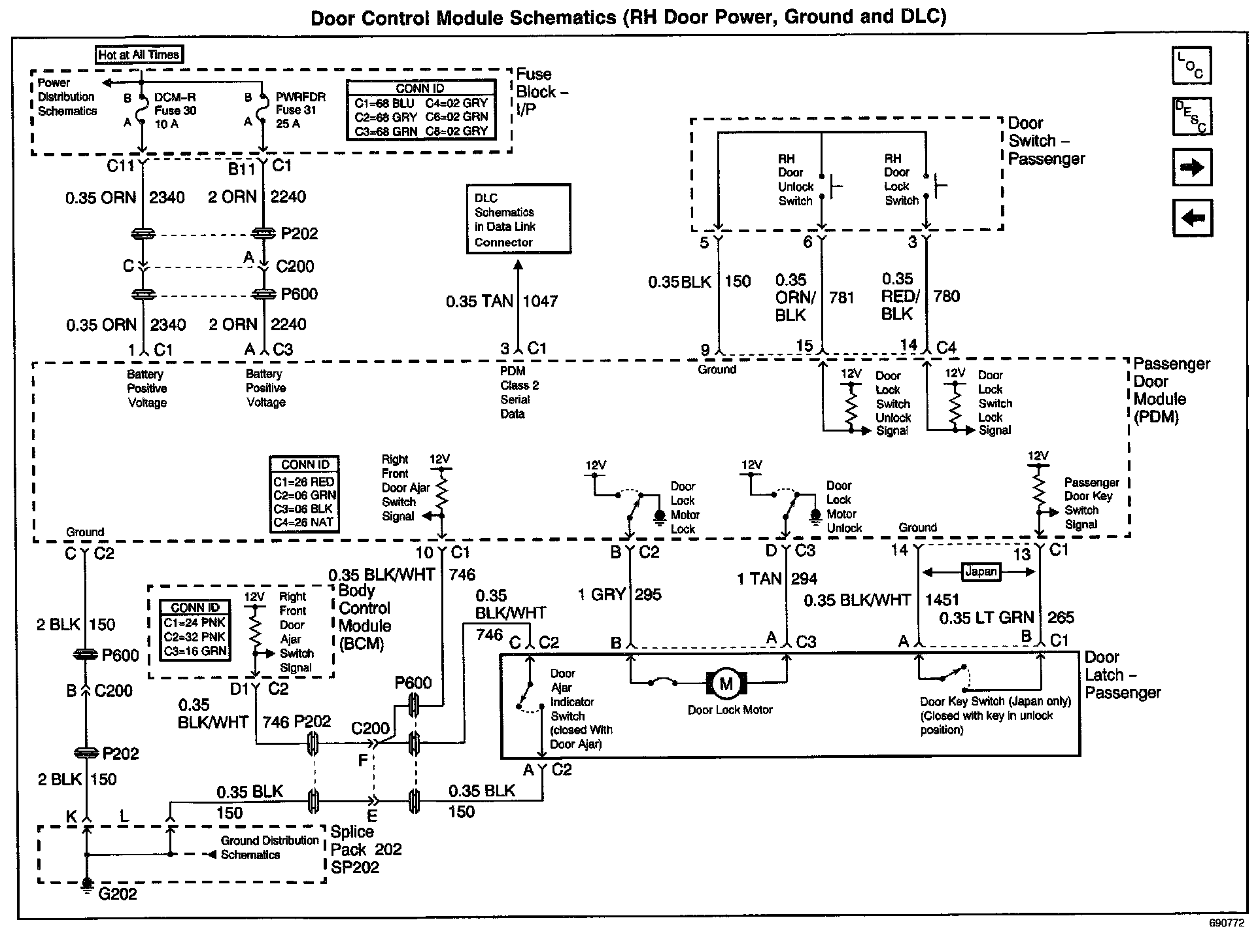

Door Control Module Schematics: RH Door Power, Ground And DLC:
