Electrical Diagrams

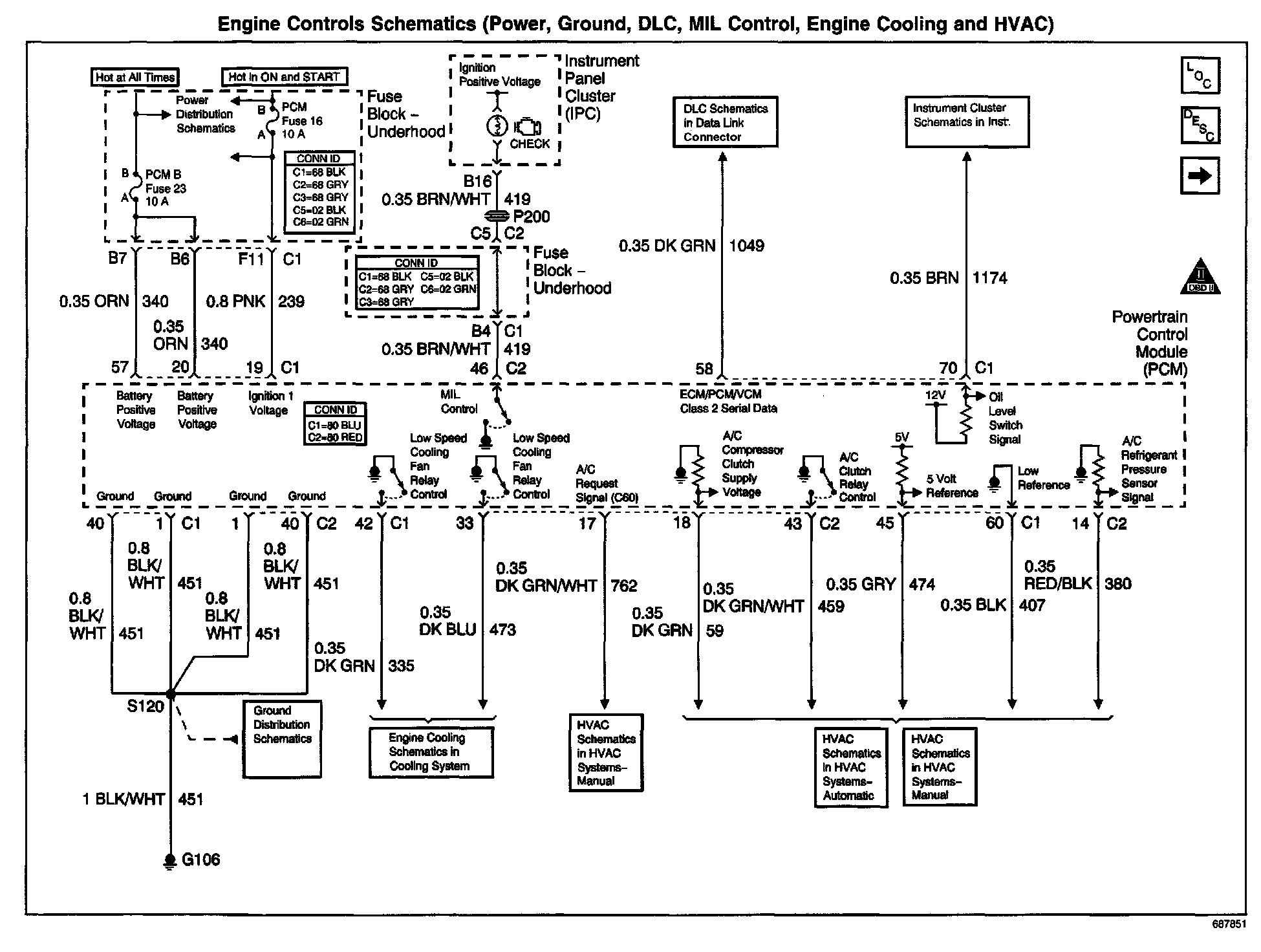

Engine Control Schematics: Power, Ground, DLC, MIL Control, Engine Cooling And HVAC:
