Power Seat Switch
>>
Heated Seat Switch - Driver
Heated Seat Switch - Driver

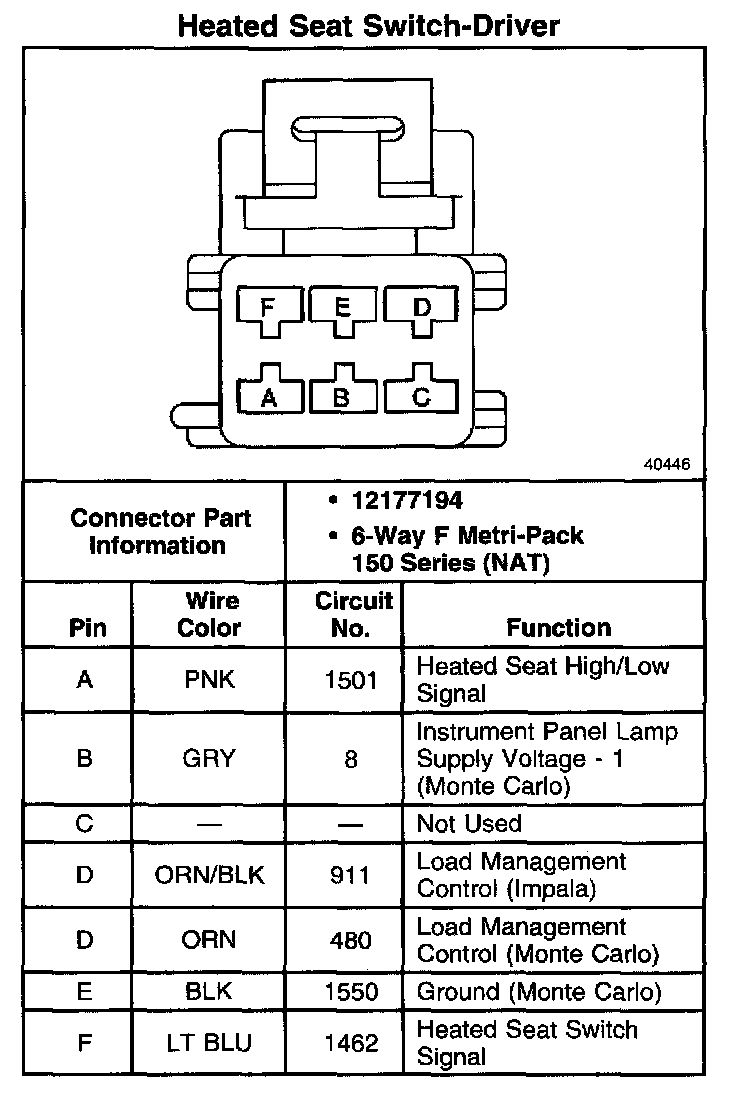

Heated Seat Switch-Driver:
