Rear Compartment Trim Panel Replacement

Rear Compartment Trim Panel Replacement

Removal Procedure

1. Open the rear compartment.
2. Remove the rear compartment sill plate.

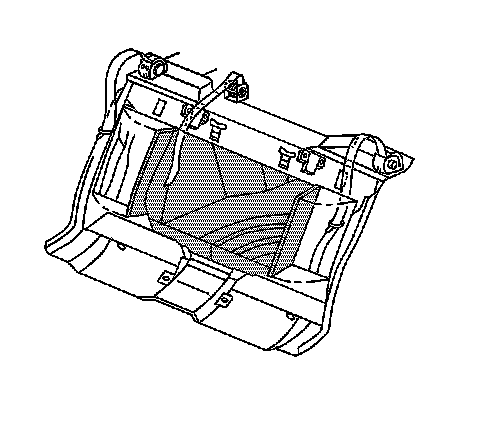

3. Remove the rear compartment convenience net and retainers, if equipped.
4. Remove the OnStar(R) vehicle communication unit (VCU) if equipped.
5. Remove the rear seat back.

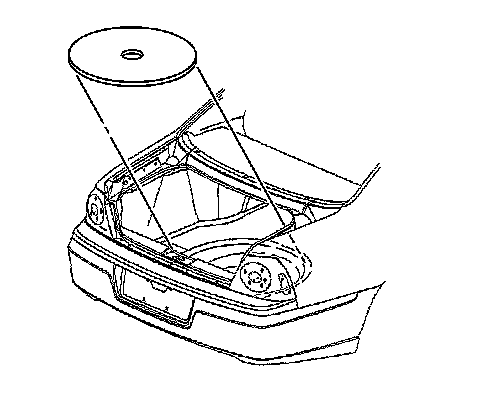

6. Remove the spare tire cover from the rear compartment.

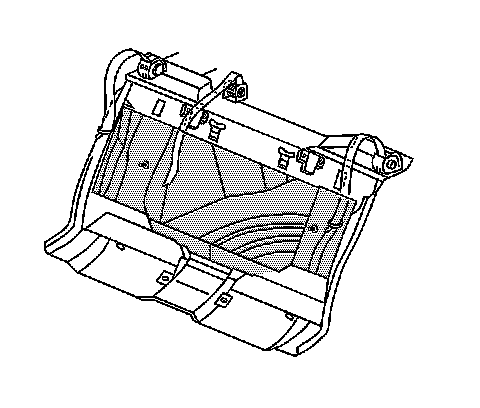

7. Remove the push-in retainers from the rear compartment trim panel.




8. Pull back the rear compartment trim panel from the rear seating area.




9. Remove the rear compartment trim panel from the rear compartment.

Installation Procedure




1. Install the rear compartment trim panel to the rear compartment.




2. Pull back the rear compartment trim panel to the rear seating area.
3. Press the rear compartment trim over the rear shock tower studs.




4. Install the push-in retainers to the rear compartment trim panel.




5. Install the spare tire cover to the rear compartment.
6. Install the rear seat back.
7. Install the OnStar(R) vehicle communication unit (VCU) if equipped.
8. Install the rear compartment convenience net and retainers, if equipped.
9. Install the rear compartment sill plate.
10. Close the rear compartment.
