Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Sensor
>>
Heated Seat Cushion Element-Driver
Heated Seat Cushion Element-Driver

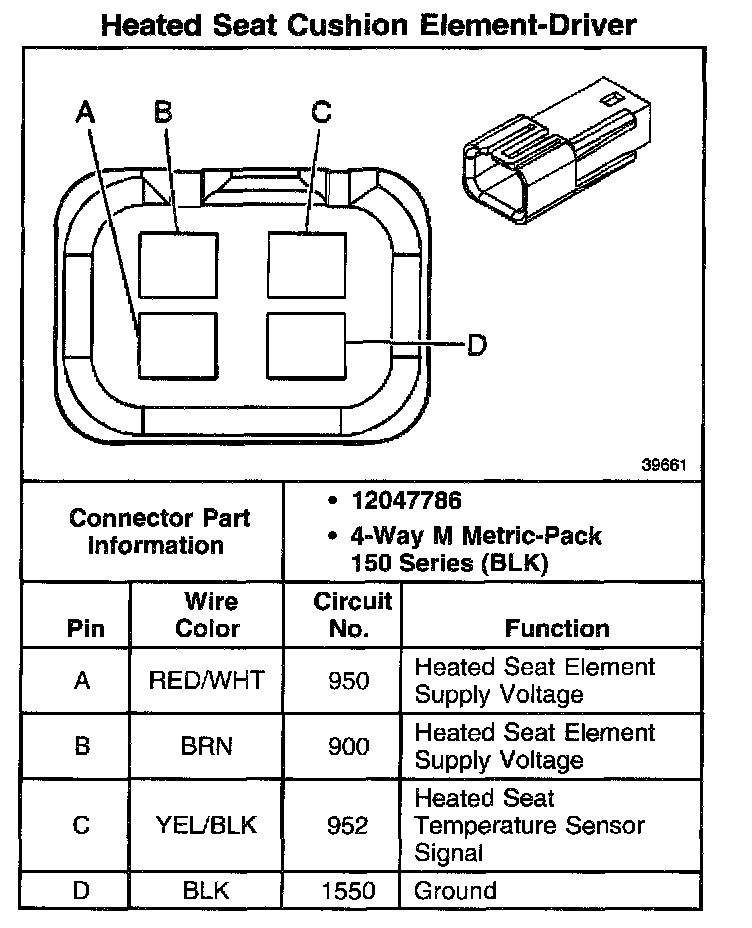

Heated Seat Cushion Element-Driver:
