Grounds, Power, And References To DLC And Keyless Entry

Grounds, Power, And References To DLC And Keyless Entry

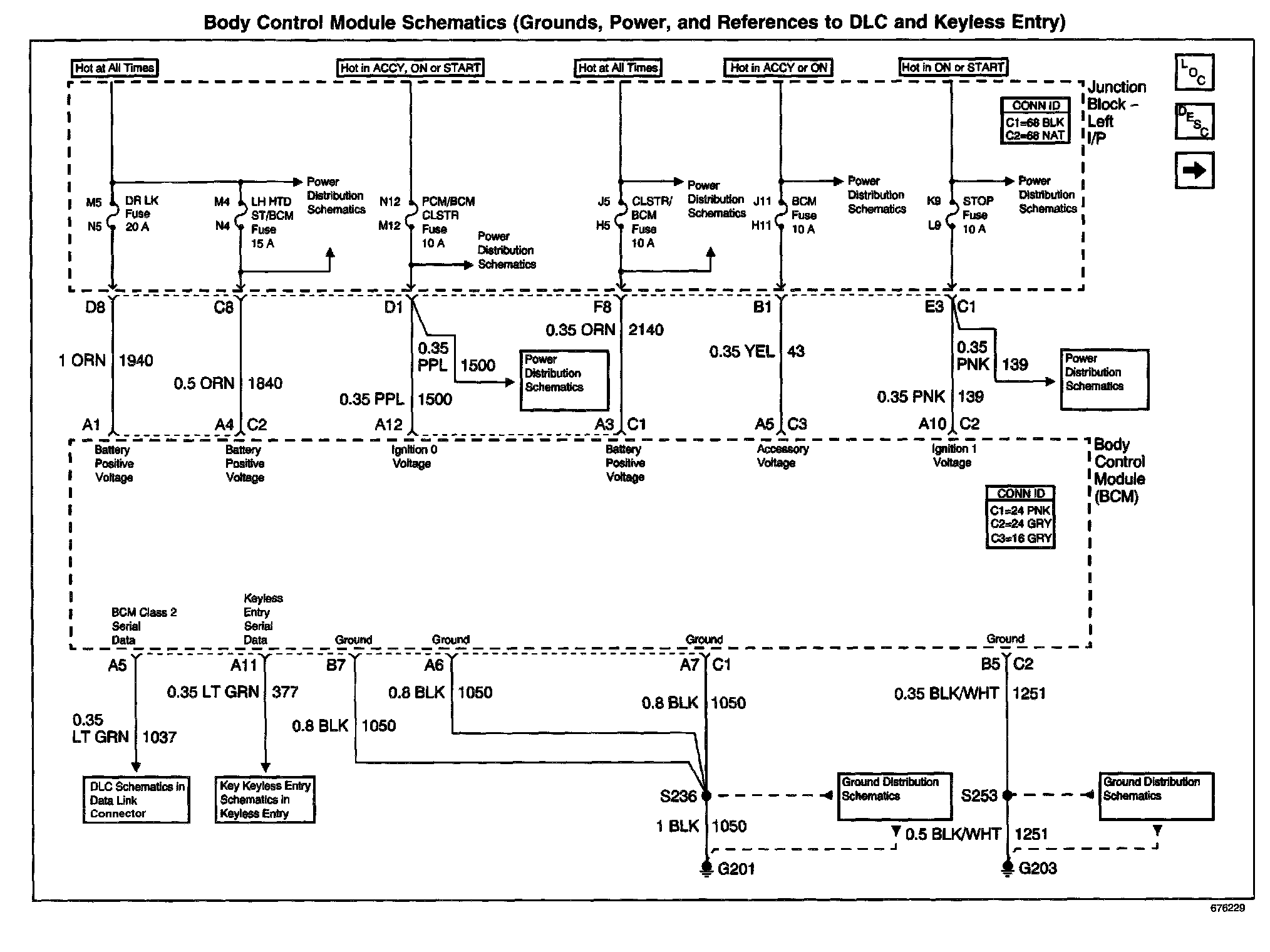

Body Control Module Schematics: Grounds, Power, and References to DLC and Keyless Entry:

Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
