Interior Moulding / Trim: Service and Repair

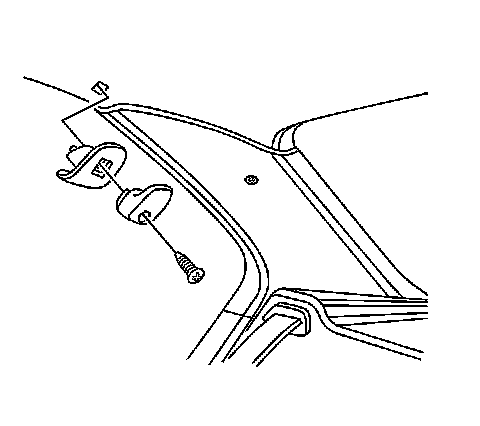

Coat Hook Replacement

Removal Procedure





1. Remove the coat hook screw.
2. Remove the coat hook from the headliner.
3. Remove the bezel, if equipped.



Installation Procedure

1. Install the bezel, if equipped.




2. Install the coat hook to the headliner.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the coat hook screw.

Tighten the coat hook screw to 2 N.m (18 lb in).
