Removal and Replacement

Front Door Switch Replacement

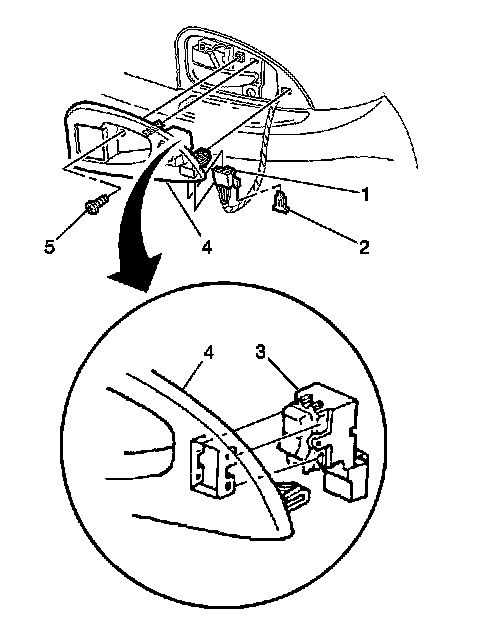

Removal Procedure

1. Remove the inside handle bezel screw.
2. Disconnect the electrical connector.




3. Unsnap the front door lock switch (3) from the bezel (4).



Installation Procedure

1. If the door handle bezel was damaged removing the door lock switch, replace the bezel.




2. Snap the front door lock switch (3) into the inside handle bezel (4).
3. Connect the electrical connector.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the inside handle bezel screw.

Tighten the inside handle bezel screw to 2 N.m (18 lb in).
