System Diagram

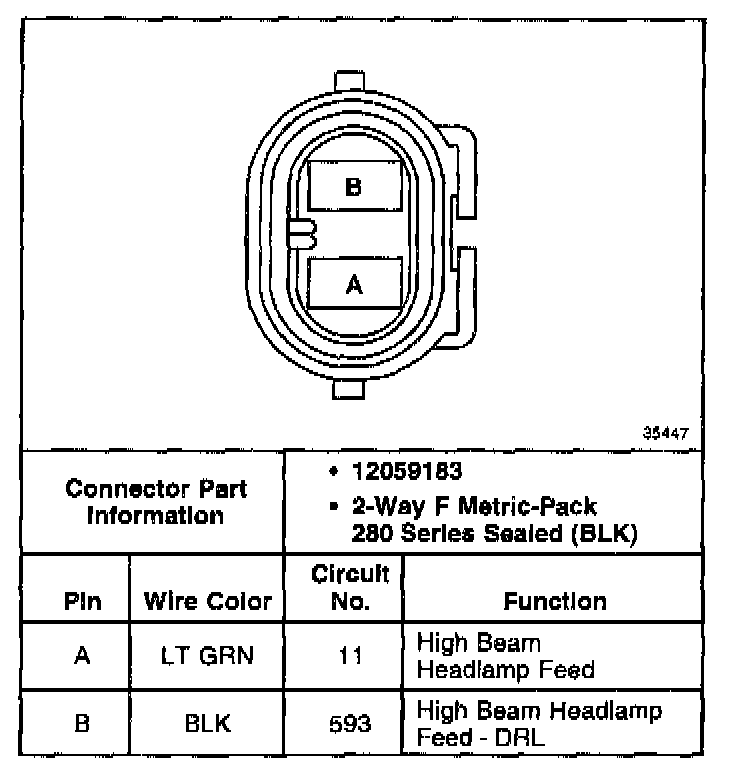

Headlamp (High Beam), Left:

Headlamp (Low Beam), Left:

Headlamp (High Beam), Right:

Headlamp (Low Beam), Right:
