Home >> Chevrolet >> 2001 >> Lumina V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heated Glass Element Relay >> Rear Window Defogger, C2

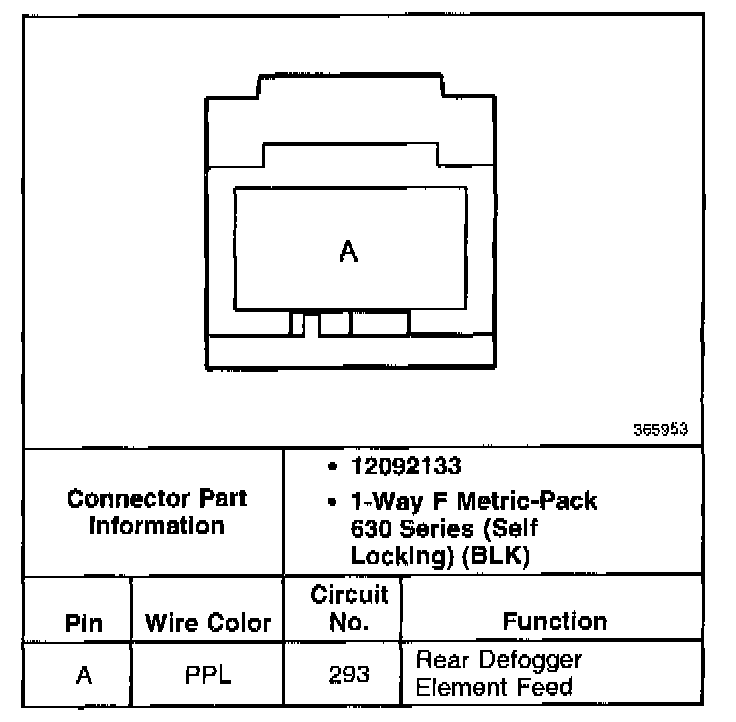

Rear Window Defogger, C2

Rear Window Defogger, C2:
