Internal Components

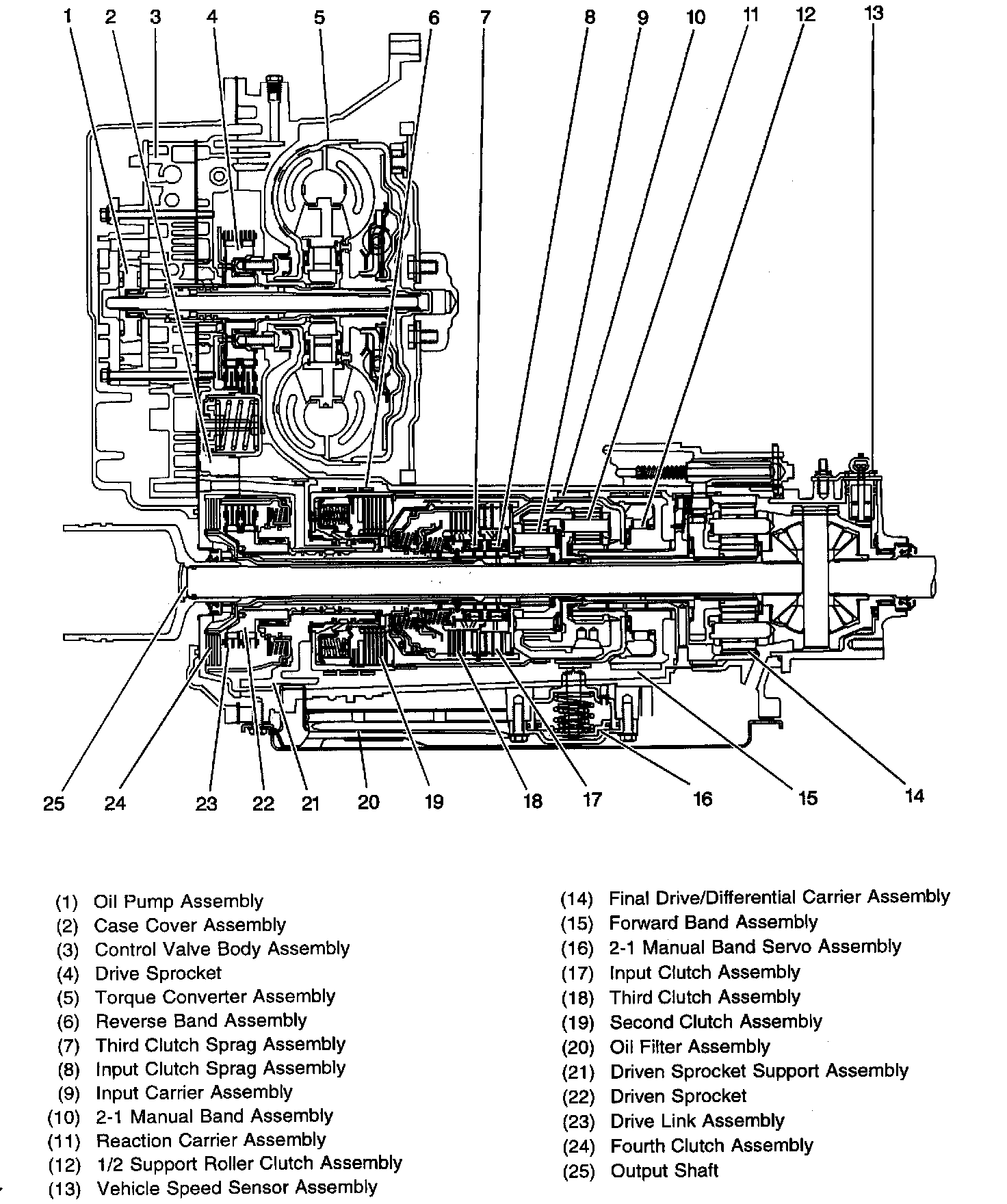

Transmission Major Components

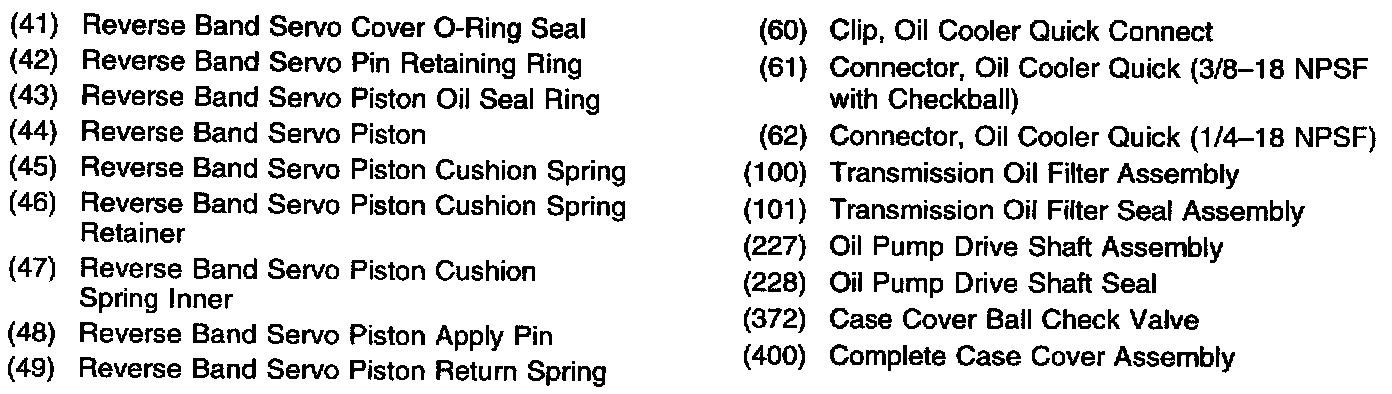

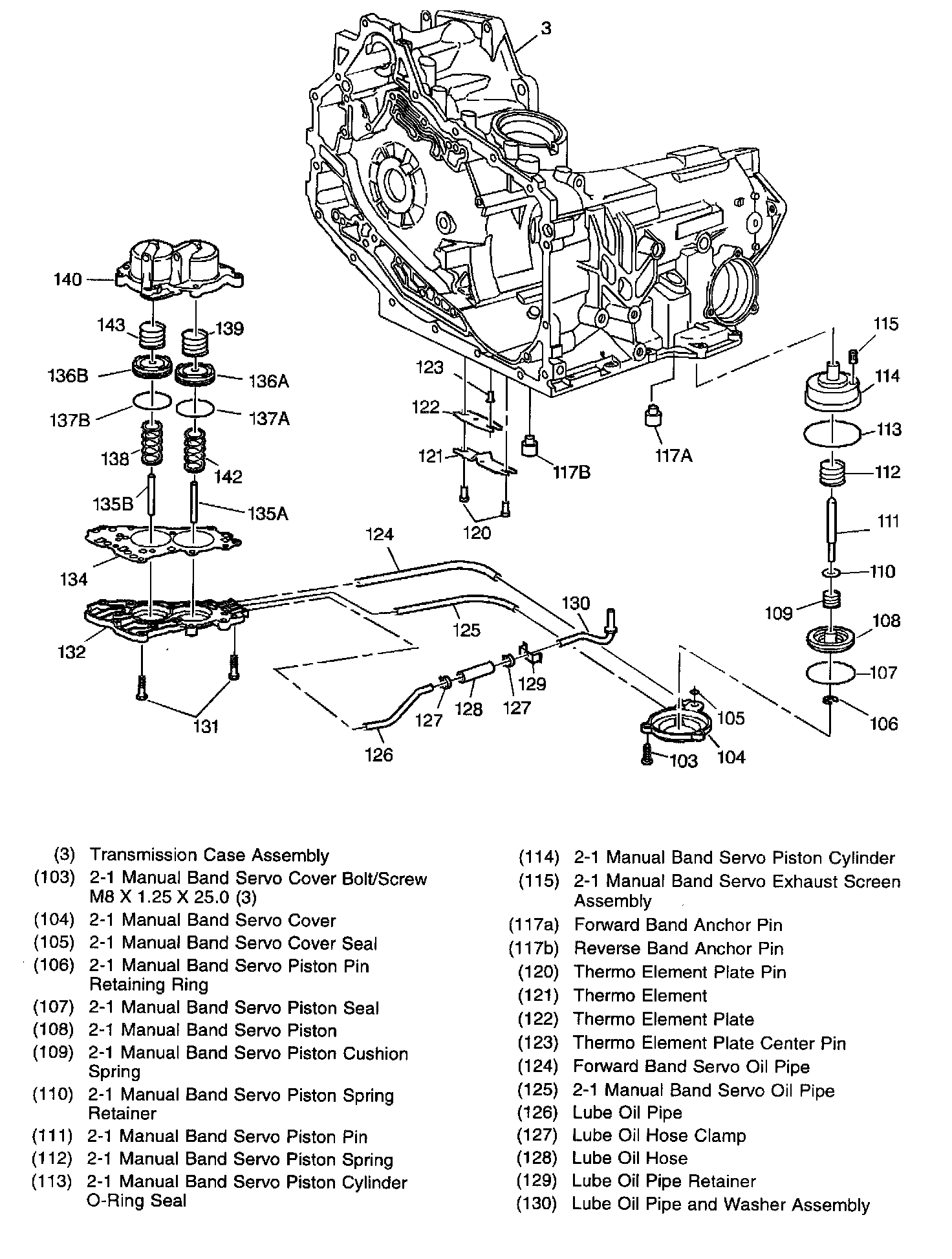

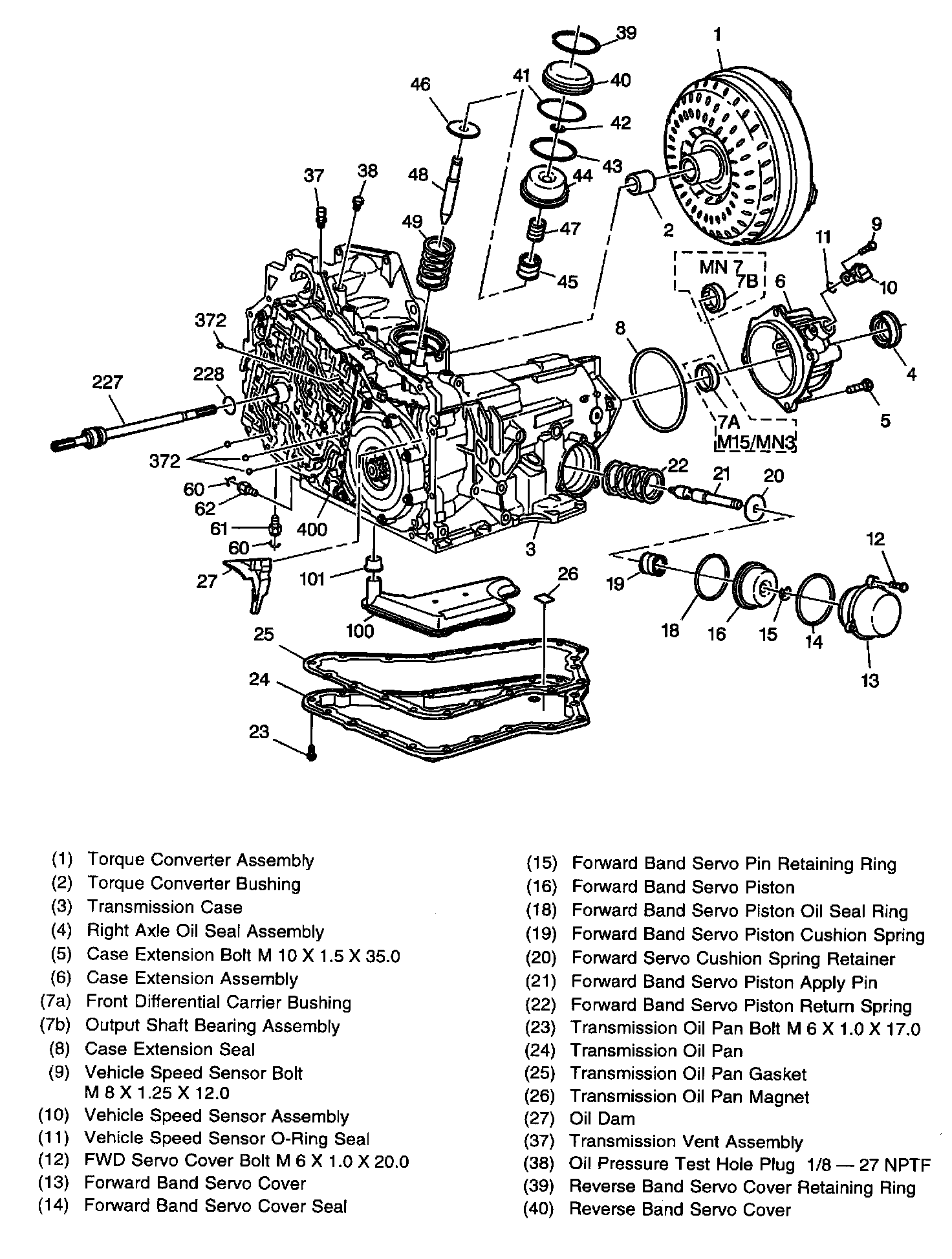

Case and Associated Parts (1 of 4)
Case and Associated Parts (2 of 4)
Case and Associated Parts (3 of 4)
Case and Associated Parts (4 of 4)

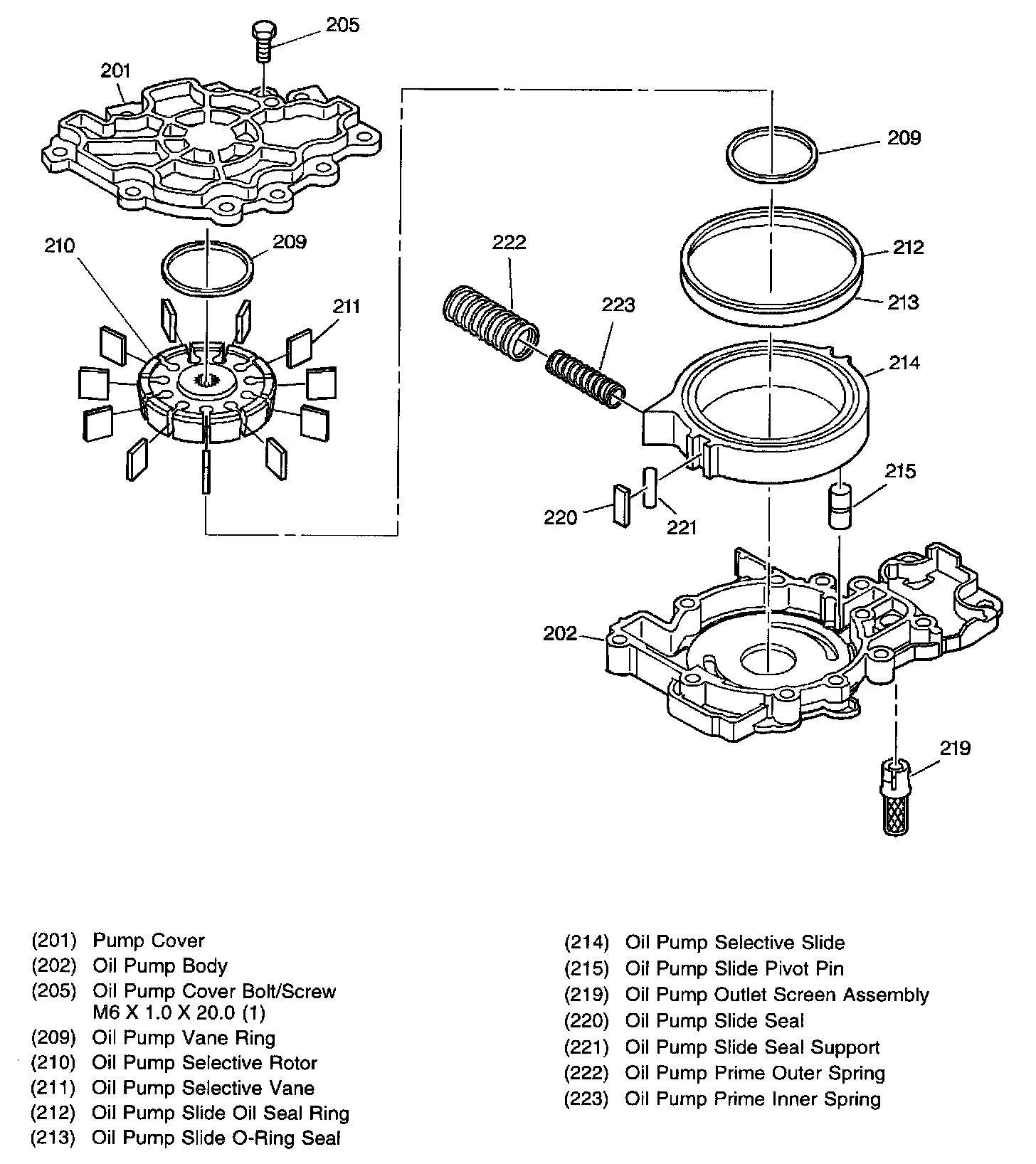

Oil Pump Assembly

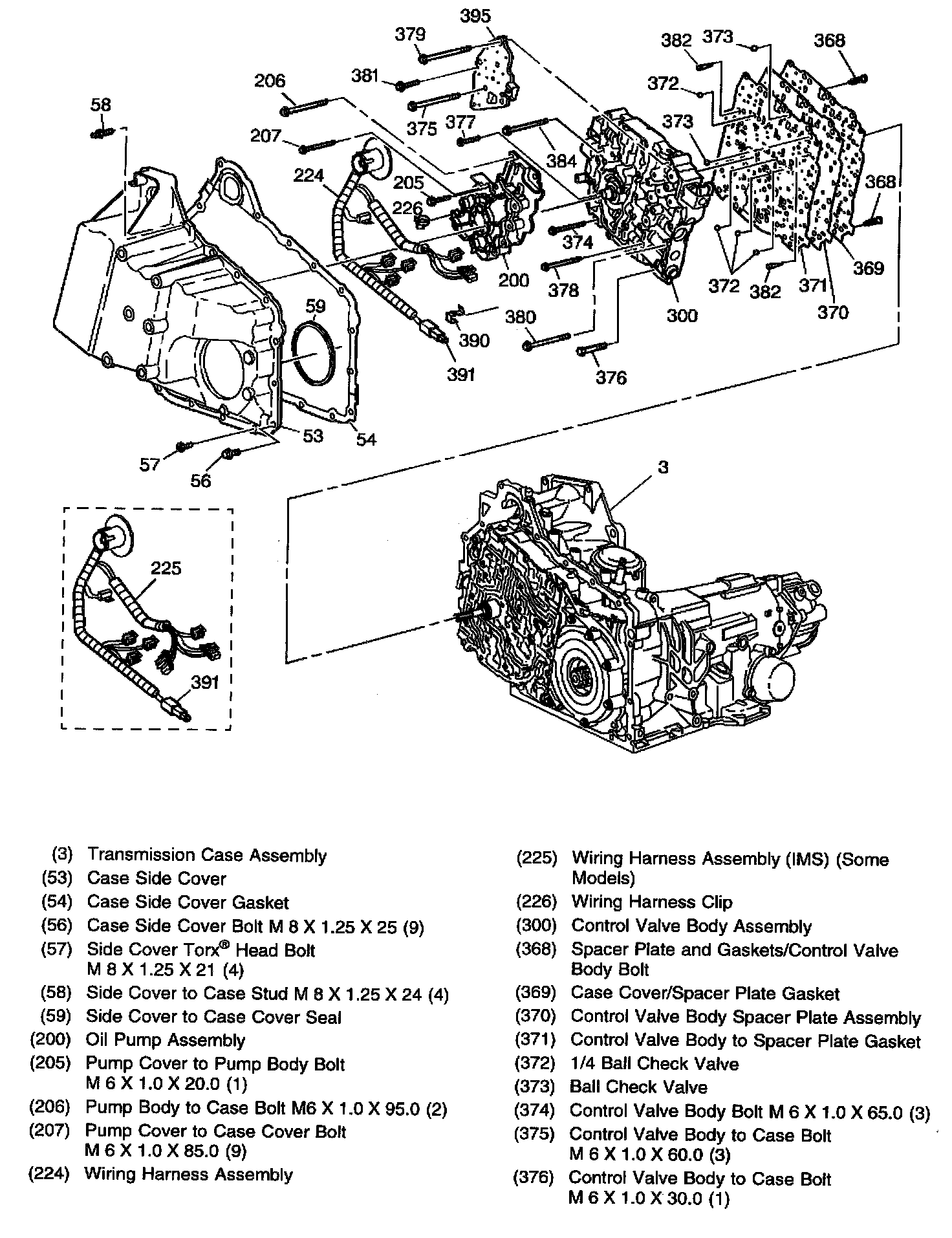

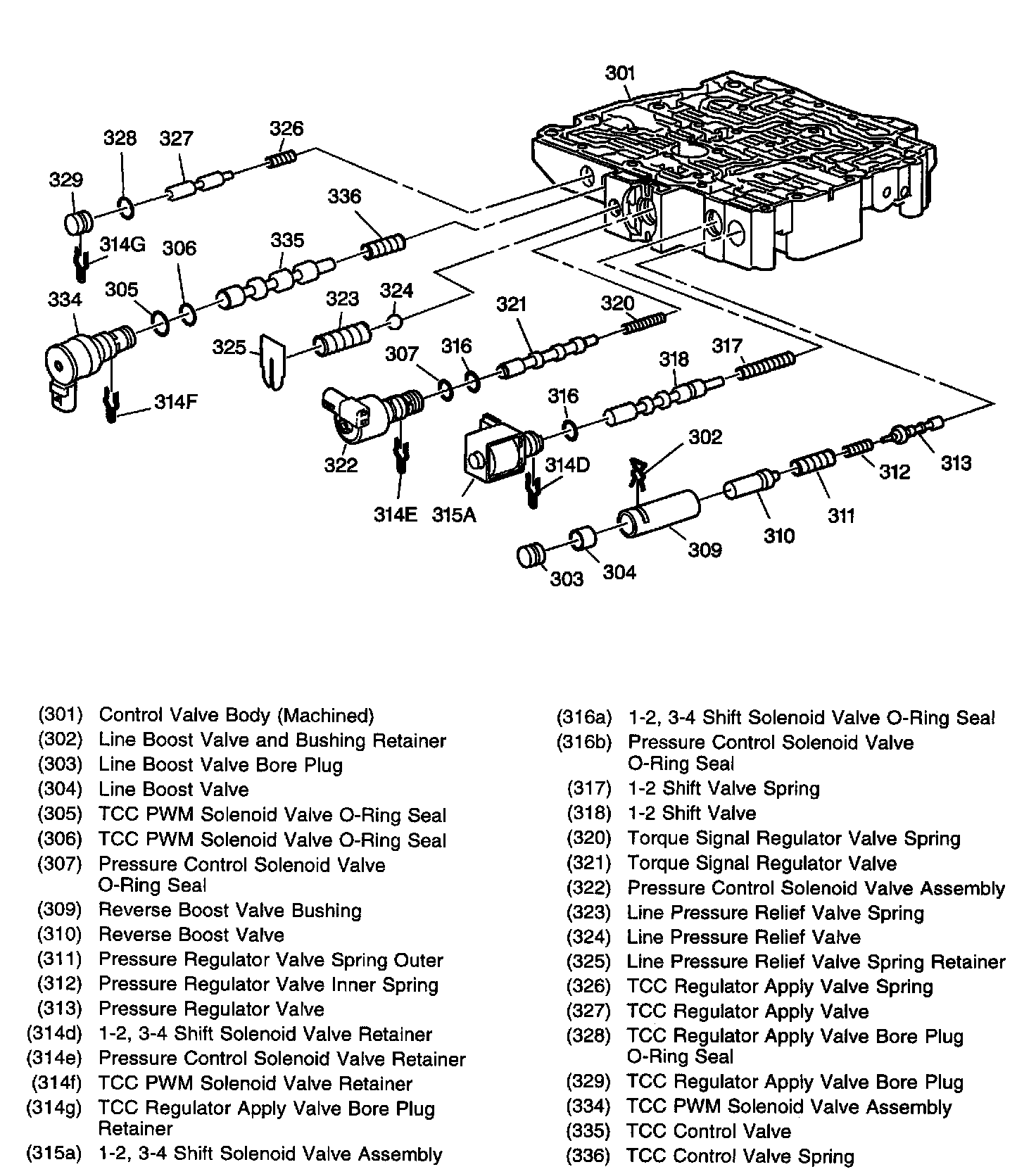

Control Valve Body Assembly (1 of 2)

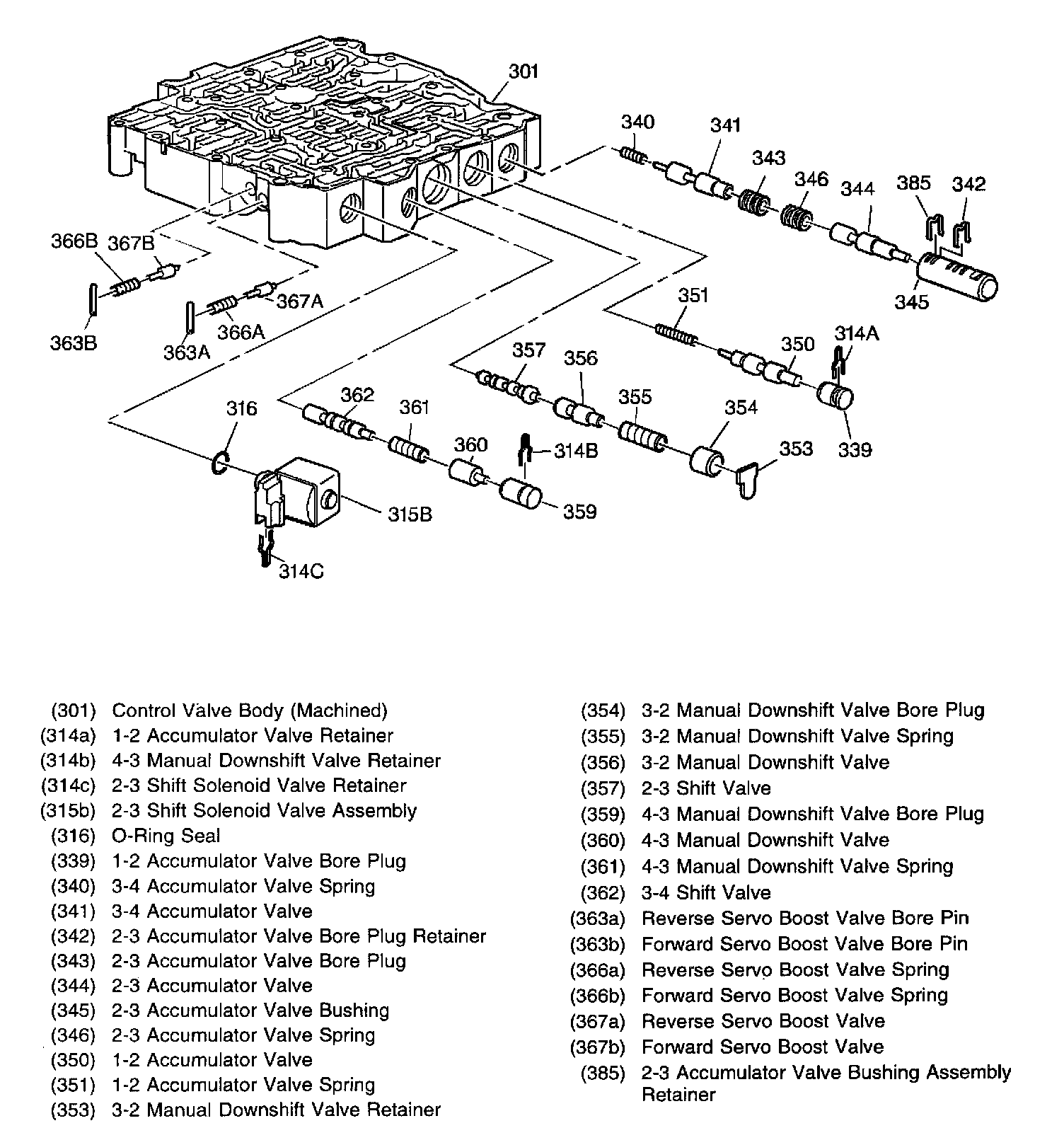

Control Valve Body Assembly (2 of 2)

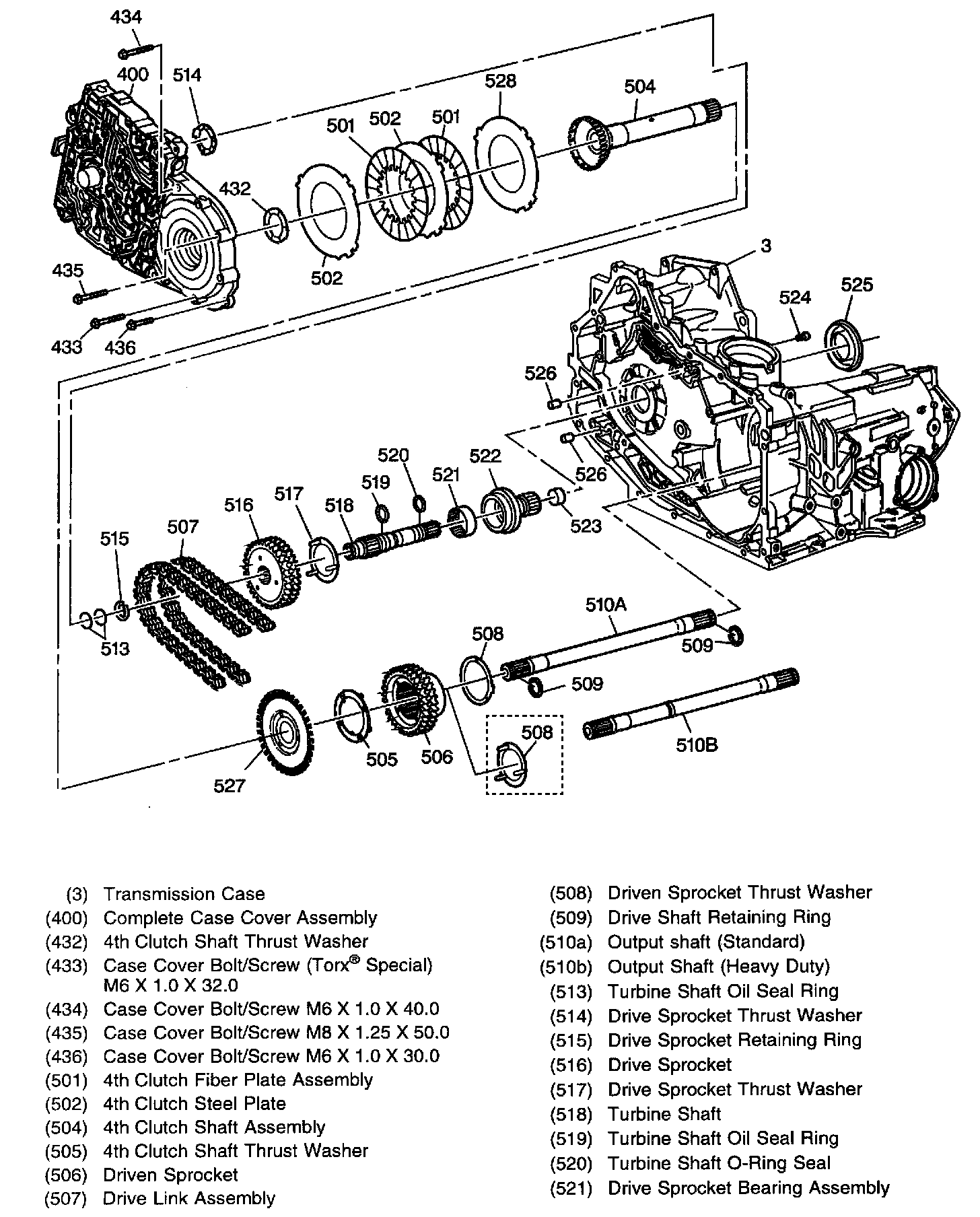

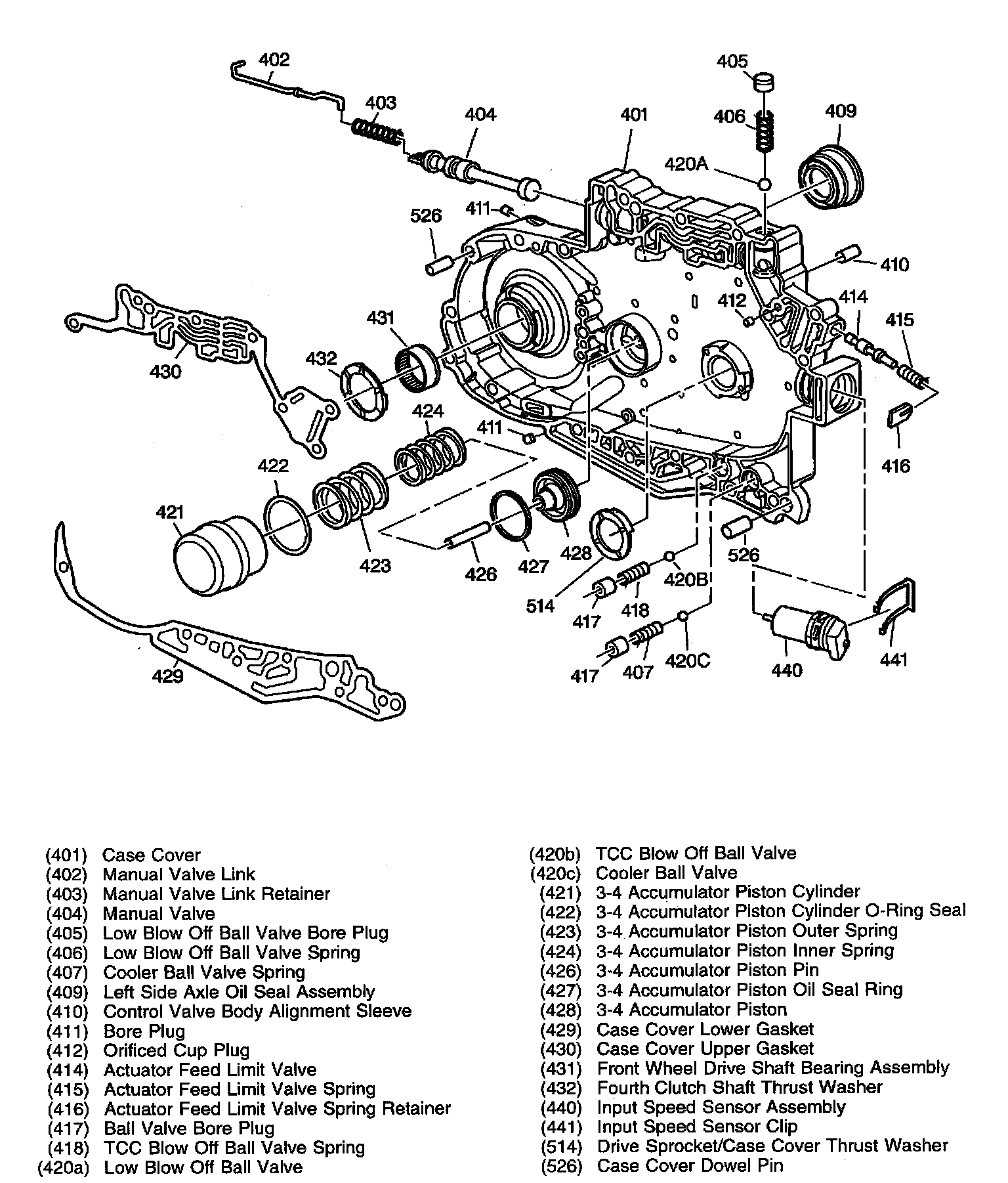

Case Cover Assembly

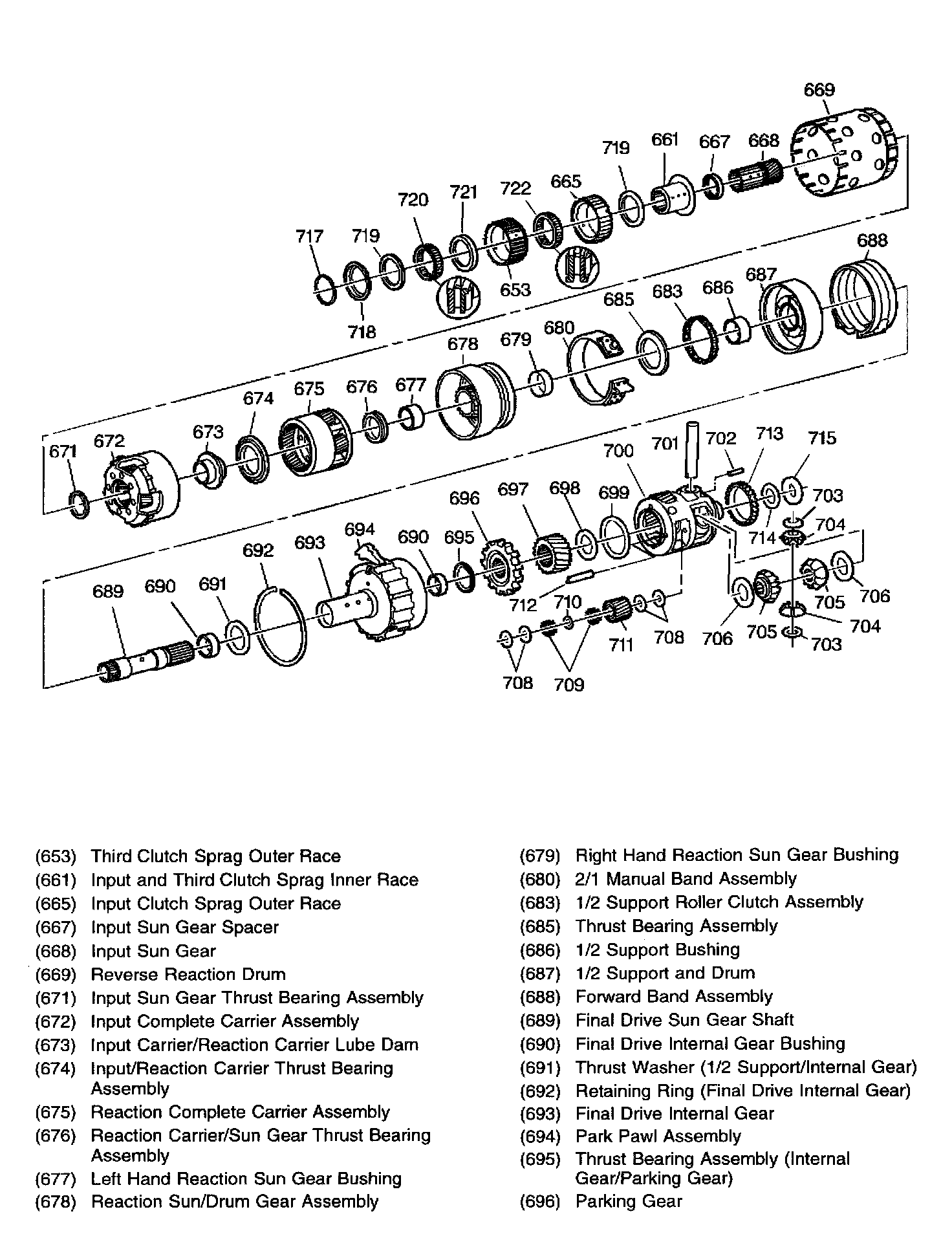

Internal Components {1 Of 2)

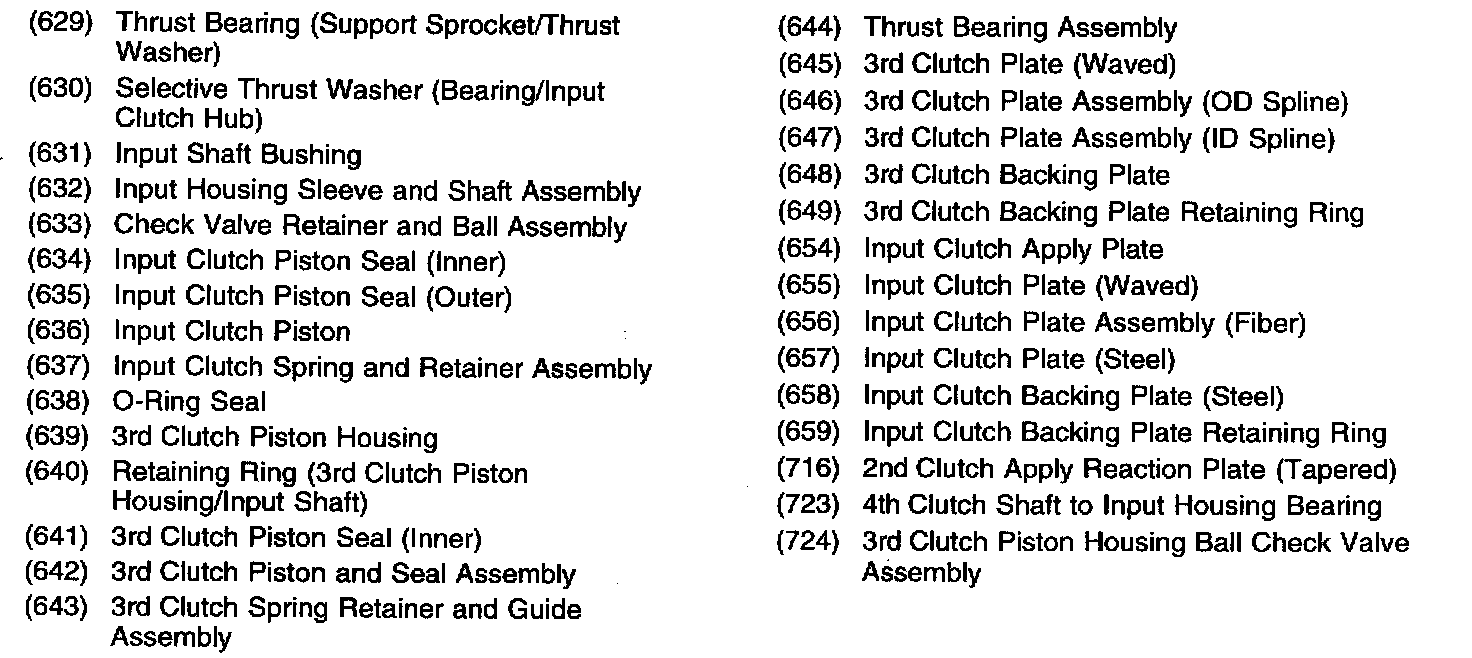

Internal Components (2 of 2)

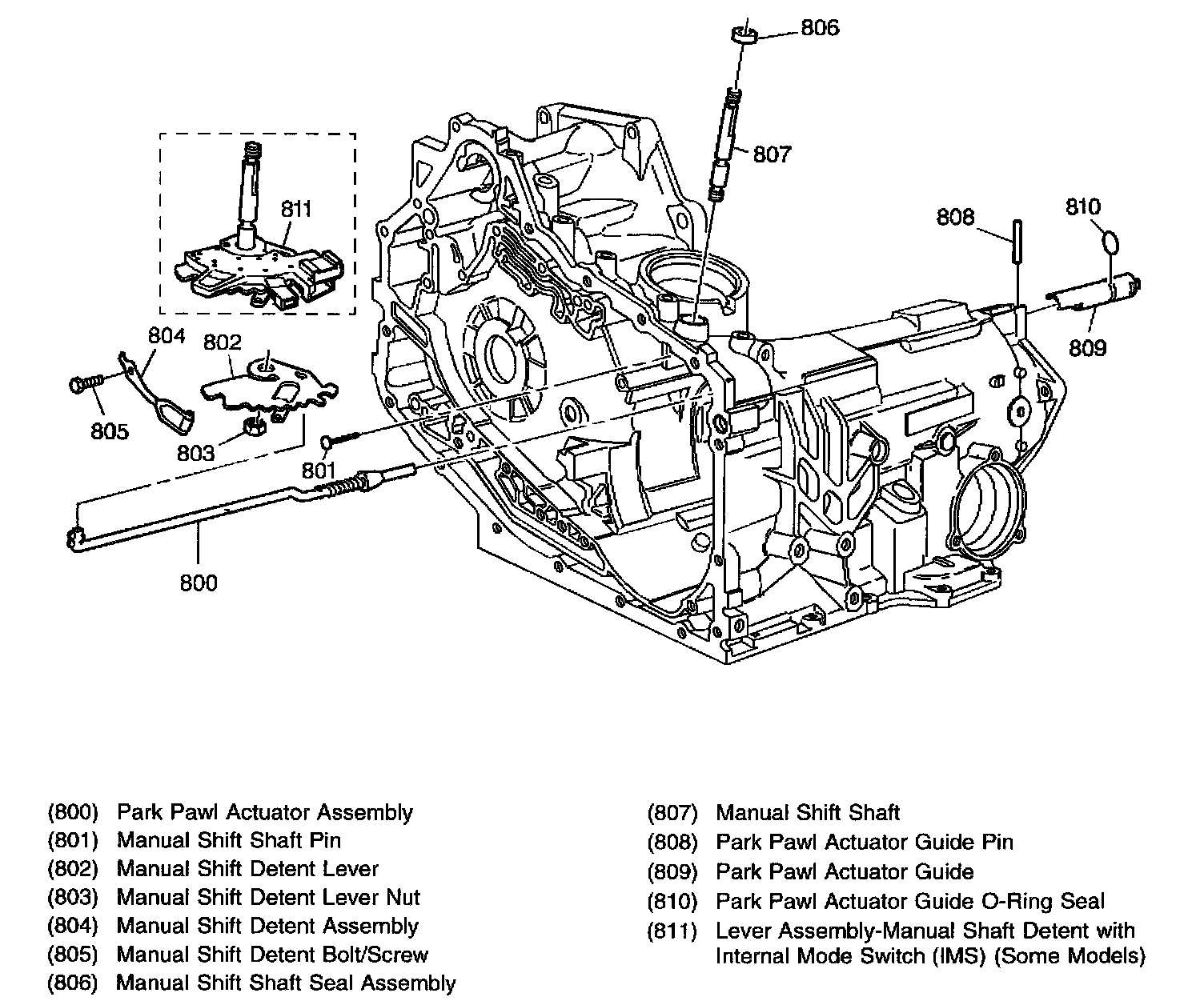

Manual Shaft and Parking System Assembly
