Initial Inspection and Diagnostic Overview
>>

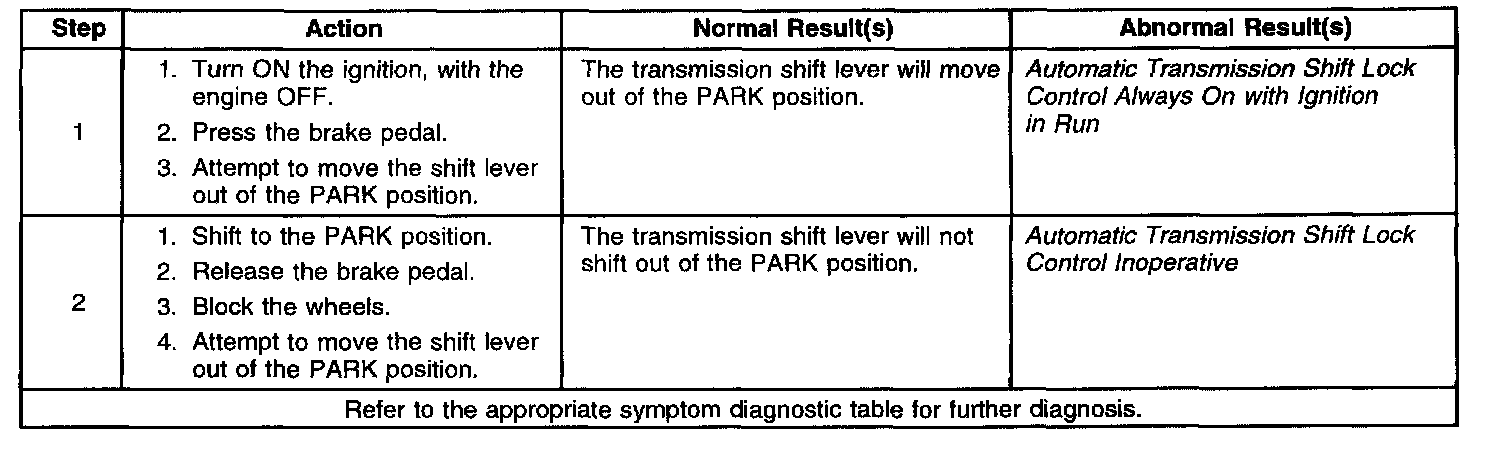

Diagnostic System Check - A/T Shift Lock Control
Diagnostic System Check - A/T Shift Lock Control
Important:
Review the system in order to familiarize yourself with the system.
