Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2001
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry (Without Remote Control Door Lock Receiver)
Keyless Entry (Without Remote Control Door Lock Receiver)

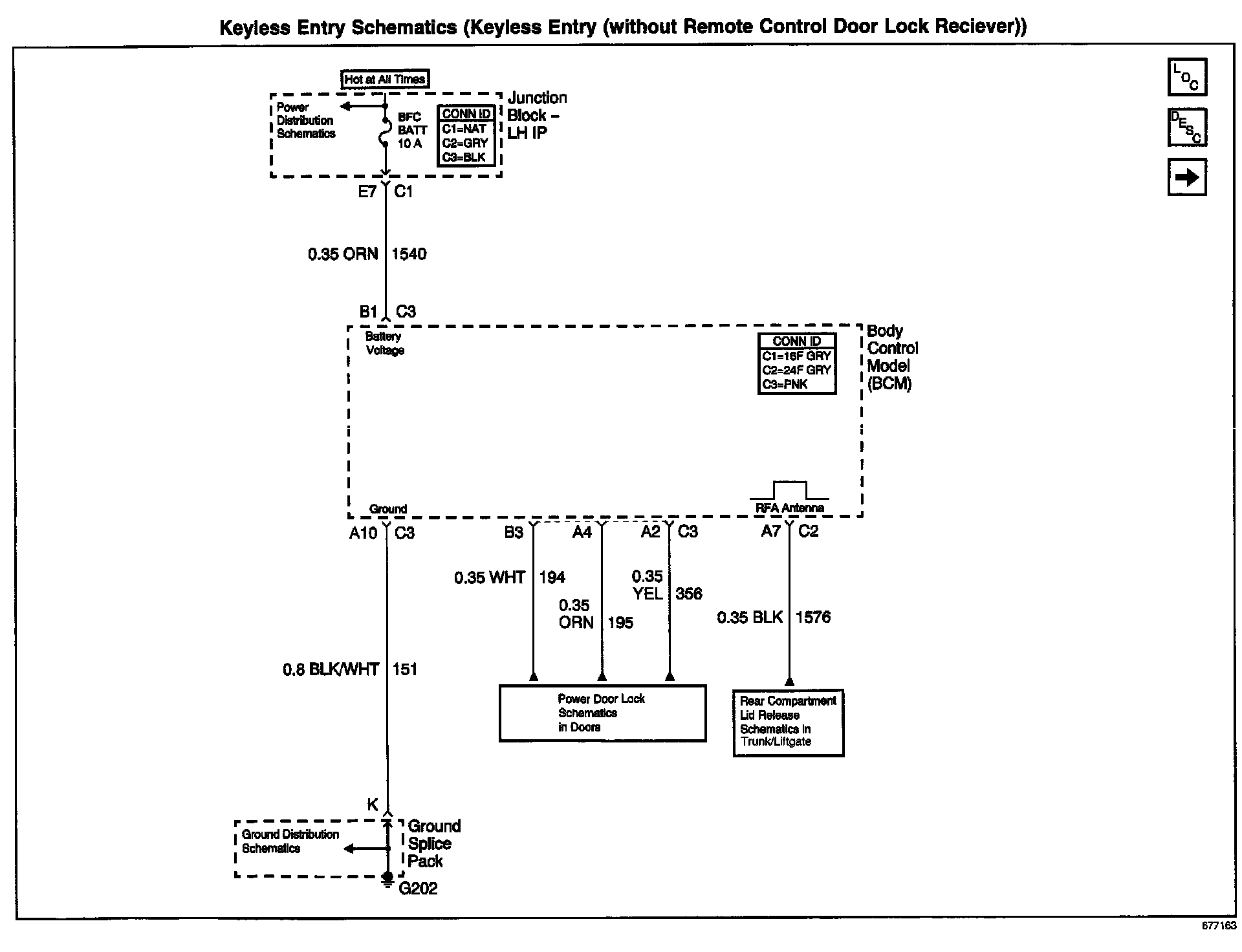

Keyless Entry Schematics: Keyless Entry (Without Remote Control Door Lock Reciever):
