Blower Motor Relay: Service and Repair

BLOWER MOTOR RELAY REPLACEMENT

REMOVAL PROCEDURE

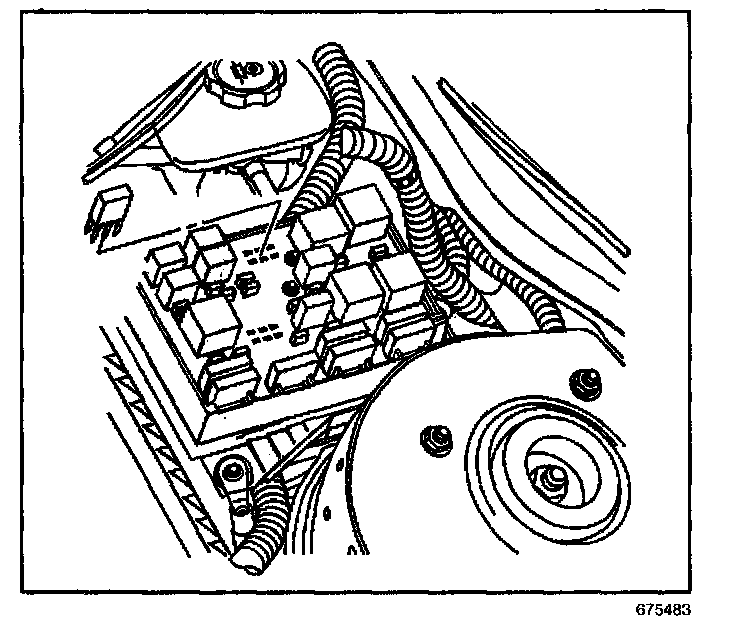

1. Remove the electrical center cover located near the right strut tower.
2. Remove the blower motor control relay from the electrical center.

INSTALLATION PROCEDURE




1. Install the blower control relay to the electrical center.
2. Install the electrical center cover.
