Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

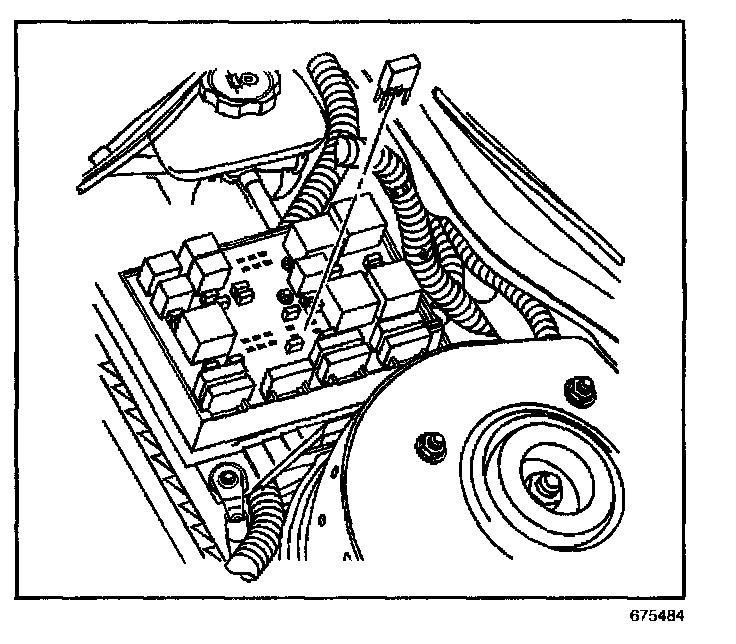

REPAIR PROCEDURE

A/C Compressor Relay:

1. Remove the electrical center cover located near the inside right strut tower.
2. Remove the A/C compressor control relay from the electrical center.

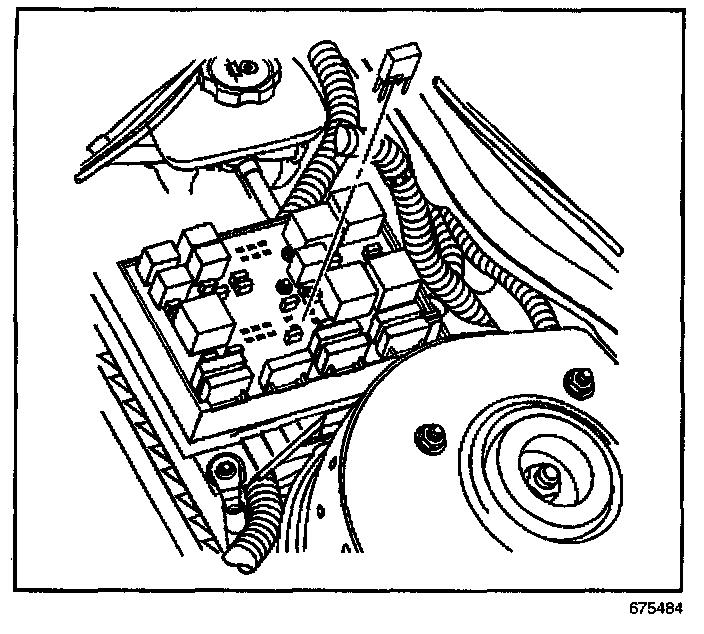

INSTALLATION PROCEDURE




1. Install the A/C compressor control relay to the electrical center.
2. Install the electrical center cover.
