P/S Pressure Hose Replacement

Power Steering Pressure Hose
Replacement

Removal Procedure





1. Remove the drive belt from the vehicle. Refer to Engine.

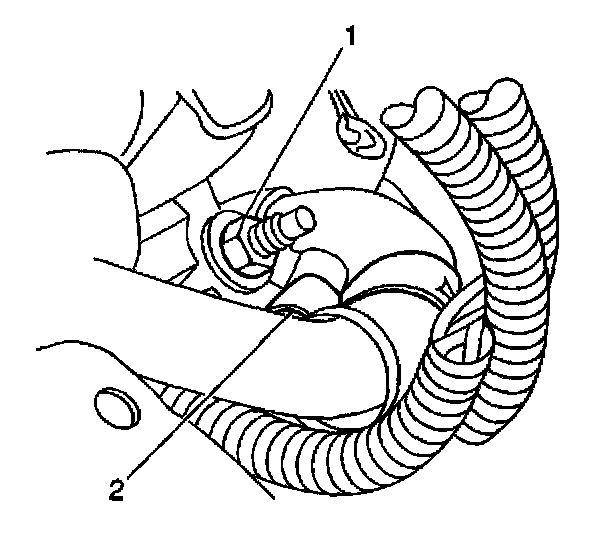

2. Remove the power steering hose retainer nut (1) from the retainer (2).

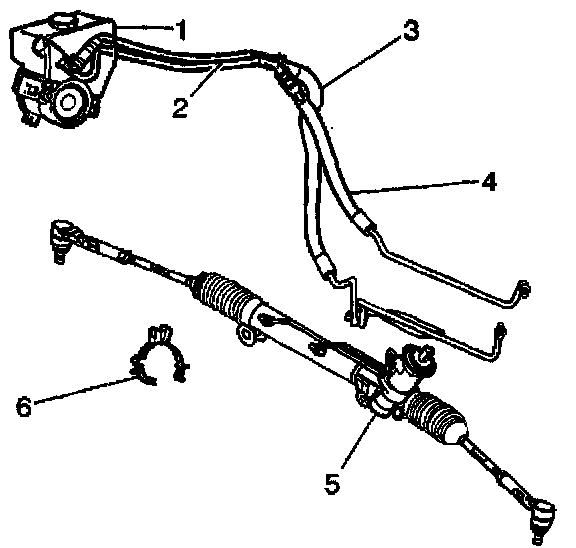

3. Remove the pressure hose (4) from the power steering pump (1).
4. Raise the vehicle on a hoist. Refer to Vehicle Lifting
5. Remove the pressure hose (4) from the retainer (6).
6. Remove the pressure hose (4) from the power steering gear (5).
7. Remove the pressure hose (4) from the vehicle.

Installation Procedure





1. Install the pressure hose (4) to the vehicle.

Notice:
- Refer to Installing Hoses Without Twists or Bends Notice in Service Precautions.
- Refer to Fastener Notice in Service Precautions.

2. Install the pressure hose (4) to the power steering gear (5).
Tighten
Tighten the fitting to 27 Nm (20 ft. lbs.).
3. Install the pressure hose (4) to the retainer (6).
4. Lower the vehicle.

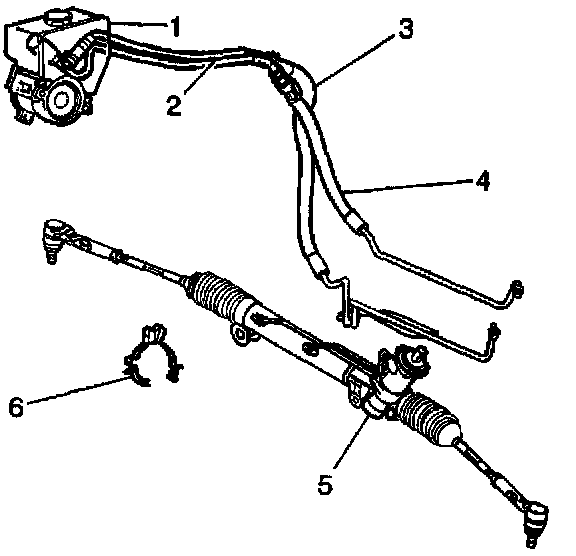

5. Install the pressure hose (4) to the power steering pump (1).
Tighten
Tighten the fitting to 27 Nm (20 ft. lbs.).

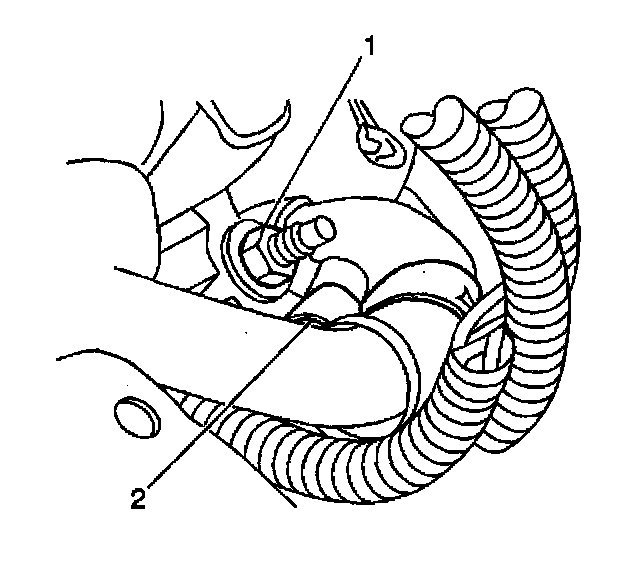

6. Install the power steering hose retainer nut (1).to the retainer (2).
Tighten
Tighten the retainer nut to 5 Nm (45 inch lbs.).
7. Ensure that the power steering hose has sufficient clearance from the exhaust manifold.
8. Install the drive belt to the power steering pump pulley. Refer to Engine.
9. Bleed the air from the power steering system.
