Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Junction Block Right IP, C2
Junction Block Right IP, C2

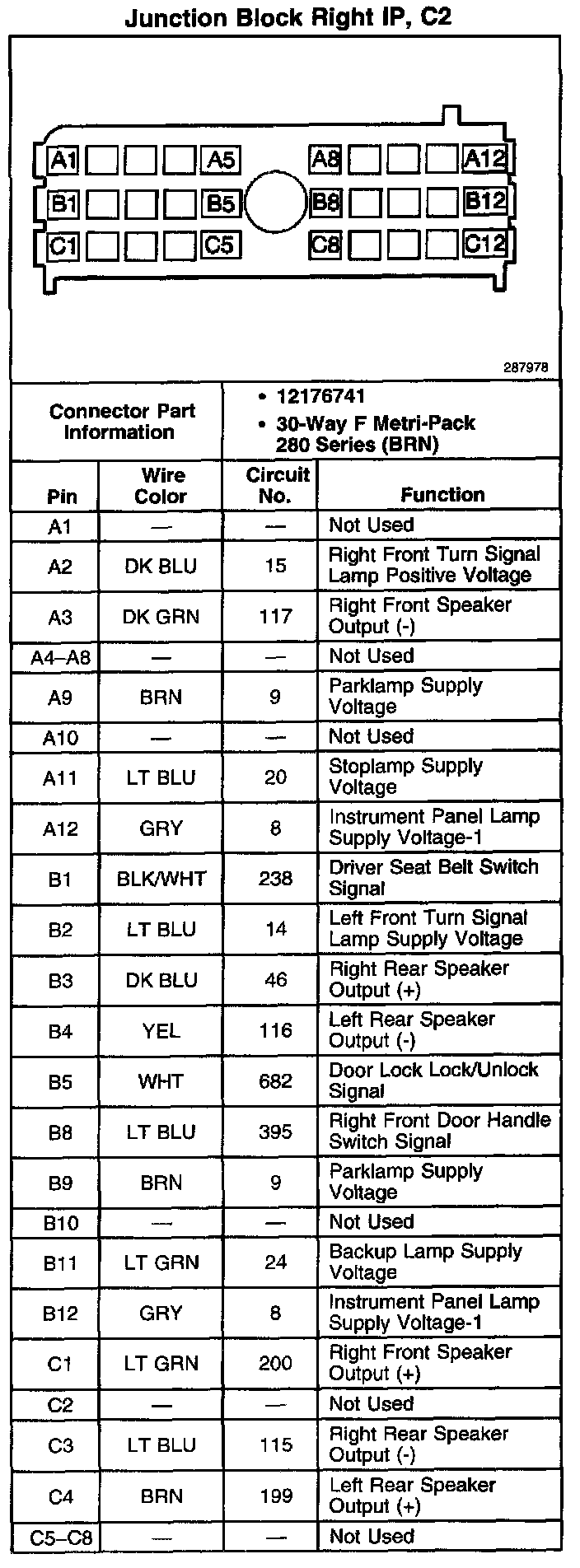

Junction Block Right IP, C2 (Part 1 Of 2):
Junction Block Right IP, C2 (Part 2 Of 2):
