Junction Block Right IP, C3
Junction Block Right IP, C3

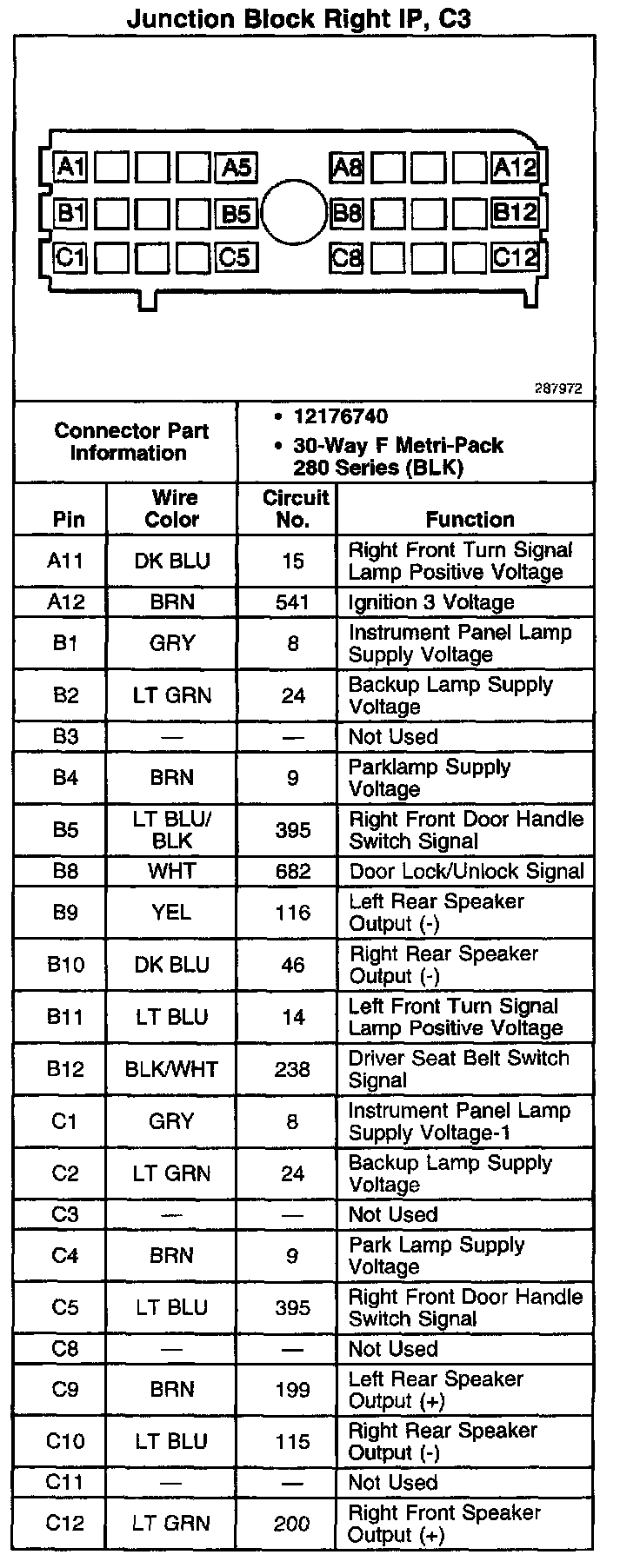

Junction Block Right IP, C3 (Part 1 Of 2):
Junction Block Right IP, C3 (Part 2 Of 2):
