Engine Cranks But Does Not Run

Engine Cranks But Does Not Run

Description

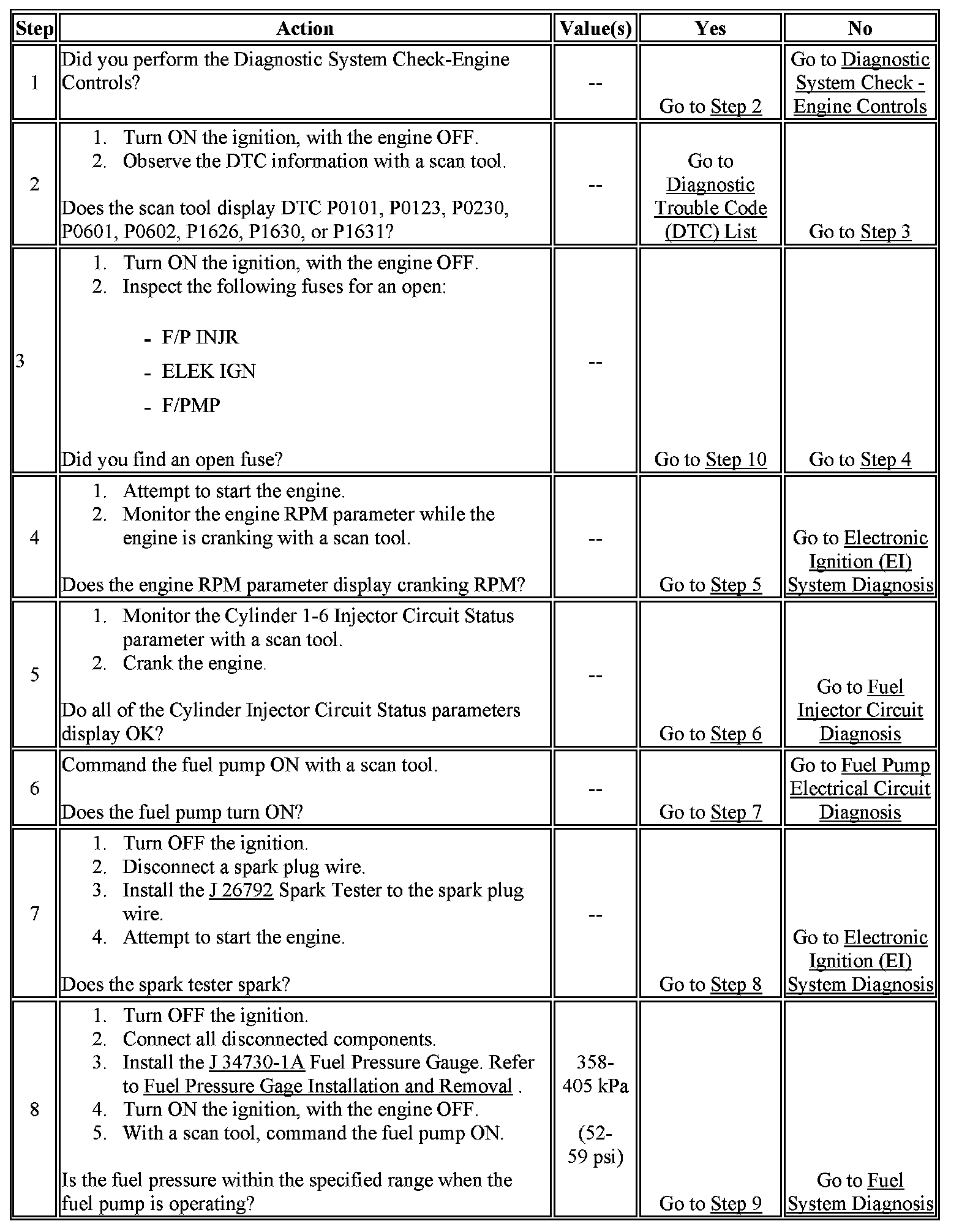

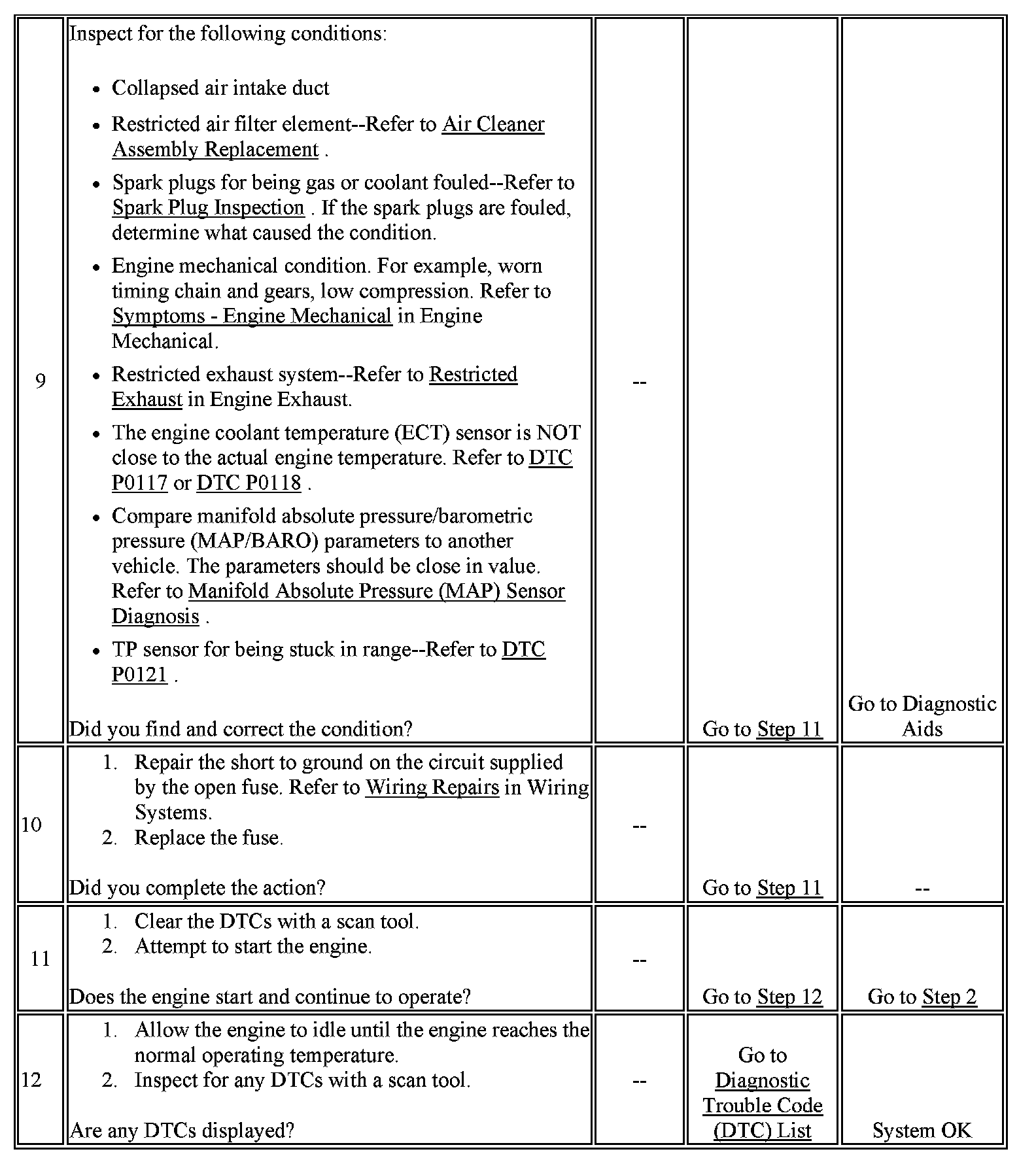

The Engine Cranks but Does Not Run diagnostic table is an organized approach to identifying a condition that prevents an engine from starting. The Engine Cranks But Does Not Run diagnostic table directs the service technician to the appropriate system diagnosis.

The Engine Cranks but Does Not Run diagnostic table assumes the following:

- The battery is completely charged.
- The engine cranking speed is within specifications.
- There is adequate fuel in the fuel tank.

Diagnostic Aids

Inspect for the following conditions:

- Mass air flow (MAF) is compared to a calculated mass air flow based upon the manifold absolute pressure (MAP), throttle position (TP), and engine RPM readings. A skewed or unresponsive MAP sensor at KEY ON will cause the predicted air flow value to be inaccurate. Compare MAP and TP sensor value to that of a known good vehicle.
- A faulty engine coolant temperature (ECT) sensor. Compare the ECT with intake air temperature (IAT) on a completely cool engine with a scan tool. The ECT should be within 3°C (5°F) of the IAT.
- For an intermittent condition.
