Air Outlet Replacement - Side Window

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) carrier.

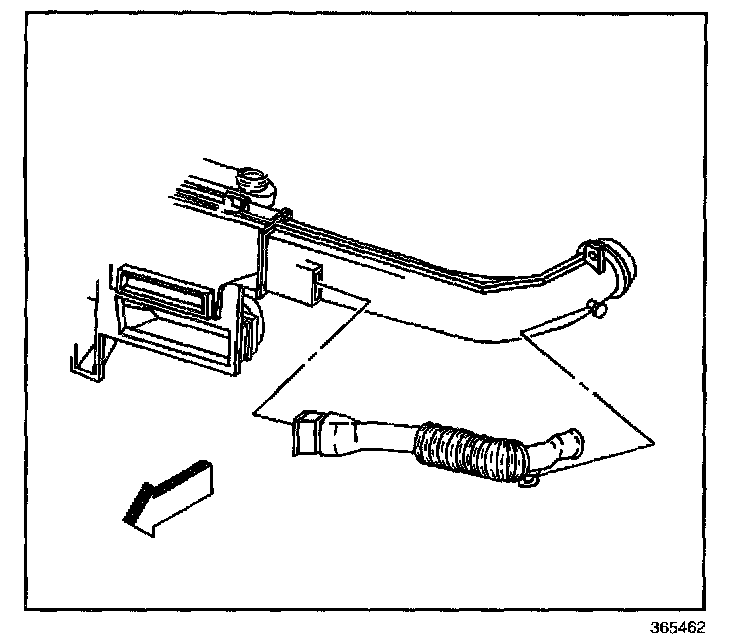

2. Remove the side window defogger outlet duct from the air distributor.

INSTALLATION PROCEDURE

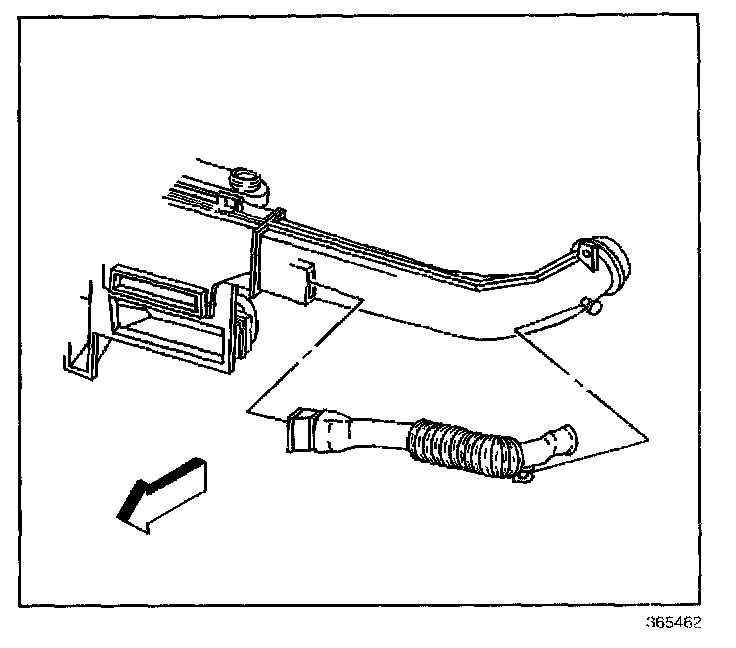

1. Install the side window defogger outlet duct to the air distributor.
2. Install the IP carrier.
