Exhaust Gas Recirculation (EGR) Inlet Pipe Replacement

REMOVAL PROCEDURE




1. Remove the EGR valve.
2. Remove the EGR valve outlet pipe.

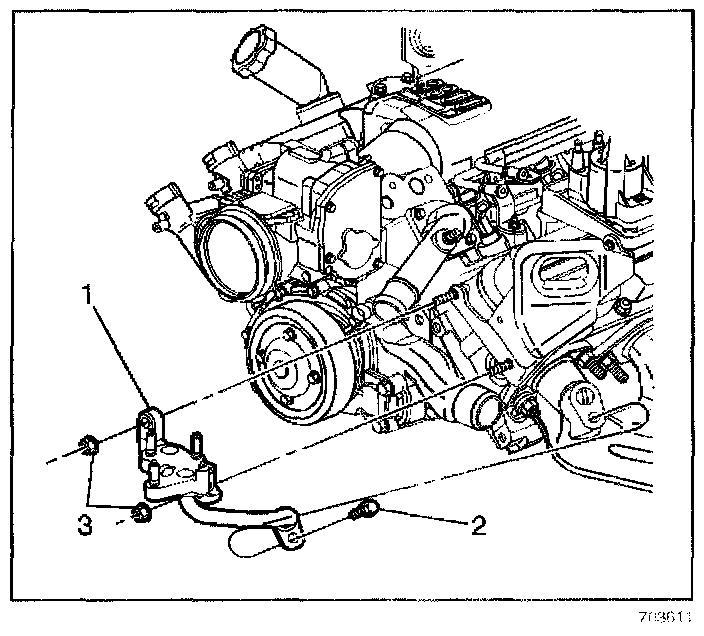

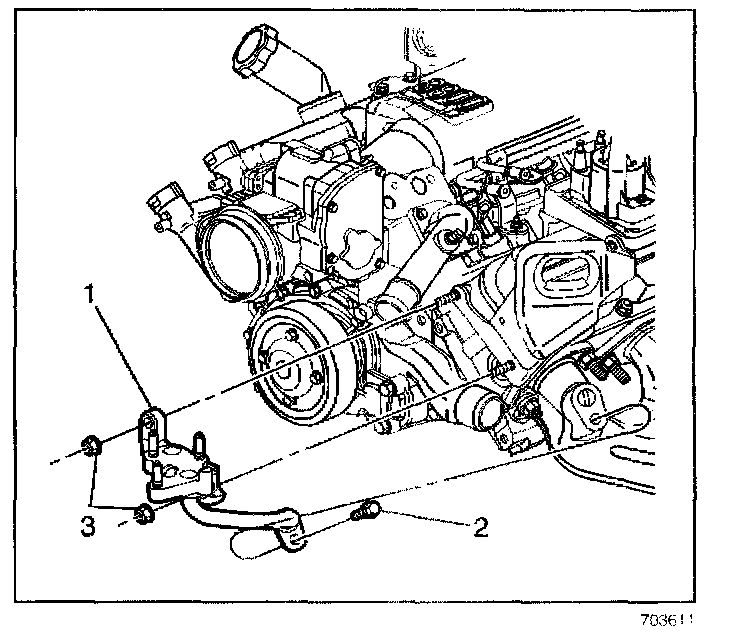

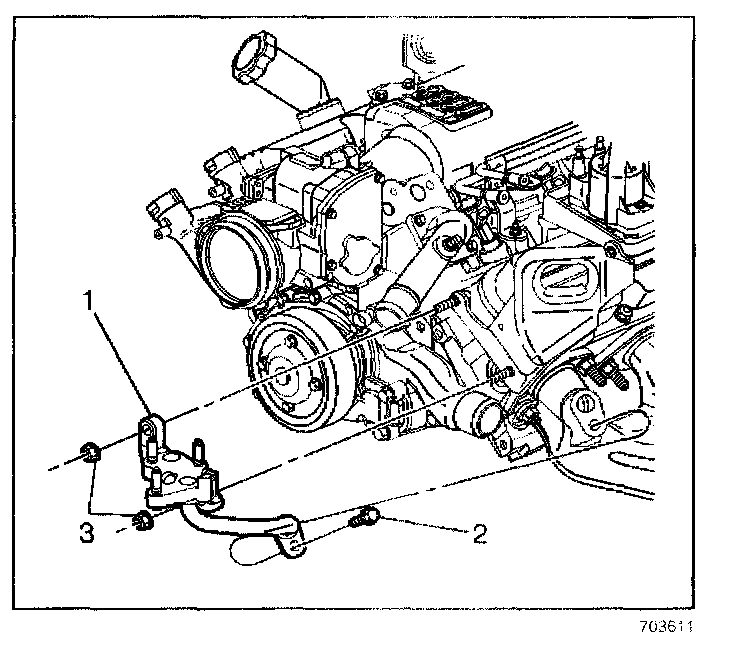

3. Remove the EGR valve adapter pipe mounting bolt (2) from the exhaust manifold.




4. Remove the retaining nuts (3) from the EGR valve adapter pipe assembly (1).
5. Remove the EGR valve adapter pipe assembly (1).

INSTALLATION PROCEDURE




1. Install the EGR valve adapter pipe assembly (1).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining nuts (3) to the EGR valve adapter pipe assembly (1).

Tighten
Tighten the nuts to 50 N.m (37 lb ft).




3. Install the EGR valve adapter pipe bolt (2) to the exhaust manifold.

Tighten
Tighten the bolt to 25 N.m (18 lb in).

4. Install the EGR valve outlet pipe.
5. Install the EGR valve.
