Child Restraint Tether Anchor Replacement

REMOVAL PROCEDURE

CAUTION: The seat belt assembly and/or bracket assembly must be replaced as a unit only. Do not substitute parts for any reason, or personal injury could result.

IMPORTANT: Replace the anchor bracket if the anchor bracket is damaged.

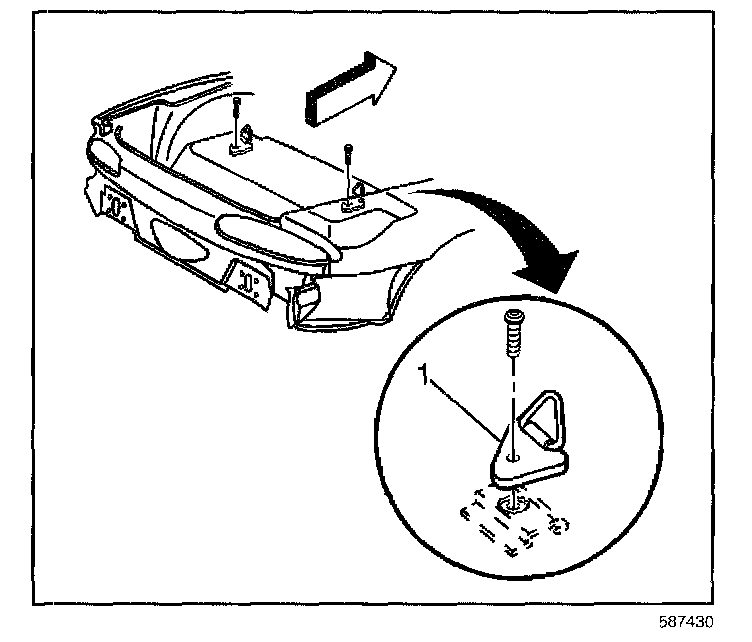

1. Remove the bolts.
2. Remove the anchor bracket (1).

INSTALLATION PROCEDURE

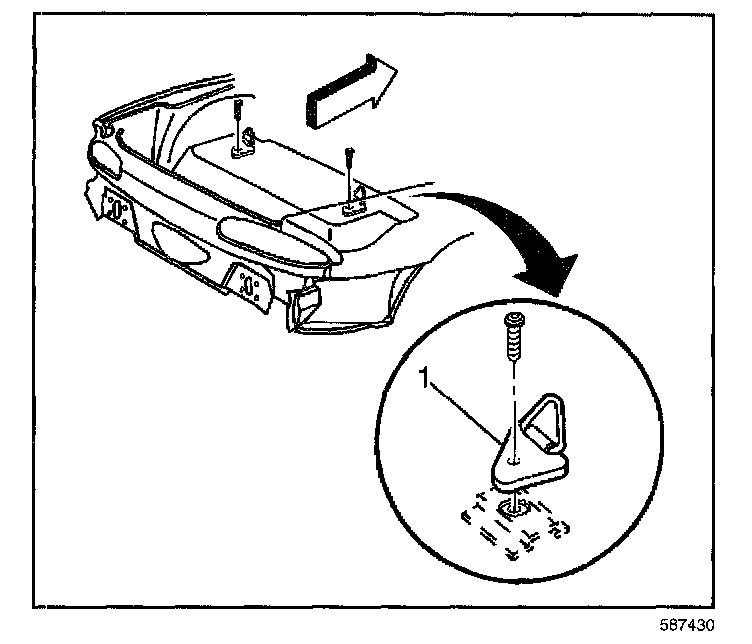

1. Connect the anchor bracket (1) to the anchor bracket mounting plate.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: DO NOT use a nut driver to tighten this hardware or the fasteners will not be properly seated.

2. Install the bolts.

Tighten
Tighten the bolts to 42 N.m (31 lb ft).
