Air Distribution Duct Replacement (RH)

REMOVAL PROCEDURE
1. Remove the IP lower trim panel.
2. Reposition the right IP fuse junction block.

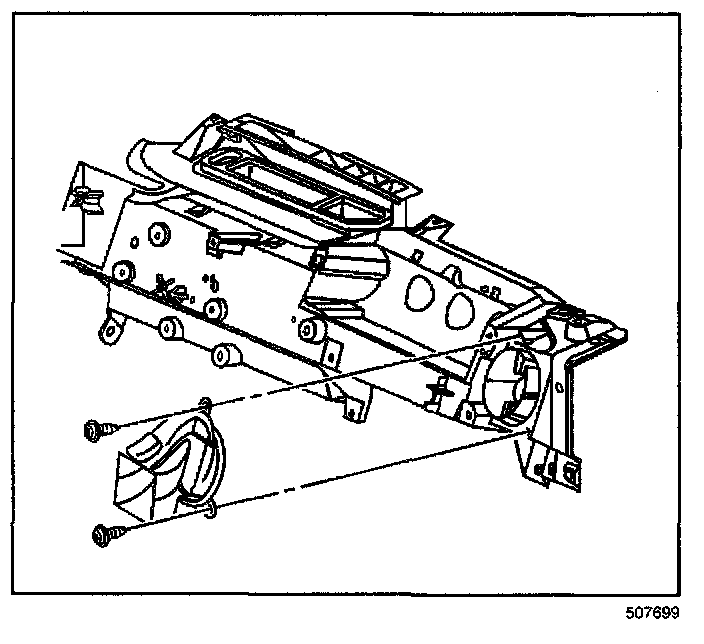

3. Remove the retaining bolts from the right air duct.
4. Remove the right air duct from the cross vehicle beam.

INSTALLATION PROCEDURE

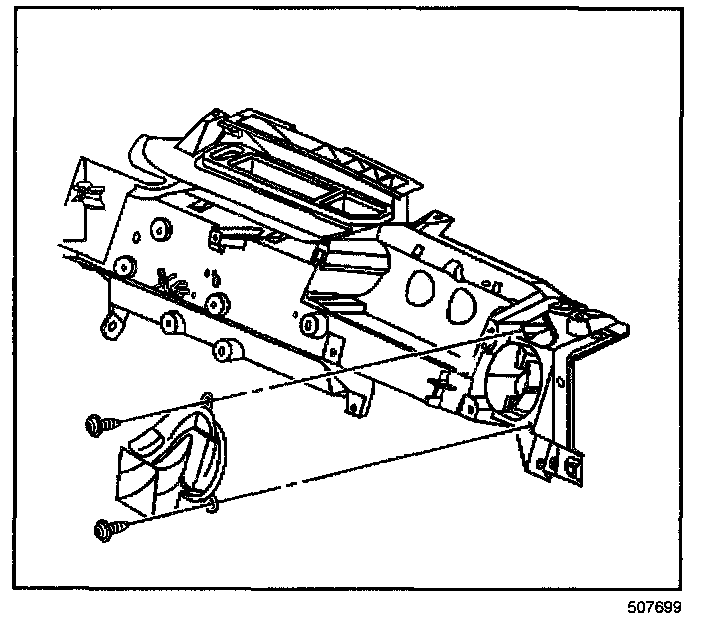

1. Install the right air duct to the cross vehicle beam.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the right air duct bolts.

Tighten
Tighten the bolts to 10 N.m (89 lb in).

3. Install the right IP fuse junction block.
4. Install the IP lower trim panel.
