Chevrolet
>>
2004
>>
Aveo L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Audible Warning Device
Audible Warning Device

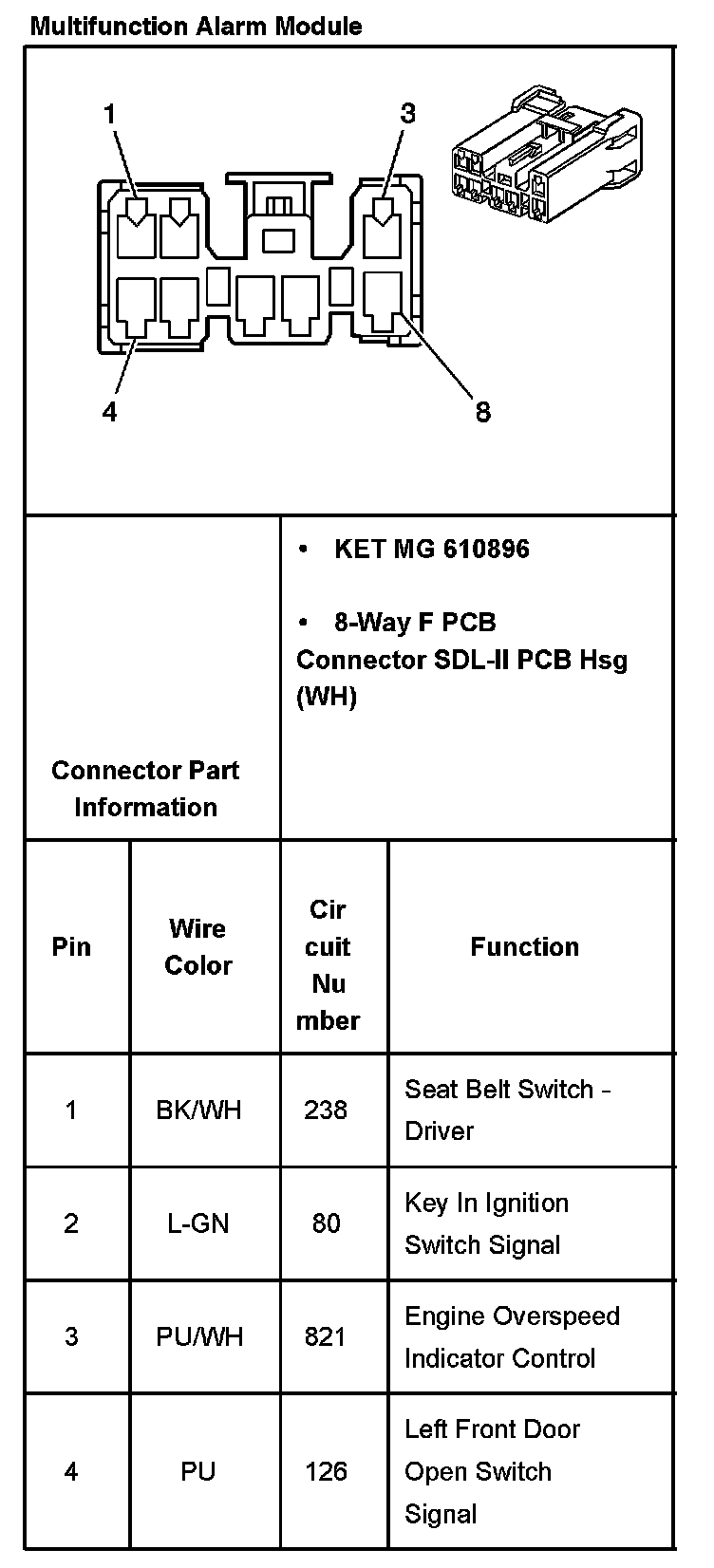

Multifunction Alarm Module Part 1:

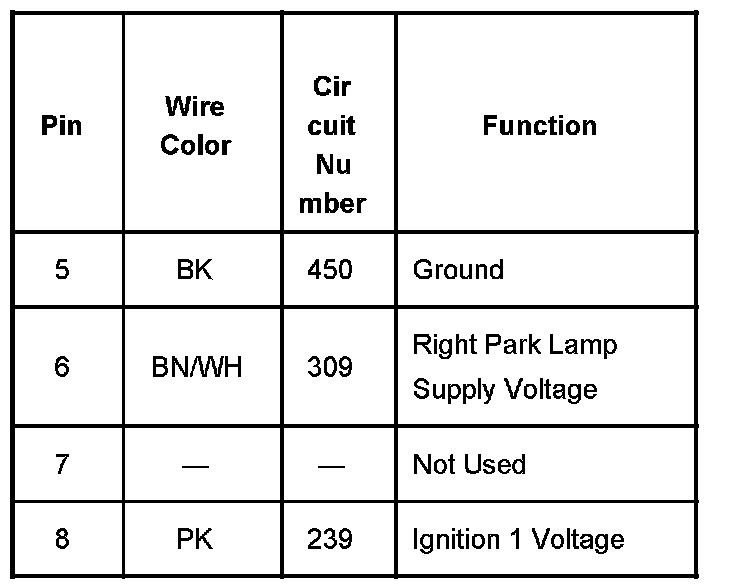

Multifunction Alarm Module Part 2:
